Teixn brand Voltage Controlled Oscillator VCO chip SM150 10dbm 5V Voltage Control Unit
Teixn brand Voltage Controlled Oscillator VCO chip SM150 10dbm 5V Voltage Control Unit
Specifications
Brand Name :
TeXin
Model Number :
SM150
Certification :
SGS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T,Paypal,L/C,D/A,D/P,etc.
Supply Ability :
5000pcs/month
Delivery Time :
3 days
Packaging Details :
Box with PE Foam
Product :
VCO chip
Working voltage :
5V
Operating temperature range :
-40°C~+85°C
Current consumption(Icc) :
25mA
Application :
Goverment, Speech center, Church, meeting room, etc.
Description

Teixn brand Voltage Controlled Oscillator(VCO) SM150 10dbm 5V operate

Model: SM150

Description
The VCO (Voltage Control Unit) is an indispensable component of an RF module, its main function being to up-convert (transmit) and down-convert (receive) RF signals. It is primarily used in base stations, mobile communications, and other RF equipment.

Performance characteristics

-Low noise;

-High frequency stability;

-Low voltage operation: +3.3 +5V;

-Operating temperature range: -40°C~+85°C;

-Small size.

ParameterMiniTypicalMaxunitRemark
Working voltage (Vcc)4.755.05.25Vdc
Output Level 10 dBmVcc = 5.0 V
Current consumption(Icc)--25 mA
Tuning sensitivity (average)10----MHz/VVt = 0.5~4.5 V
Tuning voltage (Vt)0.5--4.5Vdc
Phase noise/carrier@1KHzOffset---65 dBc/HzVcc = 5.0 V, Vt = 2.5 V
@10KHzOffset---92 dBc/HzVcc = 5.0 V, Vt = 2.5 V
@100KHzOffset---120 dBc/HzVcc = 5.0 V, Vt = 2.5 V
@1MHzOffset---130 dBc/HzVcc = 5.0 V, Vt = 2.5 V
Oscillation frequency

--

175

--

--

135

--

MHz

Vcc = 5.0 V, Vt = 0.5 V
Vcc = 5.0 V, Vt = 4.5 V

Tuning terminal capacitance--56--pF
Second Harmonic-----15dBc
Load impedance--50--Ω
Operating temperature-40--+85°C

OrderExplanation

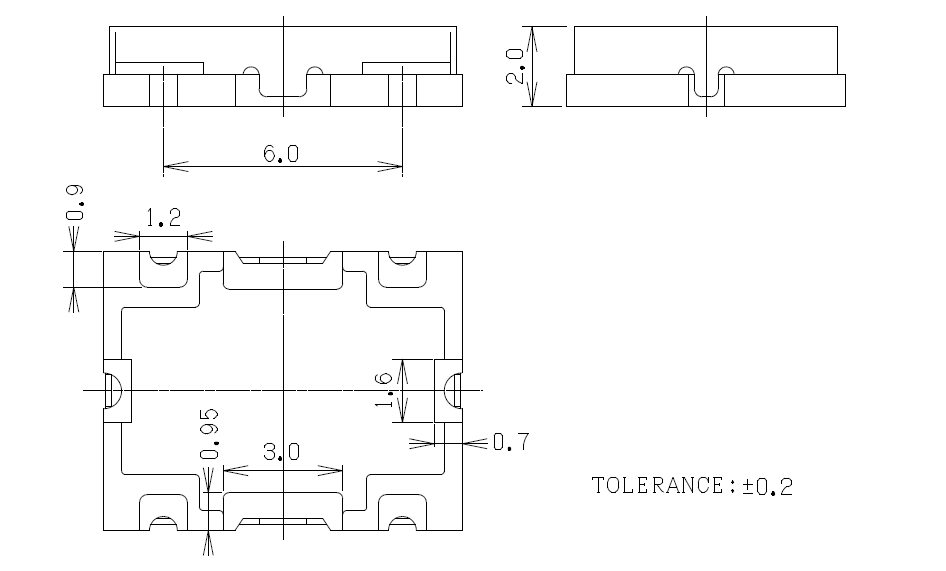

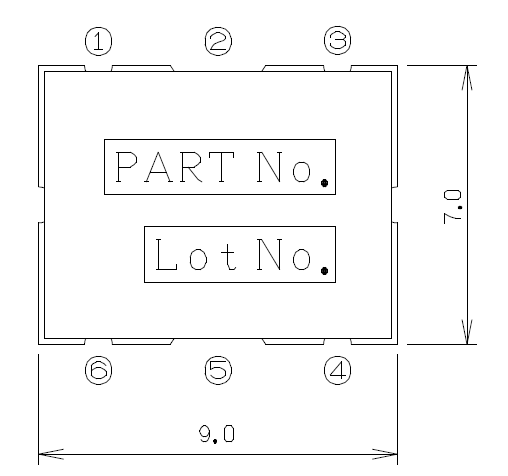

1Voltage (VCC)
2Ground (GND)
3Tuning voltage(VT)
4N.C
5Ground (GND)
6RF Out put
