100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna
Specifications
Brand Name :
TeXin OEM
Model Number :
TXWZBM2400
Certification :
CE ISO
Place of Origin :
Shenzhen ,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
100000/month
Delivery Time :
Within 3 work days
Packaging Details :
Durable case or box
Material :
Aluminum alloy exterior shell
Warranty :
1 year
Type :
Yagi antenna
frequency :
wifi 2.4ghz
Weight :
380G
Size :
74*289*70cm
polarization :
Vertical
Description

100W wifi 2.4ghz long distance directional Yagi commnication antenna

This 100W Yagi antenna is made of high-performance aluminum alloy, featuring a small size, light weight, and high gain, making it suitable for both indoor and outdoor use. It provides directional signal output, covering WiFi signals from 2400-2500MHz; other frequency bands are also available upon request.

Product features:

* Support frequency bands customization .

*Support phone signal 2345G,WiFi 5.2Ghz,2.4GHz,5.8GHz ,VHF,UHF ,GPS frequency bands customization for you need

* Aluminum alloy exterior shell: fast heat dissipation and durable use , good performance .

*High power 100w output

* Small size and light weight

Specifications :

█Electrical Specifications
FrequencyRange 2400-2500MHz
Gain(dBi) 10dBi
VSWR ≤1.5
Polarization Vertical

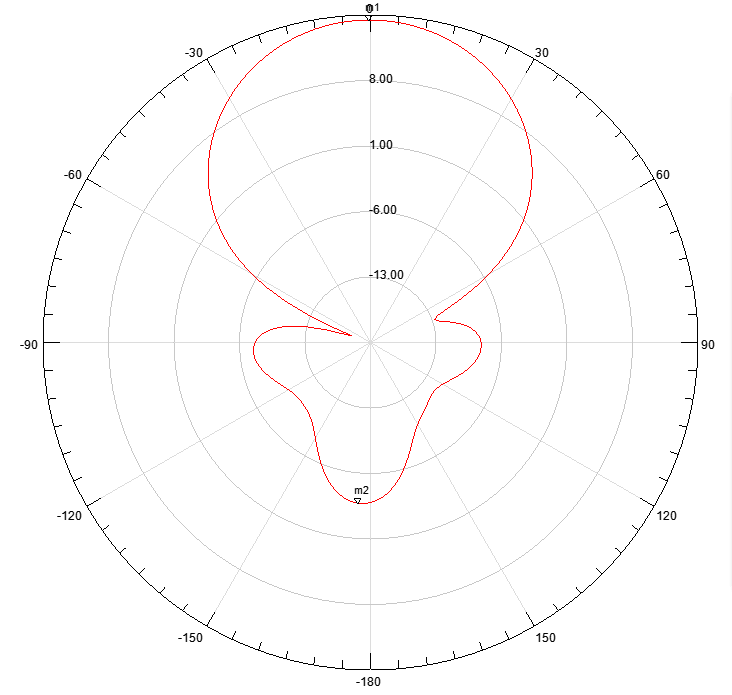

Horizontal Beamwidth(0º) 55±10º

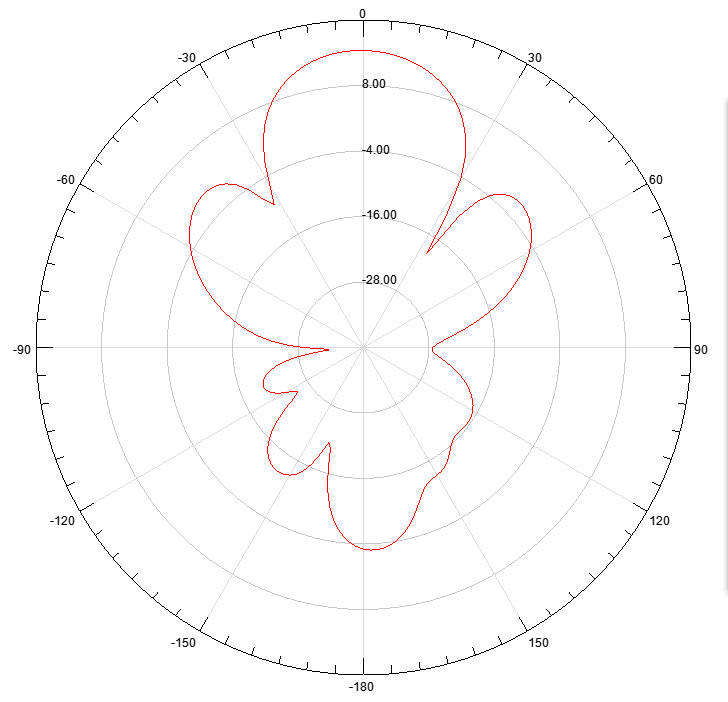

Vertical Beamwidth(0º) 30±10º
Front-to-back ratio(dB) ≥18
Input Impedance(Ω) 50Ω
Maximum input power(W) 100W
Inpur connector type N-K
Lightning Protection DC Ground

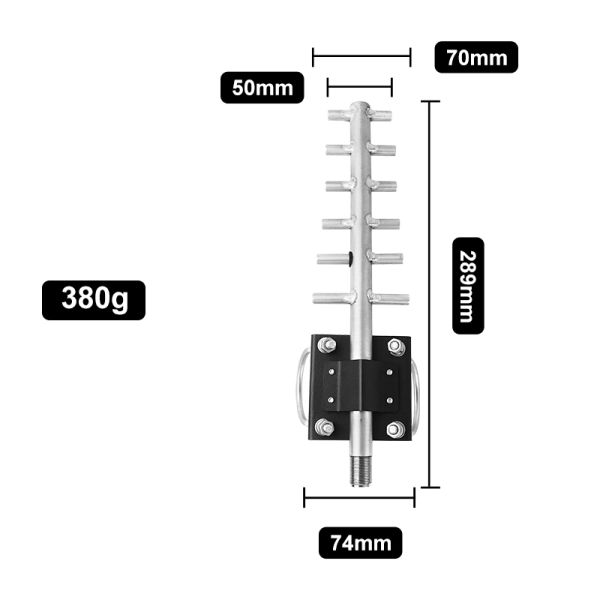

█Mechanical Specifications
Dimensions­mm(Height/Width/Depth) 320*70*16mm
Packing cotton
Antenna weight(kg) 0.4K
Rated Wind Velocity(m/s) 31m/s
Operational Humidity(％) 10- 95
Radome Color silver
Radome material aluminum
Operating temperature(ºC) -40～55 º
Installution Method Pole installation
Mounting hardware(mm) Φ30～Φ50mm

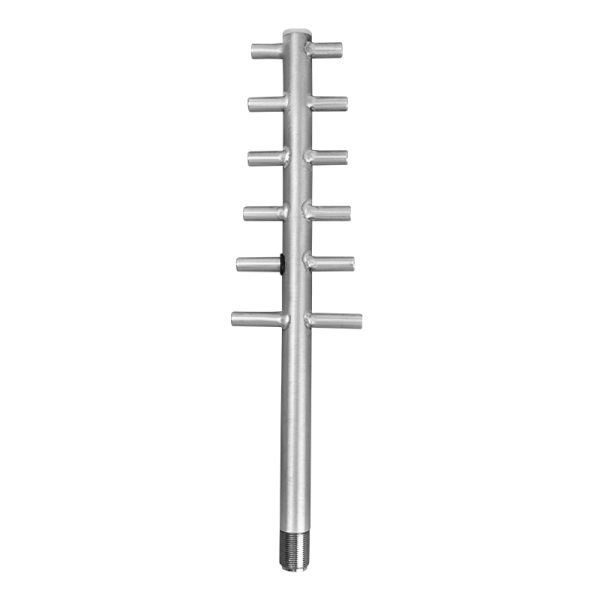

Pictures:

100W wifi 2.4ghz long distance directional Yagi commnication antenna

100W wifi 2.4ghz long distance directional Yagi commnication antenna

100W wifi 2.4ghz long distance directional Yagi commnication antenna100W wifi 2.4ghz long distance directional Yagi commnication antenna
