Specifications
Brand Name :
TeXin
Model Number :
TXC0507001000
Certification :
CE ISO
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000/month
Delivery Time :
Within 3 work days
Packaging Details :
Durable case or box
Brand :
Texin
Type :
Signal jamming module
Power :
100 W
Frequency :
700-1000mhz
Connector :
N type
Description

Wireless TX radio drone signal jammer module 700-1000mhz GaN solution VCO modulation

It is a wireless information security module dedicated to 700-1000MHz 100w 50dbm signals. Taking GaN material and module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.
Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

3. Feature

  • Frequency range :700-1000MHz
  • Solution :GaN and 100W
  • With adjustment holes
  • High performance aluminum alloy, ceramic sealing tube
  • Power supply :24-28V 6.2A

Regular specifications :

700-1000MHz 100W RF Power Amplifier Specification
No.ItemDataUnitNotes
1Frequency700-1000MHZ
2Work Temperature-20~+70℃
3Max Output Power100W
4Work VoltageDC24-28V
5Max Gain50dB
6Flatness±1dB　
7Max Current6A
8Output VSWR≤1.5
9Output ConnectorSMA/F 50Ω Customized
10Power Amplifier Efficiency45 when Max Output
11Switch Controlhigh low
level current		V0V off /0.6 on
12Standing Wave ProtectionOK
13Temperature Protection75°℃

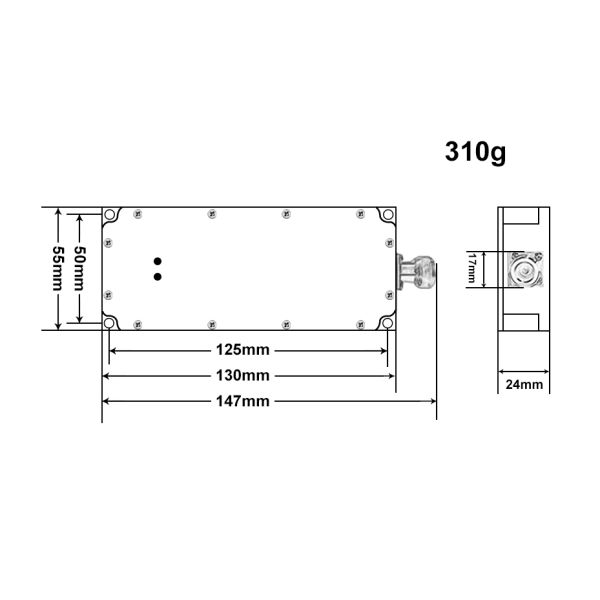

14Size130*55*24mm
15Weight0.31Kg


Precautions for use

  • Power supply needs to carry 28V 6A
  • If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
  • When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power

Pictures:

Wireless TX radio drone signal jammer module 100W 700-1000mhz GaN solution VCO modulationWireless TX radio drone signal jammer module 100W 700-1000mhz GaN solution VCO modulationWireless TX radio drone signal jammer module 100W 700-1000mhz GaN solution VCO modulation

Wireless TX radio drone signal jammer module 100W 700-1000mhz GaN solution VCO modulation
