TX-BF05 Long Range Portable Man pack Drone Signal Jammer omnidirectional 5 bands Full-Band Coverage

Specifications

Brand Name :

TeXin

Model Number :

TX-BF05

Certification :

CE ISO

Place of Origin :

Shenzhen ,China

MOQ :

Price :

Negotiable

Payment Terms :

L/C, D/A, D/P, T/T,

Supply Ability :

100000/month

Delivery Time :

Within 3 work days

Packaging Details :

Durable case or box

Built-in Battery :

DC24V 30A

Power Input :

AC100V~240V

Power Consumption :

≤ 720W

Working Temperature :

-20℃~75℃

Working Humidity :

35~95%

Outer Antenna :

High gain 16dBi Panel directional Antenna

Body Weight :

16.8 kg

Body Size :

49*35*19 cm

Total Output Power :

300W

Jamming Range :

1500-1800 meter (according to the real environment )

Description

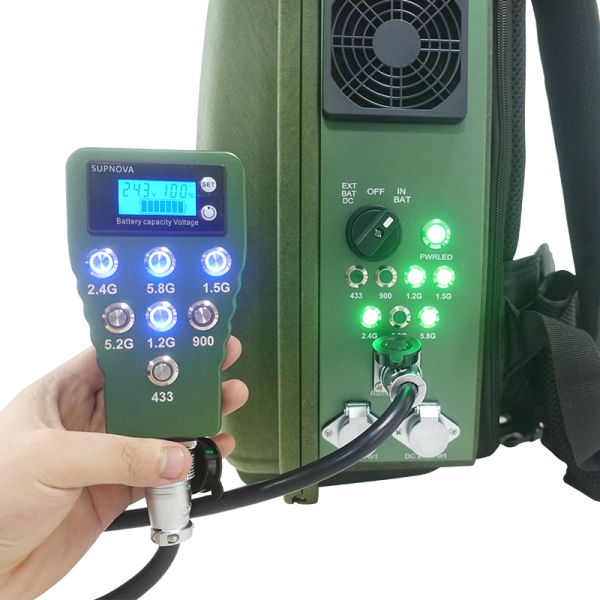

TX-BF05 Man pack Drone Signal Jammer

Name: TXBF05 Long Range Portable Man pack Drone Signal Jammer omnidirectional 5 bands FullBand Coverage
Brand: TeXin
Price: 1 USD

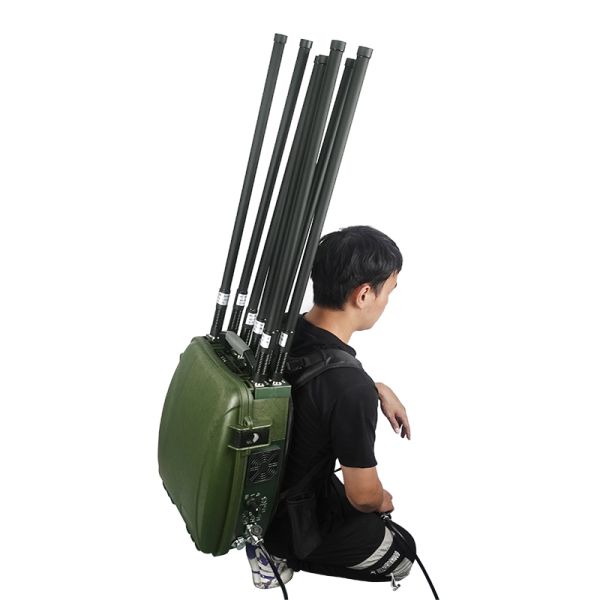

TX-BF05 is a back pack type drone signal jammer for personal use with built-in rechargeable battery and DC wire for external battery use.

It can force drone leave or land in about 1500 to 1800 meter with high gain directional antenna,depends on real environment.

Product Feature

* Long range about 1500-1800 meter

* 5 Channel jamming frequency: GPS, 2.4G, 5.8G, 900MHz, 400MHz

* High output Power total 300W for effective and stable jamming

* High gain 16dBi panel directional antenna

* Durable military resin out shell: water proof, dust proof, heat resistant, anti corrosion

* Smart cooling design: with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out

* Built in lithium battery can lasts 1 hour

* Back pack style for easy moving

Specification

Product Type	Back pack drone jammer
Jamming Range	1500-1800 meter (according to the real environment )
Working Channels	GPS: 1560-1620 MHz, 1 jamming modules WiFi 2.4G: 2400-2485 MHz, 2 jamming modules WiFi 5.8G: 5725-5850 MHz, 2 jamming modules 900MHz: 860-920 MHz, 1 jamming module 400MHz: 433MHz, 1 jamming module
Total Output Power	300W
Body Size	493519 CM
Body Weight	16.8 kg
Outer Antenna	High gain 16dBi Panel directional Antenna
Working Temperature	-20℃~75℃
Working Humidity	35~95%
Power Consumption	≤ 720W
Power Input	AC100V~240V
Built-in Battery	DC24V 30A

Packing List

1pcs*Jammer

1pcs*High gain panel antenna

1pcs*AC Power Charger

How to Operate

* Please full charge the built-in battery before use

* Check to LCD screen to check the remaining power capacity

* Press the separate buttons on the remote control to start the intended

jamming function

* Target the drone in the sky, the drone will be forced to return home or

land slowly immediately in 3-5 second

Mode 1
Drone Return Home

Mode 2
Drone Return Home

Mode 3
Drone Land

Mode 4
Drone Land

2.4Ghz
5.8GHz

RC868/915
433 MHz
2.4Ghz
5.8GHz

2.4 Ghz
5.8 GHz
1.5 GHz (GPSL1)

RC868/915

433 MHz
2.4 Ghz
5.8 GHz
1.5 GHz (GPSL1)

After-Sales Service

* User Instruction: we can offer online details photo illustration and video;local instruction is also available but with extra cost

* Online technical support:our professional engineers will assist customers with technical problems

* After sales service:our company will perform the agreed responsibility and duty during the warranty period

* Fast reply of Customer feedback and questions

* All product enjoy 1 year warranty and Life time maintenance service

More Picture
