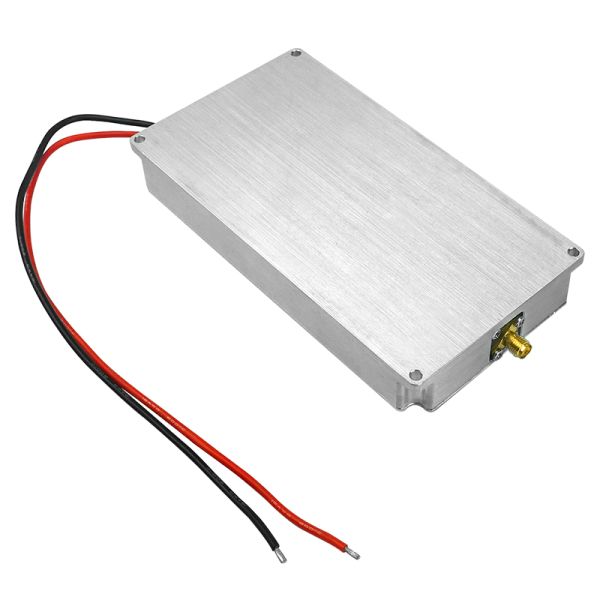

Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Wideband RF Signal Source Module 9-28V DC External VCO for UAV Drone FPV Jammer & Countermeasure System
Specifications
Brand Name :
TeXin
Model Number :
TX-100W
Certification :
CE ISO
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P,
Supply Ability :
100000/month
Delivery Time :
Within 3 work days
Packaging Details :
Durable case or box
Warranty :
1 Year
Frequency :
Customized
Test voltage :
28v
Out shell material :
Aluminum
Vibration need :
Car load OK
Work Temperature :
-20~+70℃
Enable Control :
High ON Low Off
Power supply wire :
Red+Black+Enable wire
Description

Product Description

This wideband signal source module is a high-power RF jamming module specially used for drone and FPV jamming systems. With external VCO design, it can generate stable interference signals to effectively block drone remote control, FPV video transmission and navigation signals.
Powered by DC 9–28V wide voltage, it supports vehicle power supply and mobile use. The aluminum shell has excellent heat dissipation performance to ensure long-time high-power jamming work. Standard SMA interface allows direct connection with antennas to form a complete anti-drone jamming system.
It is widely used in UAV jamming, FPV signal blocking, airport protection, important area security and other scenarios that need to disable drones and FPV equipment.

Core Features

  • 1.Targeted Jamming Performance: Optimized for disrupting drone control, FPV video, and navigation signals, ideal for anti-drone and security applications.
  • 2.External VCO Tuning: Flexible frequency configuration to cover 1.2G/2.4G/5.8G and other common drone/FPV bands.
  • 3.High Power & Reliability: All-aluminum brushed housing for maximum heat dissipation, ensuring continuous high-load operation.
  • 4.Standard SMA Interface: 50Ω impedance for direct connection to high-gain antennas and jamming system arrays.
  • 5.Wide Power Compatibility: DC 9–28V input works with vehicle batteries, portable power supplies, and fixed power setups.
  • 6.Rugged & Compact: Shock-resistant metal enclosure designed for harsh field environments.

Technical Specifications​
No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 28 V
3 Current 4 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire+yellow protect
10 Enable Control High ON Low Off
11 Out shell Size 140*75*19 mm
12 Mount hole 134*68 mm
13 Weight 323 g
14 Work Temperature -40~+125 ℃
15 Out shell material Aluminum
16 Vibration need Car load ok
