High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
Specifications
Brand Name :
TeXin OEM
Model Number :
TX003-5153-17Q65VBG
Certification :
CE ISO
Place of Origin :
Shenzhen ,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000/month
Delivery Time :
Within 3 work days
Packaging Details :
Durable case or box
Type :
High gain antenna
Frequency :
2.4ghz /5.2ghz/5.8ghz
Weight :
0.15KG
Size :
370*28*1mm
Gain :
17dbi
Shield range :
1000-3000 meters
Connector :
SMA / Female
Description

High gain 17dbi GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system

The TX003-5153-17Q65VBG high gain 17dbi PCB antenna is a directional antenna can highly transmit signal distance 1000-1500m according to the system .The PCB board assembly method offers both lightweight advantages and centralized signal output, ensuring uninterrupted operation even in complex industrial and outdoor environments. It can be used in drone countermeasures and communication ,applications.This antenna is cost-effective and highly efficient. The frequency band can be customized. Welcome to inquire
Main features :
1.High gain 17dbi
2.Light weight 150g portable to carry
3.Taking Double-sided polytetrafluoroethylene copper clad laminate that High temperature resistance
4.Long distance to jamming
5.It has lightning Protection
6.Out put 50W need match 50W input
Frequency Range (MHz) (Customized )
Gain(dBi) 17dbi
V.S.W.R ≤1.6
Polarization Vertical
Horizontal Beamwidth(0º) 35-45º
Vertical Beamwidth(0º) 27-38º
Input Impedance(Ω) 50Ω
Lightning Protection DC ground

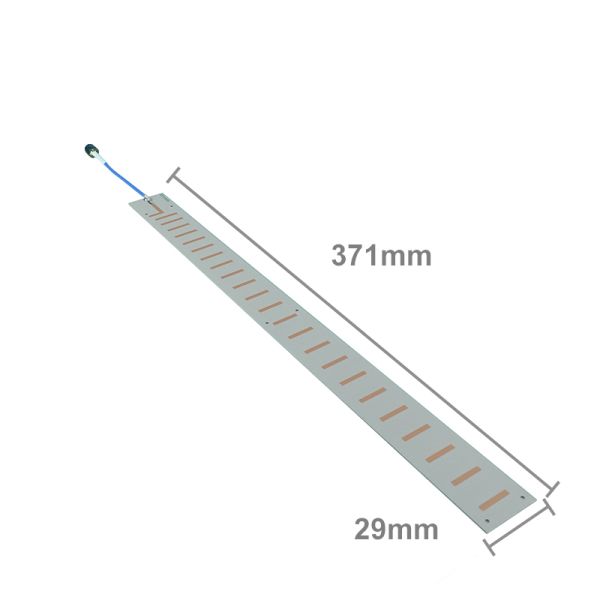

Size 370*28*1mm
Radome Color Black
Weight (g) 150g

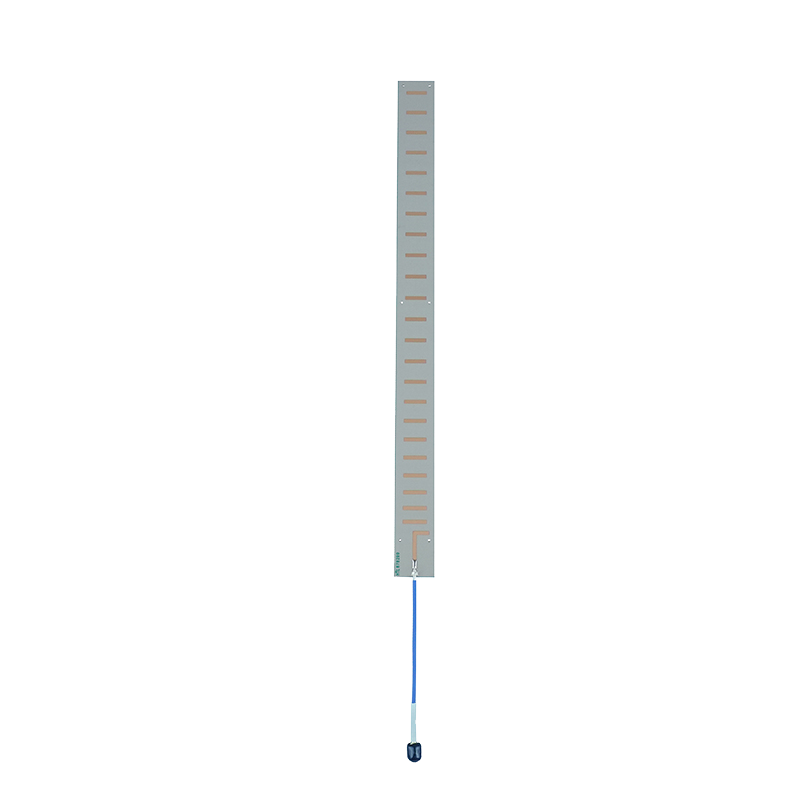

Pictures:
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
High gain 17dbi long range GNSS 2.4ghz 5.2ghz PCB antenna for portable drone jammer system
