Specifications
Brand Name :
TeXin
Model Number :
TXBF08
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
Manpack jammer
Jamming Range :
5-20meter (depends on signal environment)
Jamming Type :
2G,3G, 4G,5G,GPS,Wifi,Customized
Marterial :
Durable Alluminum Alloy
Si ze :
49*35*19 CM
Weight :
13 kg
Description

Packing List

1pcs*Jammer

1pcs*High gain panel antenna

1pcs*AC Charger

1pcs*DC Charger

Powerful 8band directional manpack drone signal jammer equipment for air security

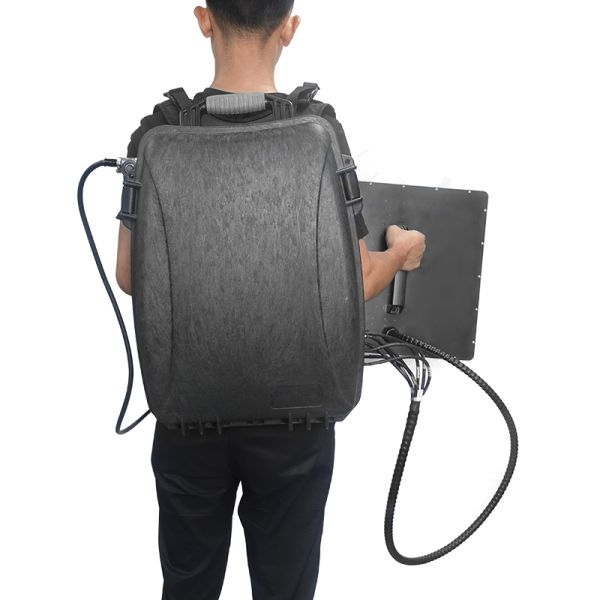

TX-BF05 is a back pack type drone signal jammer for personal use with built-in rechargeable battery.

It can force drone leave or land in about 1500 to 2000 meter with high gain directional antenna,depends on real environment.

Advantage

* Long range about 1500-2000 meter

* 5 Channel jamming frequency: 900MHz, 1.5G, 2.4G, 5.2G, 5.8G

* High output Power total 260W for effective and stable jamming

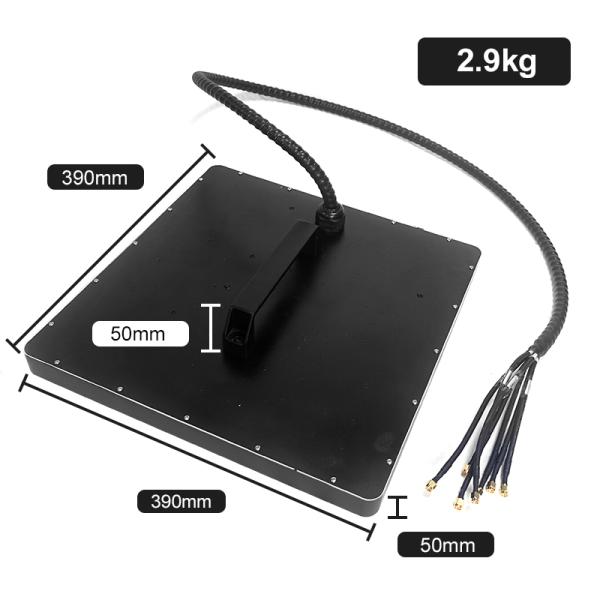

* High gain 16dBi panel directional antenna

(Massive MIMO each channel 16dBi)

* Durable military resin out shell: water proof, dust proof, heat resistant, anti corrosion

* Smart cooling design: with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out

* Built in lithium battery can lasts 1 hour

* Back pack style for easy moving

Specification

Product Type Back pack drone jammer
Jamming Range

1500-2000 meter

(according to the real environment )
Working Channels

GPSL1: 1.5 GHz 30W

WiFi 2.4G: 2400-2485 MHz 100W

WIFI 5.2G: 5150-5350 MHz 50W

WiFi 5.8G: 5725-5850 MHz 50W

900MHz 30W
Total Output Power 260W

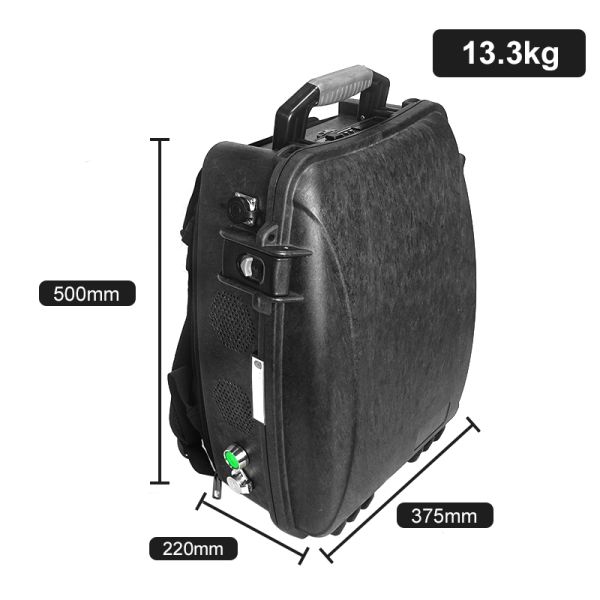

Body Size 49*35*19 CM
Body Weight 13 kg
Outer Antenna High gain 16dBi Panel directional Antenna
Working Temperature -20℃~75℃
Working Humidity 35~95%
Power Consumption ≤ 650W
Power Input AC100V~240V
Built-in Battery DC24V 30A


Jamming Frequency Details

Working Frequency
130-200MHZ 200-300MHZ
300-400MHZ 400-500MHZ
700-800MHZ or 790-862 MHZ 2500-2700MHZ
800-900MHZ 900-980MHZ
1050-1200MHZ 1200-1390MHZ
1500-1600MHZ 1700-1800MHZ
1800-2000MHZ 2100-2199MHZ
2300-2400MHZ 2400-2500MHZ
Guarantee 1 Year

Application

1. Law enforcement: prison, police station;

2. Education field: Examination,Training;

3. Military and Goverment

4. Important confidential places

5. Theatre, concert room, Memory Hall, Auditorium,etc

6. Others
