20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
Specifications
Brand Name :
TX TELSIG
Model Number :
TX-S030
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
GaN jammer module
Frequency :
Customized
Power :
30W
Gain :
43dbi
Marterial :
aluminum
Size :
104*40*17mm
Weight :
0.13Kg
Switch Control :
24-28V
Description

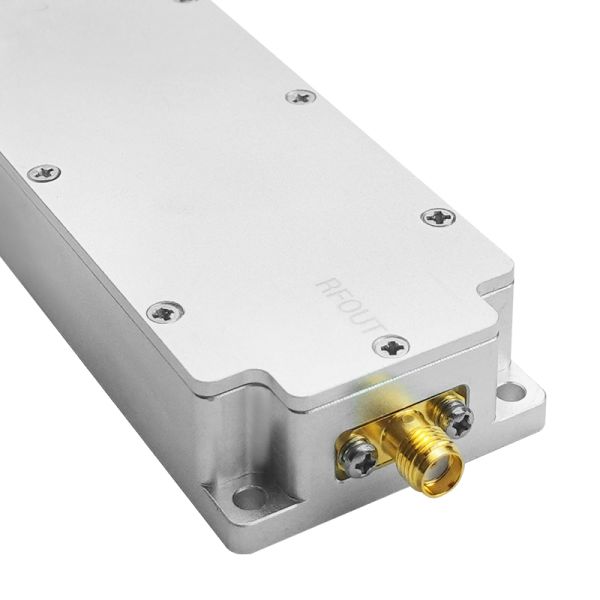

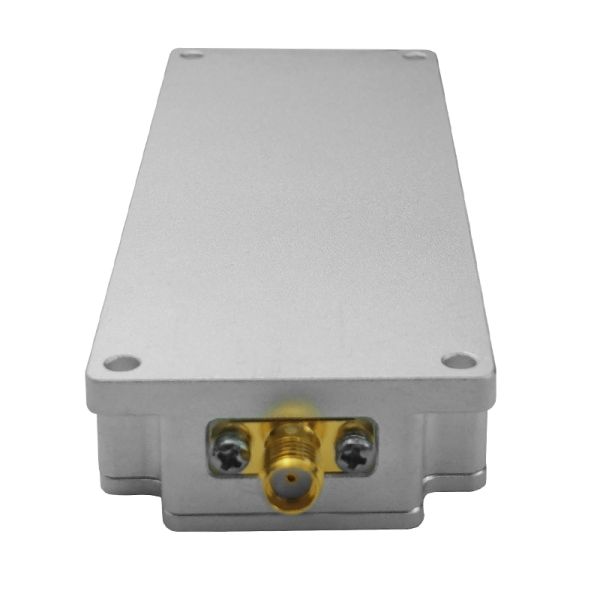

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy

It is a wireless information security module dedicated to 890-960MHz signals, or customize support. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.

Precautions for use

Before the module is used, the customer must first configure the corresponding heat dissipation measures, antenna connection and power connection

-- About cooling measures

* Due to the high output power, the module will heat up when it is used

* Please be sure to add heat sink and cooling fan to the module to keep the module low temperature and high efficiency

* If there is no corresponding heat dissipation measures, the module will be short-circuited or directly damaged

-- About the antenna connection

When connecting, you must screw on the antenna first, then connect the front-end source equipment, and finally supply power

-- power connection

Power supply support voltage DC24-28V

When the power supply is 28V, the use effect of the module is better

Application
Examinations, School, Conference Room, Parking Place, Office, Home, Theatre, Library, Training room, etc
Those place forbidden phone,wifi, GPS signal sometime or all the time.
890-960mhz 30W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency 890-960 MHZ
2 Work Temperature -40~+70 ℃
3 Max Output Power 30 W
4 Work Voltage 24-28 V 24-28V all okay
5 Max Gain 46 dB
6 Max Current 2.3 A
7 iutput connector SMA-female If need
8 Output Connector N/F 50Ω Customized
9 Power Amplifier Efficiency 45 when Max Output
10 Switch Control 24-28 V Same as the voltage
11 Standing Wave Protection OK
12 Temperature Protection 75° ℃

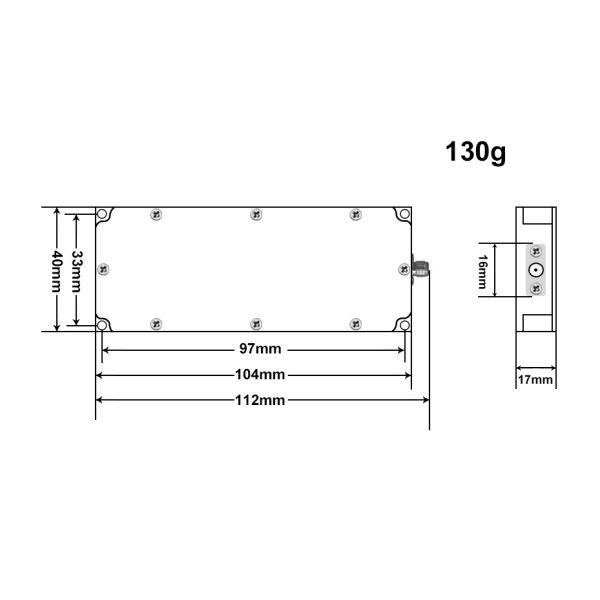

13 Size 104*40*17 mm
14 Weight 0.13 Kg

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy
