Specifications
Brand Name :
TX TELSIG
Model Number :
TX-A-PB
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
50,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
Panel Antenna
Frequency Range :
698-2700MHz (Customized )
Gain :
7/8dB
Impedance :
50Ω
VSWR :
≤1.4
Max Power :
50W
Connector :
SMA / Female
Description

Panel Antenna for N-female FPV counter system RF outdoor coverage for air security

This flat panel antenna was independently developed and manufactured by Shenzhen Texin Electronics. When used with existing anti-drone equipment, the anti-drone signal can be transmitted in the range of 500-1000. It is easy to use and the angle can be controlled at will according to the target object to achieve a strong anti-drone effect.TXtelsig is the professional manufacturer for the signal jamming and wireless coverage product.

Specification

Brand-TXtelsig Model No. TX-A-PB
Frequency range(MHz) 806~960 1710~2700
Gain 7dBi±1dB 8dBi±1dB
Horizontal Beamwidth 90±15 deg 75±12 deg
Vertical Beamwidth 65 deg 60 deg
Front to Back Ratio ≥6 dB ≥8 dB
VSWR ≤1.4
Input Impedance 50 Ω
Polarization Vertical
Maximum Power 50 W
PIM (IM3) ≤-107dBm @33dBm*2
Connector Type N-Female
Operating Temperature -40 to +70 C deg
Relative humidity 5 to 95 %
Dimensions 210x180x44 mm
Net weight 430 g
Cable Length 260 mm
Radome Material ABS
Radome Colour White
Operating Temperature -40 to +70 C deg
Relative humidity 5 to 95 %
Rated Wind Velocity 210 km/h

Features

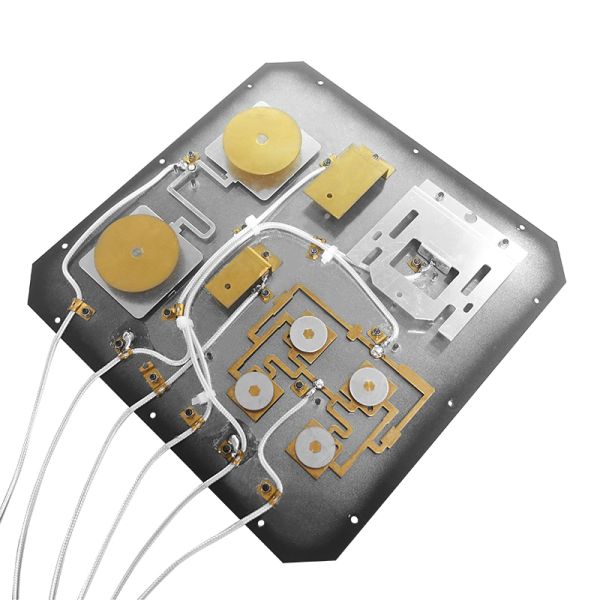

1.The antenna integrates 8 frequency bands and uses a high-gain PCB board.

2.The antenna housing has a compact structure, is waterproof, corrosion-resistant, and is easy to install and carry.

3.Easy to operate and highly flexible

5.High gain, typically 8~20dBi, suitable for long-distance point-to-point countermeasure signal output.
