Specifications
Brand Name :
TeXin
Model Number :
TX-10W customized
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
2
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,00pcs/month
Delivery Time :
3-5days
Packaging Details :
Durable case or box
Frequency :
1560-1620(Customized)
Out shell material :
Aluminum
Test voltage :
28V
Current :
1.2A
Output :
10W
Gain :
40dBm
Connector :
SMA / Female
Out shell Size :
102*40*18mm
Weight :
134g
Description

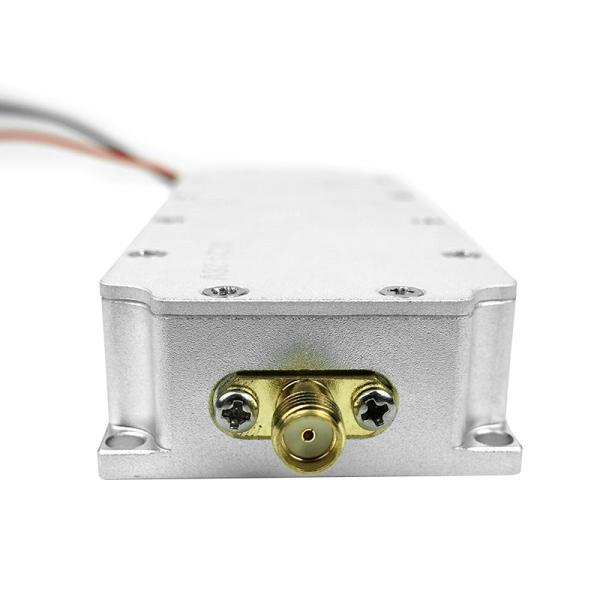

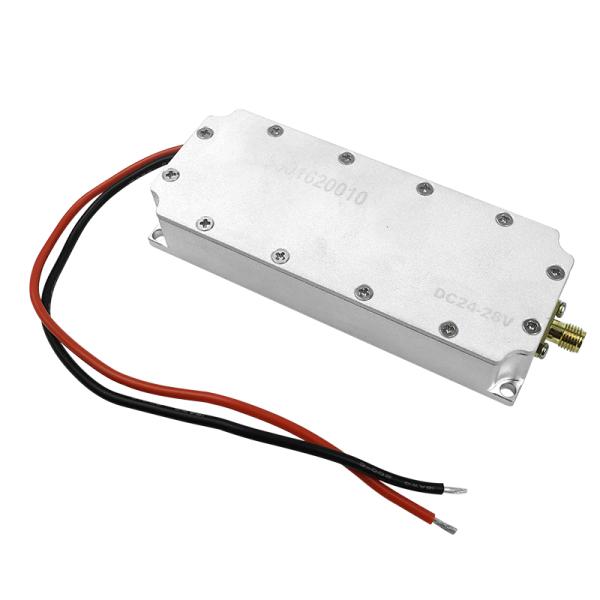

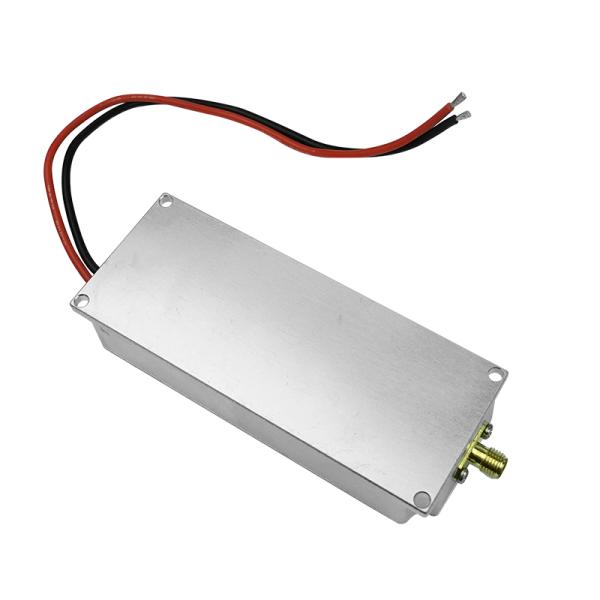

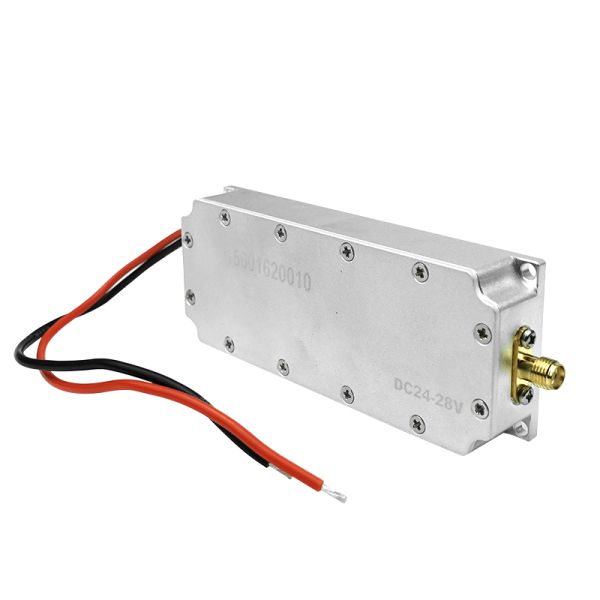

High Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom Frequency

This 10W high-power drone jammer is a professional device designed for FPV and drone control. Targeting the 1560-1620MHz frequency band. With its 10W high-power output, the device boasts a wider jamming coverage area, quickly severing the signal connection between the FPV drone and the operator, forcing the drone to perform safe maneuvers such as hovering, returning home, or making an emergency landing, thus preventing the risk of illegal drone operations at the source. This makes it suitable for a variety of high-security scenarios, including airports, restricted areas, major event venues, government agencies, and oil depots and power plants.

High Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom FrequencyHigh Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom Frequency

Product specification

No. Item Data Unit
1 Frequency 1560-1620(Customized) MHz
2 Test voltage 28 V
3 Current 1.2 A
4 Output 10 W
5 Gain 40 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off

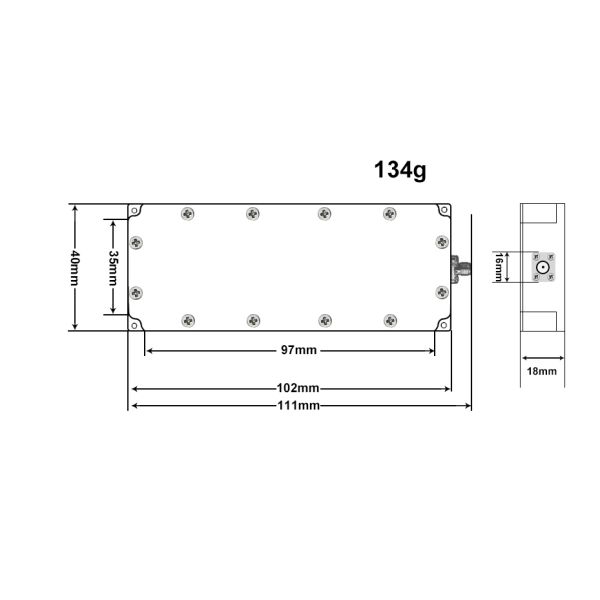

11 Out shell Size 102*40*18 mm
12 Mount hole 102*40 mm
13 Weight 134 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load ok

High Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom Frequency

Product feature

  1. High-Power, High-Efficiency Jamming: Equipped with a 10W high-power transmitter module, it provides strong jamming signals and a wide coverage radius.
  2. Flexible Frequency Customization: Custom frequency options are supported based on customer needs.
  3. Multi-Scenario Adaptability: Suitable for a variety of high-security scenarios, including airports, management areas, event venues, government offices, and energy facilities.
  4. Stable and Durable Design: Utilizing industrial-grade components and heat dissipation, it offers excellent anti-interference capabilities.

High Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom Frequency

FAQ

1. Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3 . Payment term?
T/T, (Visa, Master card, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed with an order?
AA. Let us know your requirements and product application B . We quote according to your specification C.Customers agree with the quotation and make the payment
5. What do if I receive defective products?
Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

High Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom FrequencyHigh Power 10W Drone Jammer For FPV Drones 1560-1620MHz Custom Frequency
