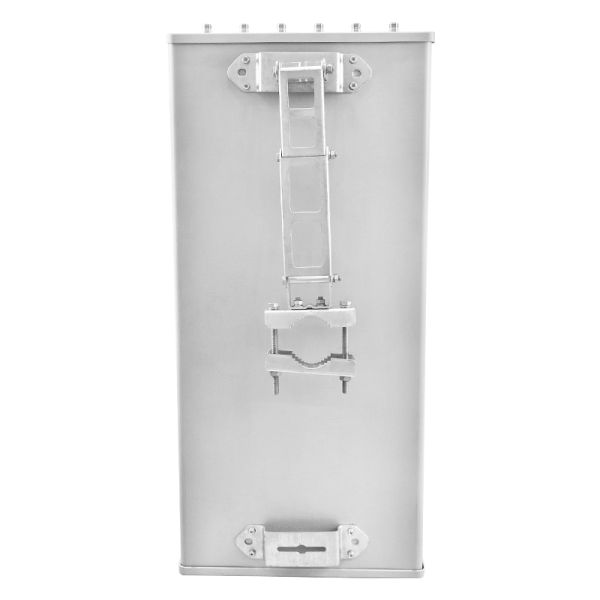

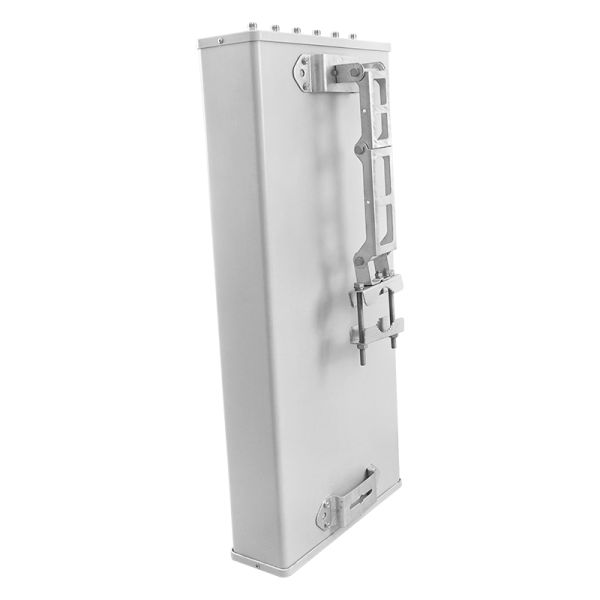

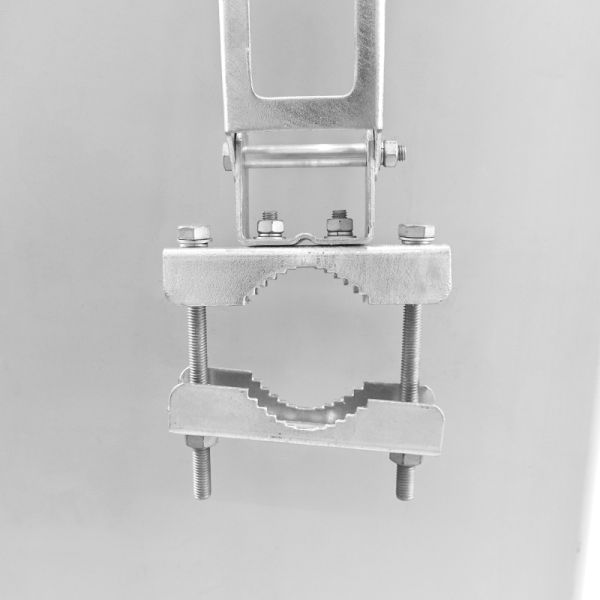

Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Wide Band Outdoor Panel Antenna 700-2700MHz 15dBi High Gain 50Ω 100W Windproof Antenna for Cellular Network Signal Booster Receiver
Specifications
Bandwidth :
160/790MHz
Gain :
15dBi
Nominal Impedance :
50Ω
Frequency Range :
Customized
VSWR :
≤1.7
F/B ratio :
≥25dB
Type :
Antenna
Polarization :
Vertical
Brand Name :
TX TELSIG
Model Number :
TX-H14K
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Recommend Cover area :
1-30 kilometers
Max power :
100 W
Description

Customized Frequency 15dBi Outdoor Directional Panel Antenna

1.Product Detailed Description

This is a professional outdoor directional panel antenna designed for multi-network signal coverage. Covering the mainstream 700MHz~2700MHz frequency band, it matches all mainstream 2G, 3G, WiFi cellular network standards. With superior gain performance, stable electrical indicators and durable outdoor structure, it is a preferred supporting antenna for signal repeaters, amplifiers and outdoor signal receiving equipment, widely used in commercial communication engineering, rural signal coverage, campus & factory wireless networks.

2.Technical Specifications

Outdoor antenna
Frequency Range 700-2700MHz(customized)
Recommend Cover area 1-30 kilometers
Bandwidth 160/790MHz
Gain 15dBi
F/B ratio ≥25dB
VSWR ≤1.7
Polarization Vertical
Max power 100 W
Nominal Impedance 50Ω

Mechanical
Connector N female
Antenna Dimension 900*420*143mm
Weight 9kg
Rated Wind Velocity 60m/s
Vertical Beamwidth 15/9

3.Main Applications

*Cellular Network Systems: Compatible with GSM, CDMA800, DCS, PCS, 3G, AWS network equipment.

*Signal Repeater & Amplifier: Matches single-band and dual-band signal repeaters to boost mobile and WiFi signals.

*Wireless Communication & Data Transmission: Outdoor wireless data transmission projects, long-distance wireless networking.

*Outdoor Signal Receiving Terminal: Professional outdoor receiving antenna for base station auxiliary coverage.

4.Warm Tips

*This antenna is specially designed for outdoor use, please install it in an open area to avoid blocking by buildings or obstacles for optimal signal effect.

*Please use standard coaxial cables to connect the N-female connector to ensure good contact and reduce signal loss.

*Professional installation is recommended for engineering projects to guarantee service life and signal performance.
