ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
Specifications
Brand Name :
TX TELSIG
Model Number :
TXDC2000W
Certification :
SGS,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 work day
Packaging Details :
Durable case or box
Type :
2000W Power supply
Voltage :
32V36V(customized)
Weight :
2.05kg
Size :
259*150*66mm
Marterial :
Durable Alluminum Alloy
Packing :
cardboard box
Application :
Portable electronic device
Description

ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors

TXtelsig is the leading manufacturer for the signal jamming and wireless coverage product.And also we have our own batter factor to produce the multiple wattage battery.

TXDC2000 is the high power 2000W portabe power supply for outdoors electronic device .such as drone jammer and other device This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

We can customize the 2000W power supply in different voltage and wattage according to different country situation and customer need.

Advantage

1. Factory manufactured for safety and reliability

2. Low power consumption and high efficiency

3. Built-in fan design for efficient heat dissipation

4. Ultra-high power 2000W, supporting the operation of large equipment

Specification

Parameter

model

Parameter

TXDC2000W
Fetures Output voltage 0-30Vadjustable
Output current 100A
Current range 0-100A
Wave 320mVp-p
Output accuracy ±1%
Line adjustment rate ±100%
Load regulation ±100%
Rated power 3000W
Output adjustable range ±100%
Establish, rise, and maintain time 250ms,30ms,20ms/220VAC
Input Fetures Input voltage range 200-260VAC
Input current 22A
Frequency 47-63HZ
efficiency 92%
Inrush current 40A/230V
Leakage current ＜2Ma/230V
Protective features Overload protection 105-110%Rated power, constant current step-down
Other functions Fan temperature control speed adjustment
Environment -40℃-+50℃@100%LOAD,+60℃@60%LOAD,20%-90%RH
Storage temperature -20℃-+85℃,10%-95%RH
Humidity drift ±0.03%/℃(0-50℃)
vibration 10-500HZ,2G 10min/1cycle,PERLOD ROR 60min.EACHAXES
Safety MEET GB4943
Pressure resistance I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O-P/FG:0.5KVAC 1min
Insulation resistance I/P-O/P,I/P-FG,O/P-FG : 500VDC/100M Ohms

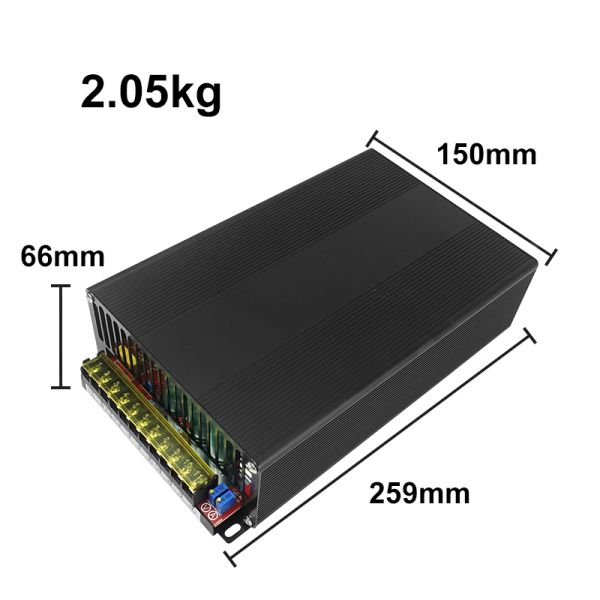

Other Size 259*150*66mm
Single weight 2.05

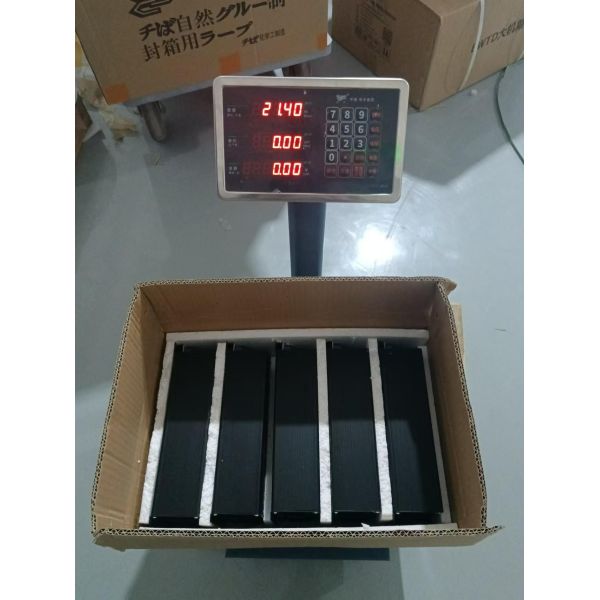

Packing 6pcs/pieces 17KG/pieces

Application

1. Law enforcement: prison, police station;

2. Education field: Examination,Training;

3. Military and Goverment

4. Important confidential places

5. Theatre, concert room, Memory Hall, Auditorium,etc

6. Others

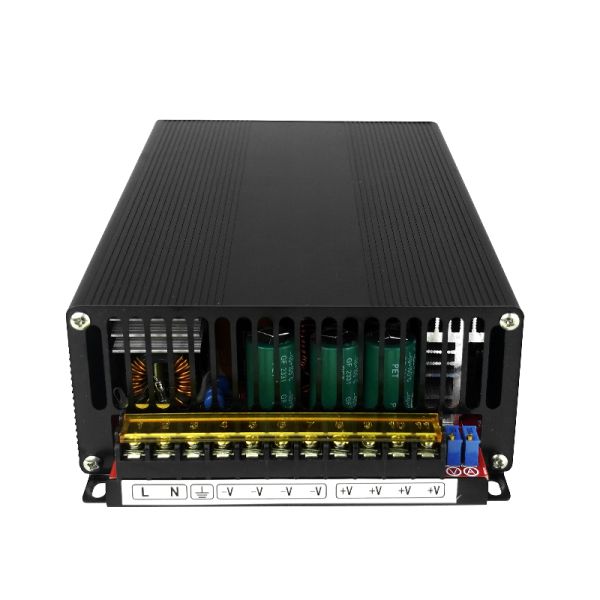

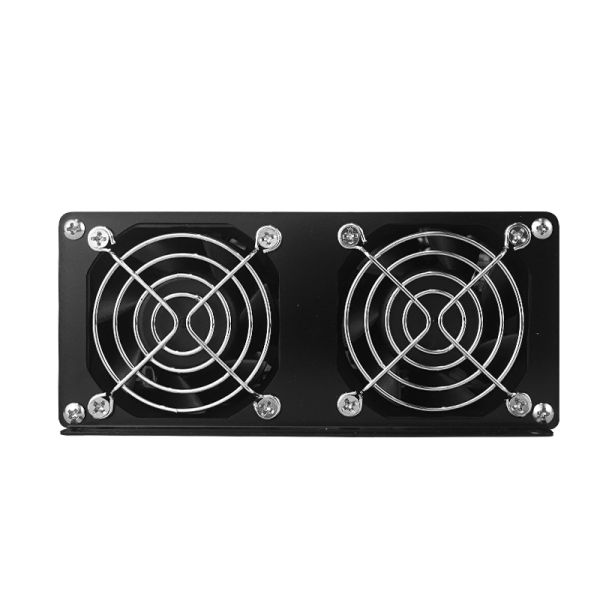

Details picture

ODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoorsODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoorsODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoorsODM&OEM 2000W AC DC 32V 36V 48V 72V power supply for equipment outdoors
