Customizable Omni Fiberglass Antenna

• This is an omni-directional fiberglass antenna with customizable frequency, designed for various industrial and outdoor communication scenarios. It features stable performance, durability, and adaptability to meet different application requirements.




  1. Product Characteristics

  • Frequency Band: Customizable according to user requirements, suitable for different communication frequency needs.
  • Signal Performance: It has a stable gain of 8±0.5 dBi, with an omni-directional horizontal coverage of 360° and a vertical beamwidth of 55°, ensuring no signal blind spots in the coverage area. The ovality is ±2 dB, and the VSWR is less than 2.0, which effectively reduces signal loss and ensures stable signal transmission.

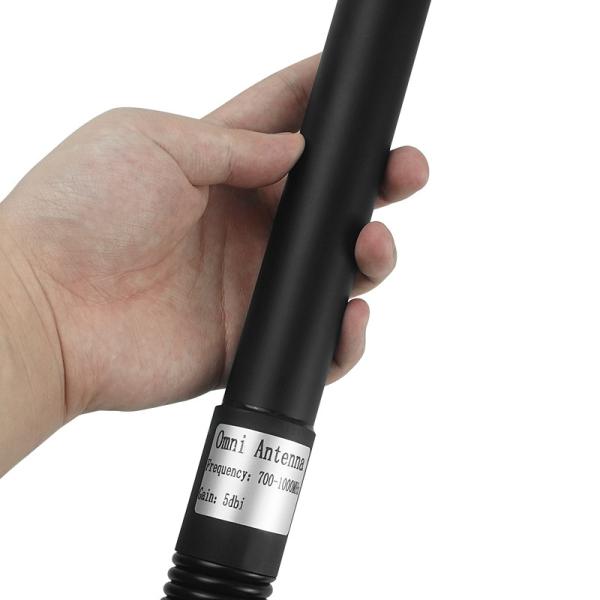

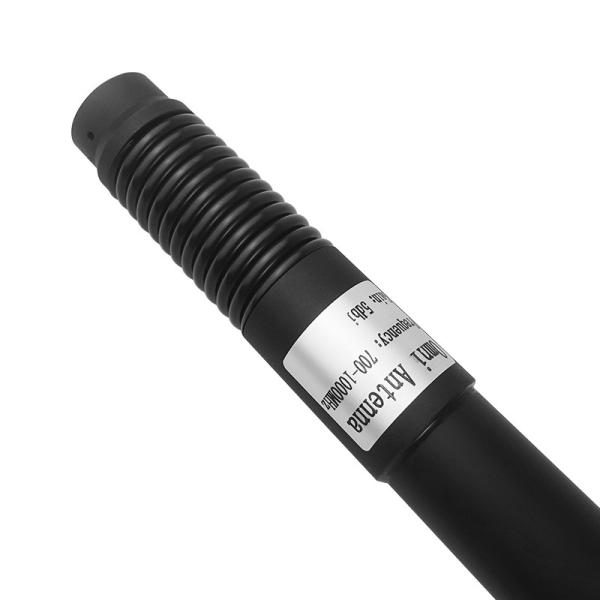

  • Durability: The antenna is covered with a black matte fiberglass radome, which is waterproof, anti-aging and UV-resistant. It can work stably in harsh outdoor environments, with an operating temperature range of -55°C to +70°C and a wind resistance rating of 31 m/s.
  • Power Bearing Capacity: It supports a maximum input power of 100W, with DC ground lightning protection to ensure safe and reliable long-term operation in industrial scenarios.

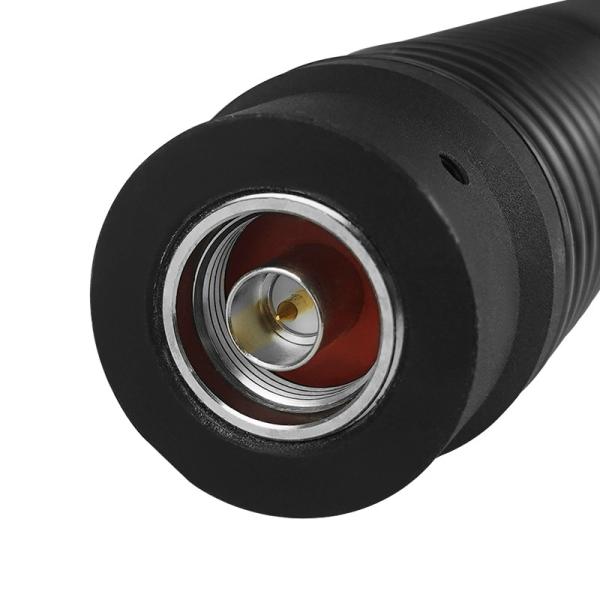

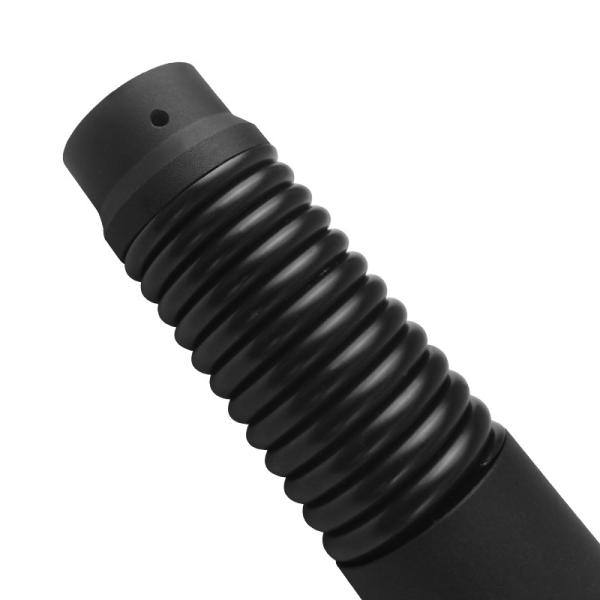

  • Installation and Connection: It adopts an N male connector and a mechanical fixed installation method, which is simple and convenient to install and suitable for integration with various communication equipment.

  2. Technical Parameters

  Item	Specifications
  Gain	8 dBi
  VSWR	< 2.0
  Polarization	Vertical
  Horizontal Beamwidth	360°
  Vertical Beamwidth	55°
  Ovality	±2 dB
  Input Impedance	50 Ω
  Maximum Input Power	100 W
  Connector Type	N Male (N-J)
  Lightning Protection	DC Ground

  3. Mechanical and Environmental Parameters

  Item	Specifications
  Antenna Dimension	Ø25×710 mm
  Weight	758 g
  Rated Wind Velocity	31 m/s
  Color	Black matte finish
  Radome Material	Fiberglass
  Operating Temperature	-55°C ~ +70°C
  Installation Method	Mechanical fixed installation




  4. Application Scenarios

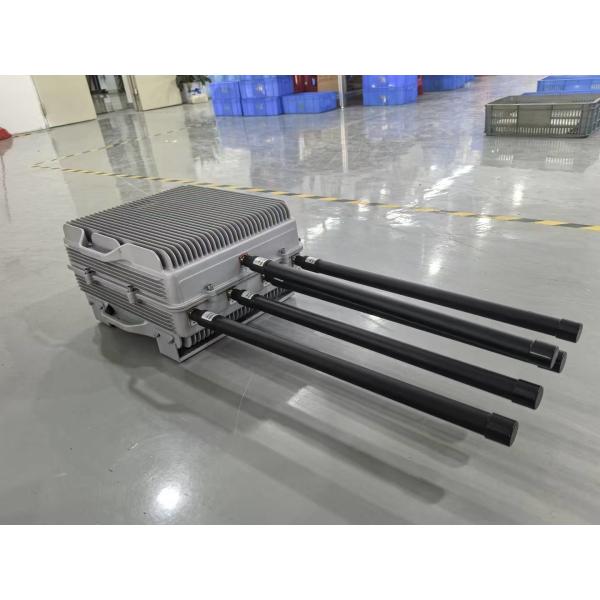

  The antenna is widely used in industrial private network communication systems, wireless data transmission and remote monitoring equipment, drone ground station communication links, outdoor wireless intercom coverage, security and Internet of Things data transmission, and other fields that require stable outdoor communication.

  5. Packaging and Quality Assurance

  The standard packaging includes 1 antenna per unit, and bulk packaging is available with 20 pieces per carton (carton size: 750×200×160 mm). All antennas have passed factory inspection to ensure that they meet the specified performance parameters. Custom frequency tuning is provided according to user needs.
