Specifications
Brand Name :
TX TELSIG
Model Number :
TX-B10H-Silver
Certification :
SGS,ISO9001,CE,FCC,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiated
Payment Terms :
T/T,Paypal, Etc.
Supply Ability :
100,000pcs/month
Delivery Time :
In 2 day
Packaging Details :
Kraft paper box with protection foam
Size :
132*53*17mm
Weight :
0.2kg
Frequency :
Customized
Work Temperature :
-20~+70℃
Max Output Power :
50w
Work Voltage :
DC28v
Max Gain :
47dB
Flatness :
±1dB
Max Current :
4A
Output VSWR :
≤1.5
Output Connector :
SMA
Power Amplifier Efficiency :
45(when Max Output)
Switch Control :
high low level current
Standing Wave Protection :
OK
Description

5725~5850MHz 50W Anti-Drone Moudle

1.Product Description

The TX60100 - 5800MHz 28V 100W anti-drone power amplifier moudle is specifically developed for 5 . 8GHz anti drone applications . This is a high-power, high-efficiency, and highly reliability product with internal low-temperature drift VCO and small signal control switch, which has good anti jamming effect for frequency hopping

drones . It has a built-in isolator that can provide standing wave protection function .

2. Electrical Characteristics

Characteristics Min. Typ. Max. Unit Conditions
Frequency 5725 5850 MHz
Output Power 50.2 50.5 51.0 dBm
Operating Voltage 28 32 V
Operating Current 7.6 A
Efficiency 55 %
Power Gain / dB Amplifier application

3. Interface Definition

Interface Description Connector type Electrical Characteristics
RFIN RF signal input (power amplifier application) SMA 50Ω
RFOUT RF signal output SMA 50Ω
VCC Supply Voltage feed-through capacitor +28V±1V
VEN Enable signal (optional) feed-through capacitor +1V～+28V

4. Working and storage environment requirements

a) Temperature :-40～+70℃;

b) Working Relative Humidity :5%～95% , No condensation；

c) Atmospheric pressure :(70～106)kPa；

d) Storage temperature :-40～+125℃;

e) Storage Humidity:5%～98% , No condensation.

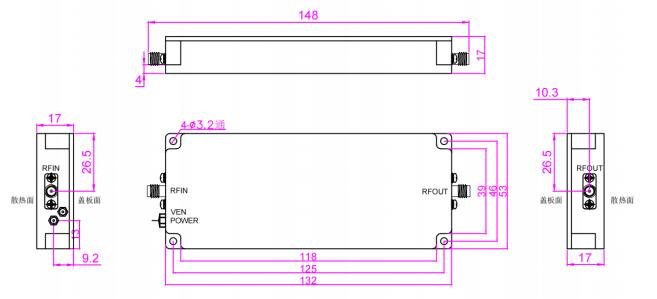

5. Size (Unit: mm)

Customized GaN 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Drone protection outdroos
