Specifications
Warranty :
1 Year
Certification :
CE
Input Voltage :
DC 24V
Product Name :
HMI Human Machine Interface
Place of Origin :
China
Contrast Ratio :
500:1
Model Number :
MR0701NE-wifi
Display Type :
LCD TFT
Touch Screen :
Yes
Operating Temperature :
-20~50℃
Brand Name :
Lensen
Packaging Details :
Standard
Display Size :
7 Inch
Payment Terms :
T/T, Paypal
MOQ :
2
Delivery Time :
1 week
Supply Ability :
100000pcs/month
Price :
negociate
Description

Product Description:

Designed with versatility in mind, this HMI is a fully programmable panel that allows users to customize the interface according to specific application requirements.

Choose the HMI Human Machine Interface as your reliable partner in seamless human-machine communication, and experience the benefits of a modern, efficient, and affordable automation solution.

Features:

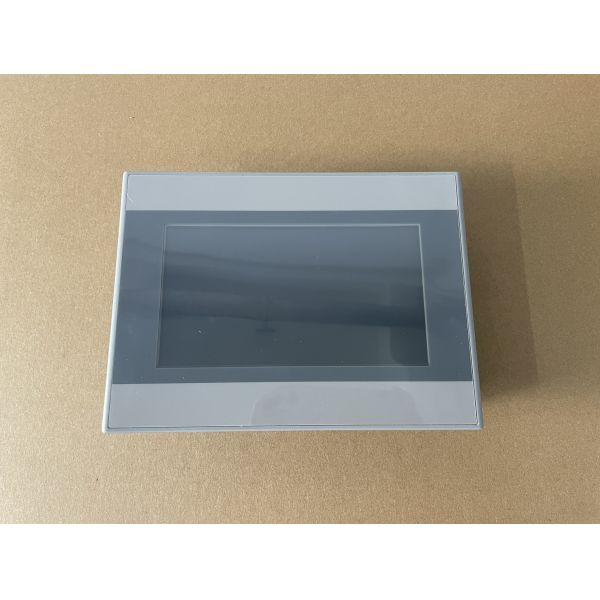

✅ 7" high-brightness touch panel
✅ Onboard Wi-Fi for remote monitoring & data logging
✅ Robust enclosure, industrial-grade durability
✅ Easy integration with PLCs, sensors & controllers
✅ Cost-effective without compromising quality

Technical Parameters:

Part Number MR0701NN MR0701NE MR0702NN MR0702NE
Module Index Parameters
Display LCD display 7 inch TFT
resolutions 800*480 1024*600
Brightness 400cd/㎡ 400cd/㎡
contrast 500:1 1000:1
backlight LED
Backlight life ＞30,000 hours
color 16.77M, 24 bit
Visua Angle 60'/75'/75'/75'
Touch Touch Screen 4-wire resistive type
Touch accuracy Length (x-axis) ±2%; Width (y-axis) ±2%
Memory Flash 128MB 128MB
RAM 64MB 128MB
CPU ARM Cortex-A7 Dual core 1GHz

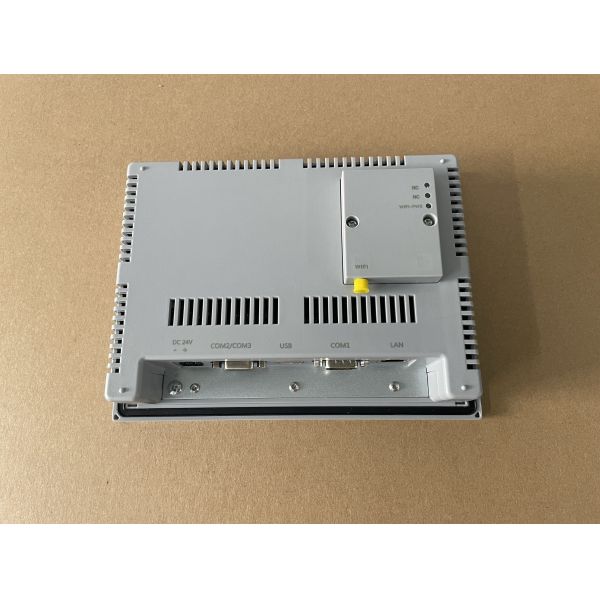

Communication ports USB Host USB 2.0*1
RS-232 COM1
RS-485 COM2:2W/4W；COM3:2W
Ethernet Not support 10/100Mbps self-adaption Not support 10/100Mbps self-adaption
4G Remote Extensible
RTC Built-in real-time clock
Power Input Voltage DC 24V ( 12-28VDC OK to work)
Rated power 10W (420mA@24VDC)
Power Isolation Built-in
Withstand voltage 500VAC for one minute
Insulation Impedance 50MΩ@500VDC
Structure Dimension 212*156*45 mm
Packed Dimension 255*205*80 mm
Hole 192*138mm
Mounting Panel Mounting
Weight About 0.9Kg with inner box
Shell Material Engineering Plastics
Mechanical Vibration 10 to 25Hz(X axis,Y axis,Z axis 2G 30 minutes)
Operating Environment IP Grade Panel:IP65；Rear cover:IP20
Temperature 0-50℃(32°-122°F)
Humidity 10%-90% (No condensation)
Storage Temperature -20-60℃(-4°--144°F)
Certification CE CE Certification No.: LCS211214020AE
Software Smart Manager PRO V1.2.28 or updated version

Applications:

Factory machine control & monitoring

HVAC system management

Smart agriculture (greenhouse, irrigation)

Automated packaging lines

CNC & industrial robot interfaces

Energy management systems

Remote data logging & diagnostics

Smart building automation

EV charging station control

Food & beverage processing lines

Customization:

OEM/ODM welcome.
Shipped worldwide.

Can Customize your logo
