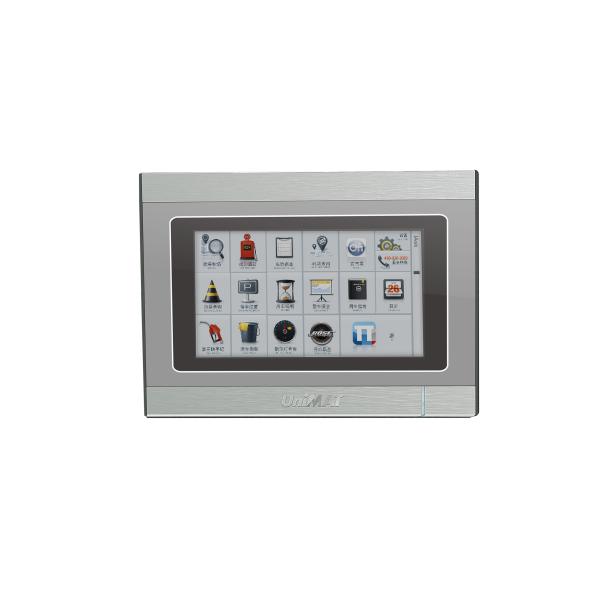

7'' TFT HMI human machine interface system For Industrial Automation
7'' TFT HMI human machine interface system For Industrial Automation
7'' TFT HMI human machine interface system For Industrial Automation
7'' TFT HMI human machine interface system For Industrial Automation
Specifications
Brand Name :
Lensen
Model Number :
LS507
Certification :
CE
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
6000pcs/month
Delivery Time :
2-8 days
Packaging Details :
standard carton
Size :
7'' TFT
resolution :
800×480
Color :
24bits
CPU :
A8 600MHz 32bit
Serial :
male，RS485/RS232/RS422
Rated   power :
7.2W
Description

7'' TFT HMI Human Machine Interface System For Industrial Automation

HMI for Industrial Automation 7'' Touch Screen Support WLAN WIFI Or 4G Low Cost Touch Screen

7'' HMI, 7'' touch screen support WLAN, WIFI or 4G Cost Effective HMI

507 is a 7″TFT LCD resistance touch screen HMI, resolution 800x480,

Can expanding multi interface Ethernet interface, support MODBUS-TCP protocol.

Model No. LS507W-WAN LS507W-WF LS507W-4G
Order No. LS507W-3WA01-0AA0 LS507W-3WF01-0AA0 LS507W-34G01-0AA0
Specifications
Display size 7'' TFT
colors 24bits
Resolution 800×480
backlight LED
Brightness 250cd/㎡
Life span 30000Hrs
Screen type Screen type
CPU A8 600MHz 32bit
Memory 256M FLASH+128M DDR3
Real clock Support
USB HOST USB 2.0×1
USB SLAVE USB 2.0×1
Series port male,RS485/RS232/RS422
Ethernet 10/100M self-adaption
wifi N/A Support N/A
4G N/A N/A Support
Antenna N/A Support Support
Electrical specification
Rated power 7.2W
Rated Voltage DC24V
Input range 9~28.8V DC
Allowable power loss 10ms
insulation resistance Over 50MΩ@500VDC
Voltage resistance 500VAC 1min
Structural specification
Housing color Deep gray+ silvery
Housing material ABS+ PC plastic,metal
Outer size 230×166×39mm
Hole size 192×138mm
Weight 1.3kg
Environmental specifications
working temperature 0~50℃
Working humidity 10~90%RH(non-condensing)
Storage temperature -20~60℃
Storage humidity 10~90%RH(non-condensing)
Seismic performance 10~25Hz(X,Y,Z direction 2G/20 min)
Cooling mode Natural Air Cooling
Product certification
Front panel protection level IP65
CE certification Compliance with CE Certification

7'' TFT HMI human machine interface system For Industrial Automation

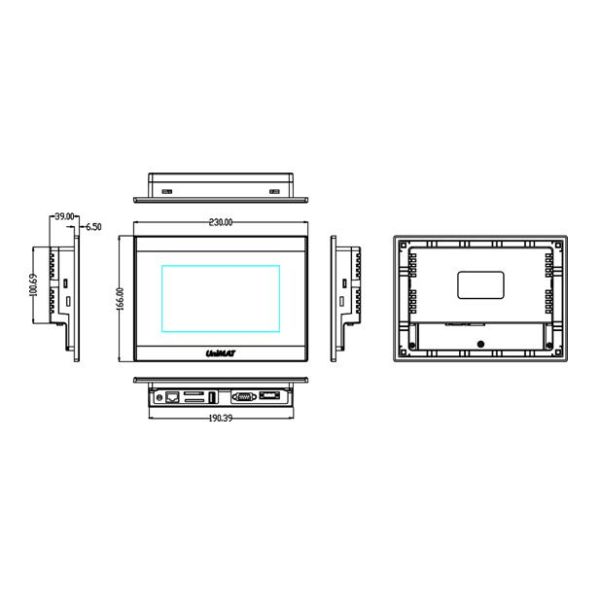

Dimension

7'' TFT HMI human machine interface system For Industrial Automation

Wiring Diagram

7'' TFT HMI human machine interface system For Industrial Automation
