LS-WJ28 series 8 inputs channel Current/Voltage signal to RS485/232 Converter, 24 Bits AD data acquisition

Features:
Eight analog signal acquisition, isolated converter RS-485/232 output
24-bit AD converter, accuracy>0.05%
4-20mA/0-20mA current signal or 0-5V/0-10V voltage signal input
RS-485/232 interface can be programmed calibration module accuracy
Signal input / output:3000VDC isolation
Wide supply range: 8 ~ 32VDC
High reliability, easy programming, easy to apply
Standard DIN35 rail mounting
User-programmable settings module address, baud rate, etc.
Support the Modbus RTU protocol
Low cost, small size modular design

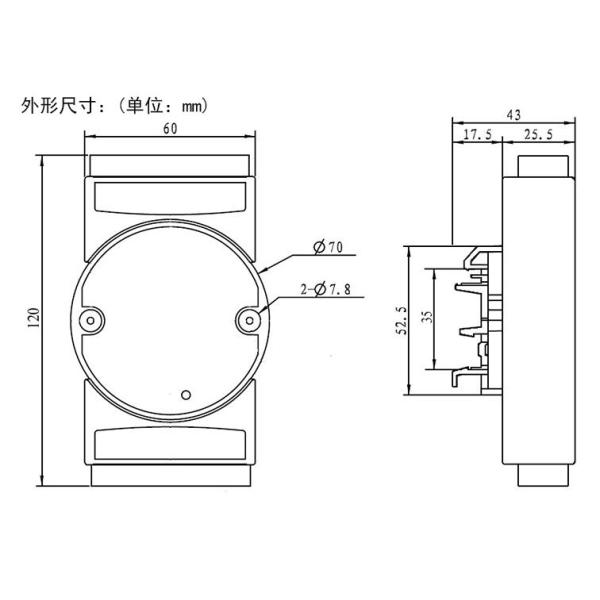

Size: 120x60x43mm

Typical applications:
signal measurement, monitoring and control
RS-485 remote I / O, data acquisition
application of intelligent building control, security engineering
industrial automation control system, the RS-232/485 bus

Industrial signal isolation and long-term transmission
equipment operation and monitoring
measurement of sensor signals
the industrial data acquisition and recording
medical, industrial and product development

Product List:

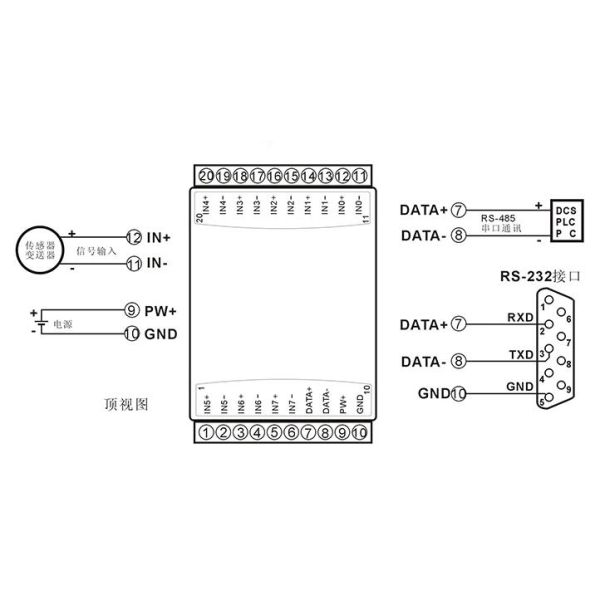

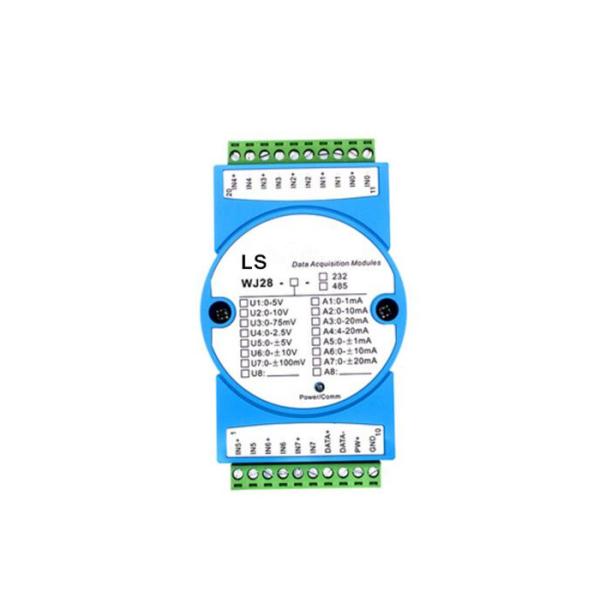

WJ28 - U(A)□ - □

Input voltage or current signal Communication Interface

U1: 0-5V A1: 0-1mA 485: RS-485 output interface

U2: 0-10V A2: 0-10mA 232: RS-232 output interface

U3: 0-75mV A3: 0-20mA

U4: 0-2.5V A4: 4-20mA

U5: 0-±5V A5: 0-±1mA

U6: 0-±10V A6: 0-±10mA

U7: 0-±100mV A7: 0-±20mA

U8: user-defined A8: user-defined

Selection Samples:
Part No.:WJ28-A4-485 (means 8 channels 4-20mA input,ouput is RS485 interface)
Part No.:WJ28-U1-232 (means 8 channels 0-5V input,output is RS232 interface)
Part No.:WJ28-U2-485 (means 8 channels 0-10V input,output is RS485 interface)
Part No.:WJ28-(A4)6(U2)2-485

(Means 6 channels 4-20mA input, 2 channels 0-10V input, output is RS485 interface)

How to set Modbus RTU communication protocol:

Module default protocol is character communications protocol. If you need to set the module to Modbus RTU protocol, please follow these settings:

1. Put INIT switch to INIT position.
2. Connect the power cord and the communication interface cable.
3. Turn on the power, the module enters the default state automatically, address 00, baud rate 9600.
4. Wait 5s, module is initialization.
5. Send the command $00P1(cr), check the response, if is !00 (cr), set successfully.
6. Turn off the power, INIT switch to the NORMAL position.
7. The module has been set to the Modbus RTU protocol mode successfully.

Note: when you order, please choose your input and output or note your Part No..
