SBR1045CTL-13 Optocoupler 13ms Fast Response 45V/100mA Low Power SMD -40°C to +85°C RoHS Compliant & Reliable

Features and Benefits

• Ultra-Low Forward Voltage Drop

• Excellent High Temperature Stability

• Patented Super Barrier Rectifier Technology

• Soft, Fast Switching Capability

Applications

• Switching Power Supplies

• DC-DC Converter

• Freewheeling Diodes

Mechanical Data

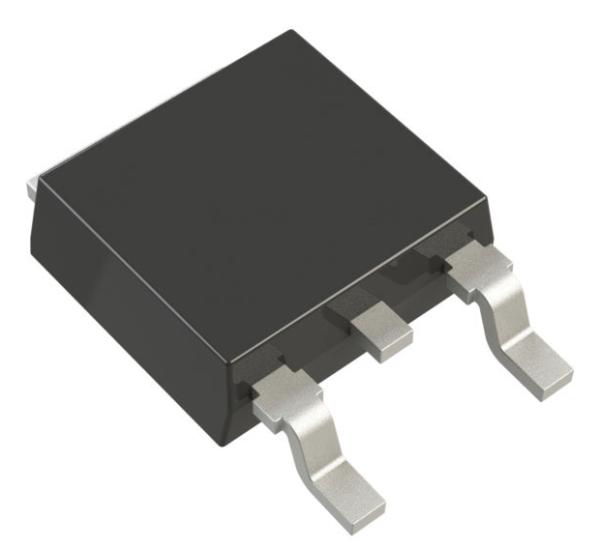

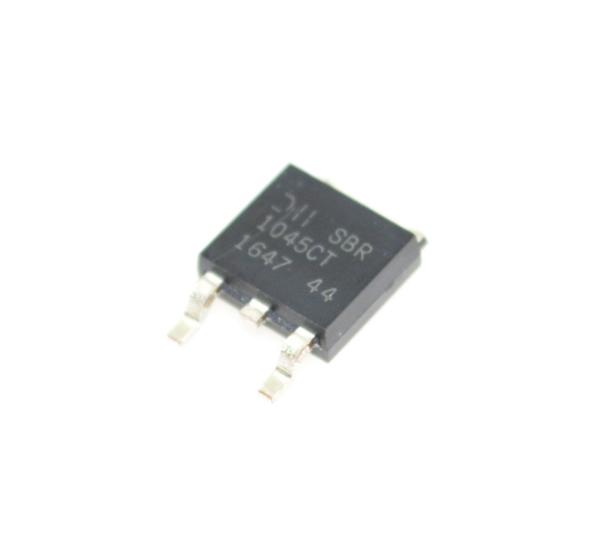

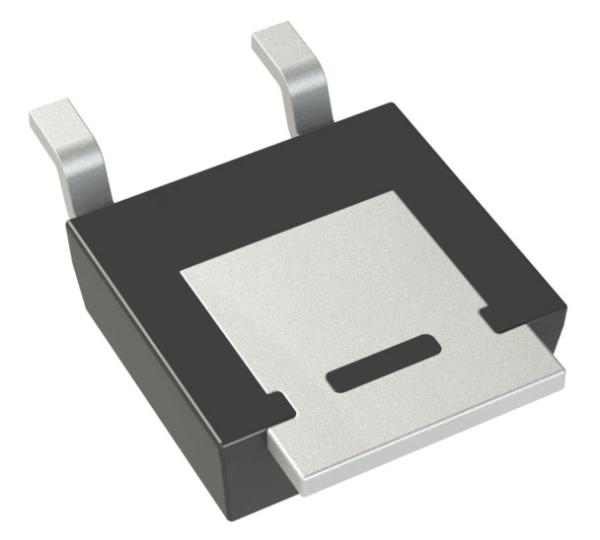

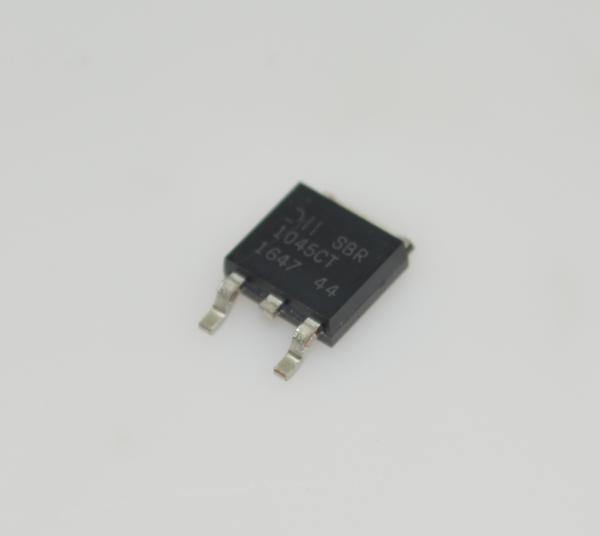

• Case: TO252 (DPAK)

• Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208

• Polarity: See Below

• Weight: 0.4 grams (Approximate)

Description

The SBR1045CTL-13 is a high-performance optocoupler designed for fast and efficient signalisolation in industrial, automotive, and consumer electronics applications. Featuring a 13ms ultra.fast response time, it ensures quick signal transmission while maintaining excellent noiseimmunity.

Ideal for power supplies, motor controls, PLCs, and digital isolation circuits, the SBR1045CTL13 ensures high reliability, noise isolation, and long-term stability. Upgrade your designs withthis high-speed optocoupler for superior signal integrity and protection.
