FP35R12KT4 1200V 35A PIM Module Low VCE(sat) Low Switching Loss Integrated NTC Isolated Copper Baseplate PressFIT Technology For Motor Drives and Industrial Inverters

Features

• 1200V / 35A PIM (Power Integrated Module)

• Integrated Topology: 3-Phase Rectifier, 3-Phase Inverter, Brake Chopper

• Advanced TRENCHSTOP™ IGBT4 and Emitter Controlled Diode

• Low Switching Losses for High Efficiency

• Low VCE(sat) with Positive Temperature Coefficient

• Integrated NTC Temperature Sensor

• Isolated Copper Baseplate (Excellent Thermal Performance)

• High Power and Thermal Cycling Capability

• Extended Operating Temperature (Tvj op = 150°C)

• Compact EconoPIM™ 2 Housing

Applications

• Motor Control and Drives: For pumps, fans, compressors, and general-purpose AC drives .

• Servo Drives and Motion Control Systems .

• Industrial Heating and Welding Equipment .

• Commercial HVAC Systems .

• Room Air Conditioners

Description

The FP35R12KT4 is a highly integrated 1200V, 35A Power Integrated Module (PIM) from Infineon's EconoPIM™ 2 family. It combines a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper in a single, compact, and isolated module . Built with advanced TRENCHSTOP™ IGBT4 and Emitter Controlled 4 diode technology, it is engineered for low switching losses and high efficiency . The module features an integrated NTC temperature sensor for accurate thermal monitoring, an isolated copper baseplate for excellent heat dissipation , and is designed for high power and thermal cycling capability . It supports an extended operating temperature up to 150°C

INFORMATION

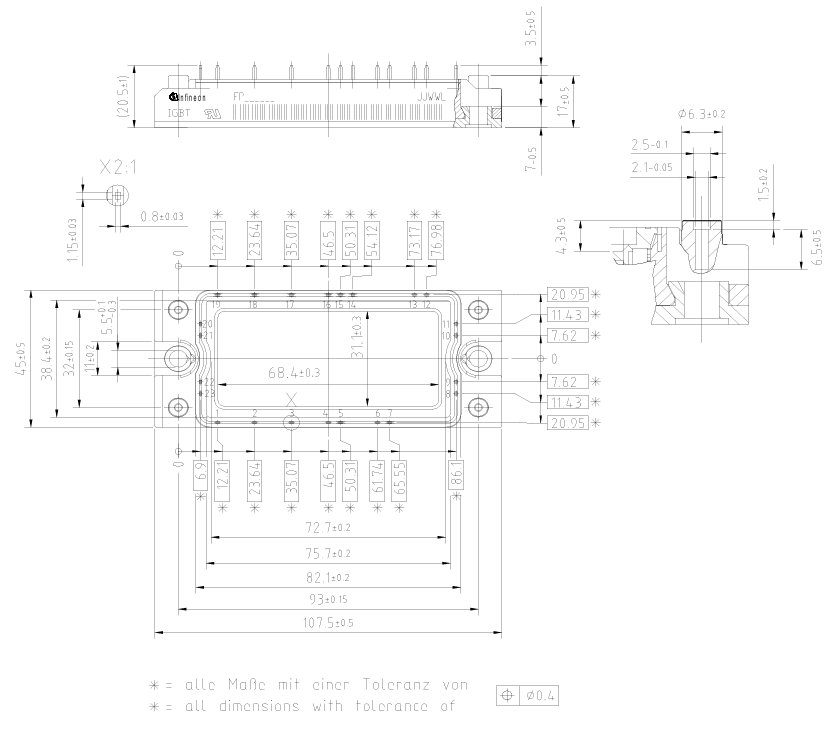

Drawing
