FS75R12KT3 1200V 75A IGBT Module Trenchstop IGBT3 Fast EmCon Diode Sixpack Configuration Integrated NTC Low Inductance High Power Density EconoPACK™2 for Drives

Features

• Technology: Employs fast trench/field-stop IGBT3 and Emitter Controlled High Efficiency (HE) diode, ensuring minimal switching losses and excellent thermal behavior .

• Low Saturation Voltage: Features a low VCE(sat) of typically 1.7V (max 2.15V @ 75A), reducing conduction losses and improving overall system efficiency .

• Module Configuration: Sixpack (three-phase inverter) configuration with a compact, industry-standard EconoPACK™2 package for easy assembly and interchangeability .

• Integrated NTC: Built-in NTC thermistor provides accurate real-time temperature monitoring for reliable thermal management and protection .

• Low Inductance: Features a low stray inductance module design, enabling clean switching and reduced overvoltage stress .

• High Power Density: Compact module concept delivers high power density, optimizing space in power conversion systems .

• RoHS Compliant: Manufactured with environmentally friendly, lead-free materials

Applications

• Motor Control and Drives: Ideal for general purpose motor drives, variable frequency drives (VFDs), servo drives, and industrial automation .

• Industrial Heating and Welding: Suitable for induction heating equipment and welding power supplies .

• HVAC Systems: Widely used in commercial and industrial room air conditioners and compressor drives .

• Renewable Energy: Applicable in solar inverters and other power conversion systems

Description

The FS75R12KT3 is a high-performance 1200V / 75A IGBT power module from Infineon's established EconoPACK™2 series, designed to deliver exceptional efficiency and reliability in demanding industrial power conversion systems . It utilizes advanced TRENCHSTOP™ IGBT3 technology combined with an EmCon High Efficiency diode, providing a perfect balance between low conduction losses and soft-switching performance

INFORMATION

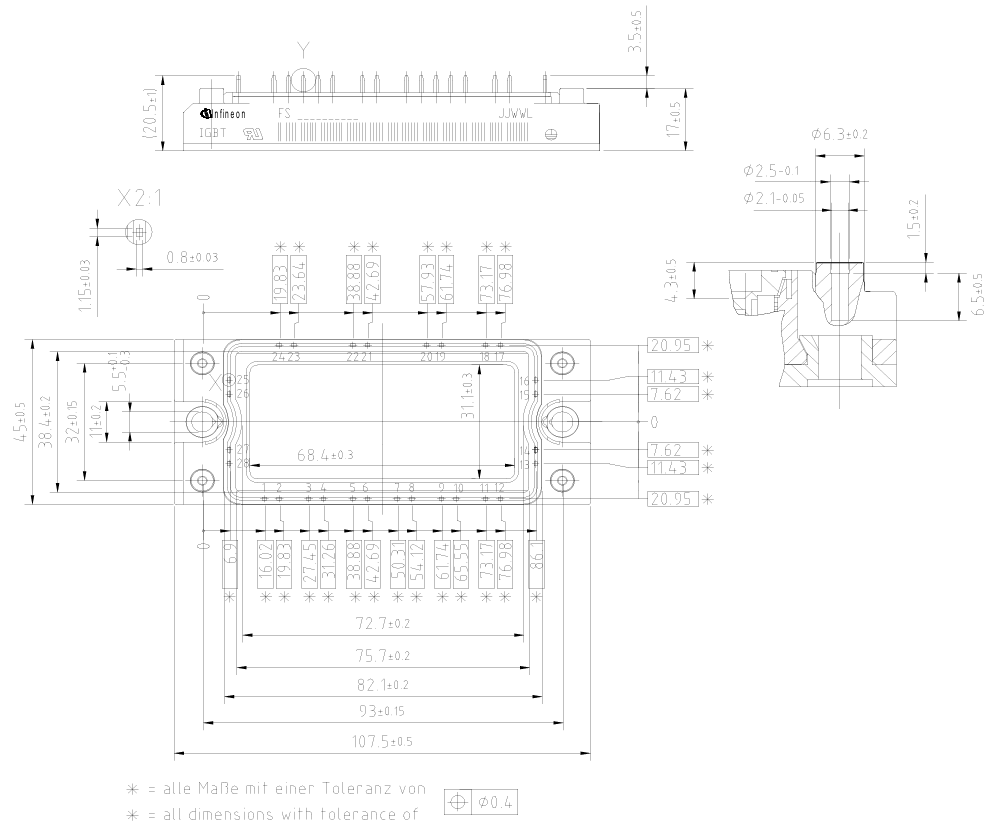

Drawing
