MIXA60WB1200TEH 1200V 60A CBI IGBT Module XPT Technology Low VCE(sat) Fast SONIC Diode 10μs SC Rating Integrated NTC E3-Pack for Drives and Solar​

Features

• Easy paralleling due to the positive temperature coefficient of the on-state voltage

• Rugged XPT design (Xtreme light Punch Through) results in:

• - short circuit rated for 10 µsec.

• - very low gate charge

• - square RBSOA @ 3x IC

• - low EMI

• Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)

• SONIC™ diode

• - fast and soft reverse recovery

• - low operating forward voltage

Applications

• AC motor drives

• Solar inverter

• Medical equipment

• Uninterruptible power supply

• Air-conditioning systems

• Welding equipment

• Switched-mode and resonant-mode power supplies

Description

The MIXA60WB1200TEH is a 1200V, 60A Converter-Brake-Inverter (CBI) IGBT module from Littelfuse/IXYS, packaged in the industry-standard E3-Pack . It combines advanced XPT™ (Xtreme light Punch Through) IGBT technology with fast and soft SONIC FRD™ diodes . The module integrates a three-phase input rectifier, brake chopper, three-phase IGBT inverter, and an NTC temperature sensor in a single compact, isolated package

INFORMATION

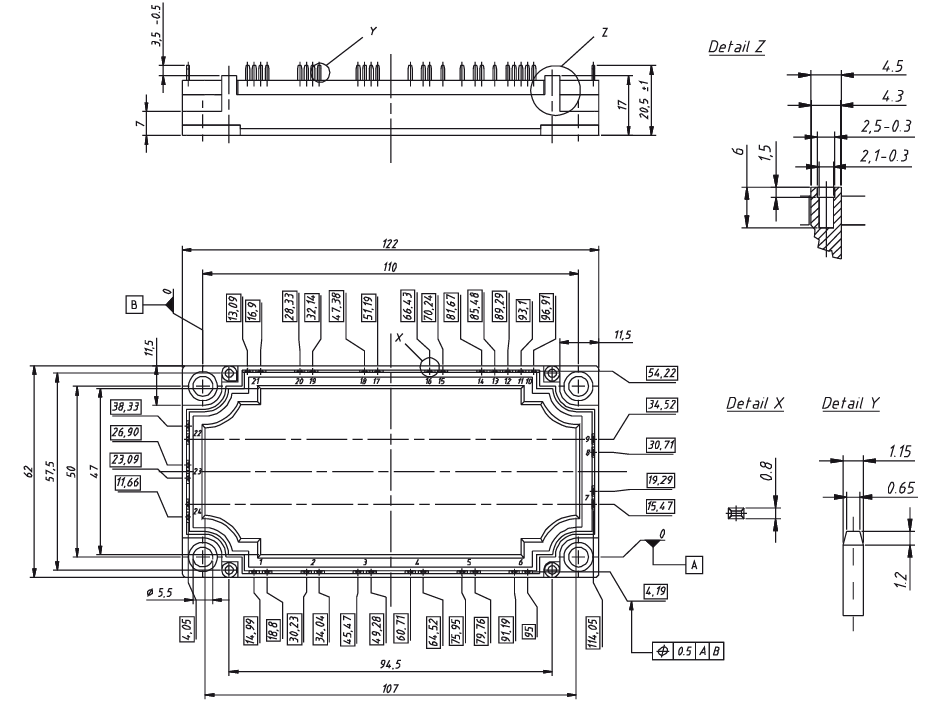

Drawing
