FS150R12KT4 1200V 150A Six IGBT Module Low VCE(sat) High Efficiency 10μs Short-Circuit Ruggedness Integrated NTC Compact EconoPACK+ Design Low Switching Losses Ideal for Drives and UPS

Features

• 1200V blocking voltage and 150A collector current rating

• Low VCE(sat) for reduced conduction losses

• Optimized switching losses for high efficiency

• 10μs short-circuit withstand capability

• Integrated NTC temperature sensor for thermal management

• High power density in EconoPACK™+ housing

• UL/CSA certified for industrial standards

• Press-fit contacts for reliable assembly

Applications

• AC motor drives and industrial inverters

• Uninterruptible Power Supplies (UPS)

• Industrial heating and welding systems

• Renewable energy inverters (solar, wind)

• Auxiliary converters for industrial equipment

Description

The FS150R12KT4 is a 1200V, 150A six-pack IGBT power module from Infineon's EconoPACK™+ series. It utilizes advanced TRENCHSTOP™ IGBT4 technology combined with Emitter Controlled 4 diodes, delivering low saturation voltage and optimized switching performance. The module features an integrated NTC thermistor for accurate temperature monitoring and a robust, compact design with press-fit mounting technology for reliable industrial applications.

INFORMATION

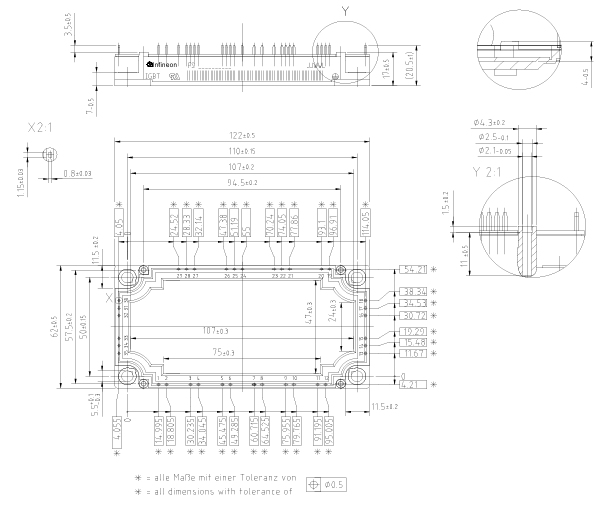

Drawing
