PM100CL1A060 600V 100A IPM 5th-Gen CSTBT™ Low VCE(sat) 1.75V Integrated Drive and Protection Chip Temp Sensor Error Output UL Recognized for Drives and Servo

Features

• 600V collector-emitter voltage (VCES) with 100A collector current (IC) rating

• 5th generation Full-Gate CSTBT™ chip technology for low saturation voltage (1.75V typ.)

• Built-in gate drive ICs with comprehensive protection: short circuit, over-temperature (chip surface detection), under-voltage

• Error output signal available from all upper and lower arm protection circuits

• 2500Vrms isolation voltage for safe mounting

• Monolithic gate drive and protection logic integrated

• Compatible L-series package design with screw mounting

• UL recognized for industrial safety standards

Applications

• General purpose inverters and industrial motor drives

• Servo drives and motion control systems

• Uninterruptible Power Supplies (UPS)

• Renewable energy systems (solar and wind power inverters)

• HVAC systems and industrial automation

• Welding equipment and power supplies

Description

The PM100CL1A060 is a 600V, 100A intelligent power module from Mitsubishi Electric's L-Series, featuring a three-phase IGBT inverter configuration with integrated gate drive and protection ICs in a flat-base type insulated package . It utilizes advanced 5th generation Full-Gate CSTBT™ chip technology for low loss operation and includes chip surface temperature detection for accurate over-temperature protection

INFORMATION

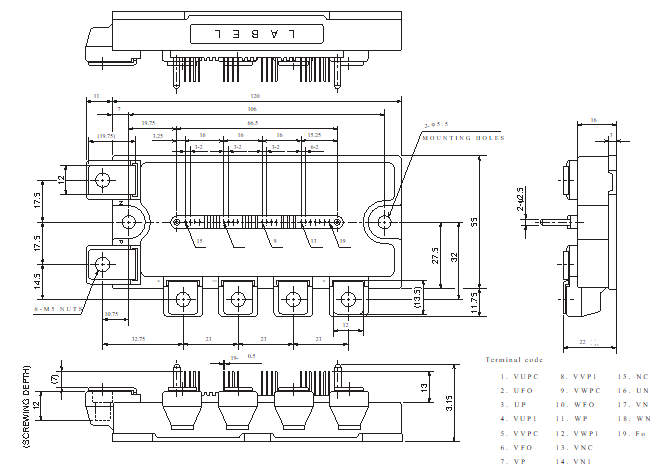

Drawing
