PM75RL1A120 1200V 75A IPM 7-Pack IGBT Low VCE(sat) 1.65V Integrated Drive and Protection NTC Sensor High Reliability Screw Mount Ideal for Drives and HVAC

Features

• 1200V collector-emitter voltage (VCES) with 75A collector current (IC) rating

• CIB topology: 3-phase converter, inverter, and brake circuit integrated

• Built-in gate drive ICs with protection functions (short circuit, over-temperature, under-voltage)

• Integrated NTC thermistor for real-time temperature monitoring

• 2500Vrms isolation voltage for safe mounting

• Low-loss 5th generation CSTBT™ chip technology

• Compact L1-Series package with screw mounting

• Error output signal available from all upper and lower arm devices

Applications

• Industrial motor drives and variable frequency drives (VFDs)

• Servo drives for robotics and CNC machinery

• Uninterruptible Power Supplies (UPS) systems

• HVAC systems and industrial automation

• Renewable energy inverters (solar, wind power)

• Welding equipment and induction heating

• Elevator and transportation systems

Description

The PM75RL1A120 is a 1200V, 75A intelligent power module from Mitsubishi Electric's L-Series, featuring a 3-phase CIB (Converter-Inverter-Brake) configuration . It integrates IGBT chips with monolithic gate drive and protection ICs in a compact, isolated package . The module utilizes advanced 5th generation CSTBT™ chip technology for optimized performance

INFORMATION

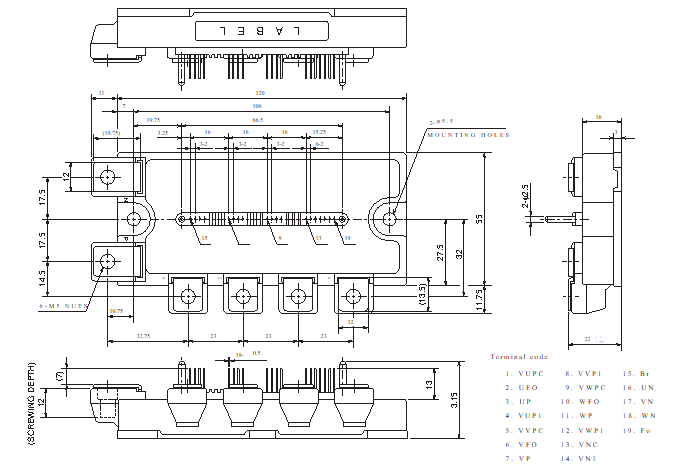

Drawing
