PM100RL1A120 1200V 100A IPM 5th-Gen CSTBT™ Low VCE(sat) 1.75V Integrated Drive Short-Circuit Protection Over-Temp Detection Error Output UL Certified for Drives

Features

• 1200V collector-emitter voltage (VCES) with 100A collector current (IC) rating

• 5th generation Full-Gate CSTBT™ chip technology for low saturation voltage

• Built-in gate drive ICs with comprehensive protection: short circuit, over-temperature (chip surface detection), under-voltage

• Error output signal available from all upper and lower arm protection circuits

• 2500Vrms isolation voltage for safe mounting

• Complete output power circuit with 7-Pac (3-phase inverter) configuration

• Compatible L-series package design with chassis mount capability

• UL recognized for industrial safety standards

Applications

• General purpose inverters and industrial motor drives

• Servo drives and motion control systems

• Power management and industrial automation

• Renewable energy systems (solar and wind power inverters)

• Uninterruptible Power Supplies (UPS)

• HVAC systems and industrial power systems

• Elevator traction drive and control systems

Description

The PM100RL1A120 is a 1200V, 100A intelligent power module from Mitsubishi Electric's L-Series, featuring a 3-phase IGBT inverter configuration with integrated gate drive and protection ICs in an isolated base module designed for power switching applications operating at frequencies up to 20kHz . It utilizes advanced 5th generation Full-Gate CSTBT™ chip technology for low loss operation and includes chip surface temperature detection for accurate over-temperature protection

INFORMATION

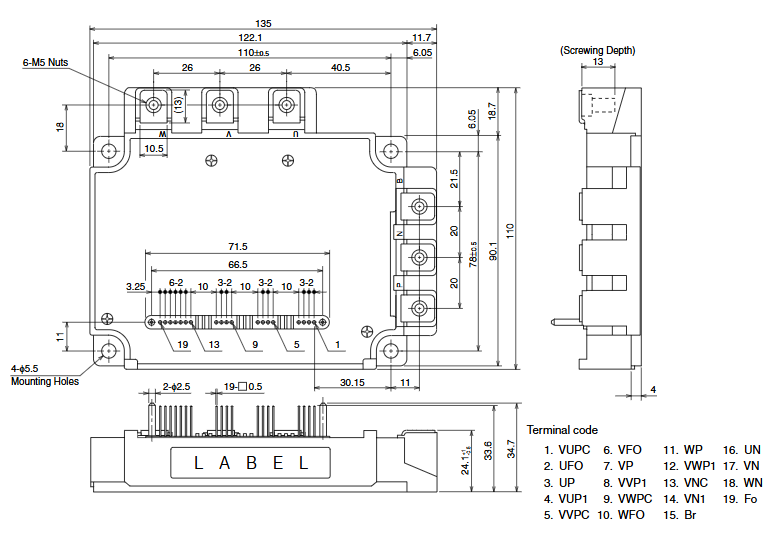

Drawing
