SKDH116/16-L105 1600V 116A IGBT Module 3-Phase Bridge Boost Chopper Integrated NTC High Surge Current 950A SEMIPONT6 Package Press-In Pin UL Certified for UPS and Drives

Features

• 1600V blocking voltage with 116A collector current rating

• Unique topology: 3-phase diode-thyristor bridge + boost chopper

• Integrated NTC thermistor for accurate temperature monitoring

• High surge current capability: 950A for robust overload handling

• SEMIPONT6 compact housing with two-screw mounting

• Press-in PCB terminals for reliable electrical connections

• Direct copper bonded (DCB) ceramic for excellent heat transfer

• UL recognized (File No. E 63 532) for safety compliance

Applications

• DC drives and controlled field rectifiers for DC motors

• Uninterruptible Power Supplies (UPS)

• Inverters and photovoltaic systems

• Controlled battery chargers

• Industrial motor drives and变频器

• Renewable energy systems (solar and wind power)

• Welding equipment and induction heating

• Industrial automation and power systems

Description

The SKDH116/16-L105 is a 1600V, 116A IGBT power module from SEMIKRON-Danfoss, featuring a 3-phase diode-thyristor bridge with integrated boost chopper and NTC thermistor in a compact SEMIPONT6 package . It utilizes advanced IGBT technology with low saturation voltage (2.1V typ.) and 10μs short-circuit withstand capability . The module offers high surge current rating of 950A and 2500V AC isolation voltage

INFORMATION

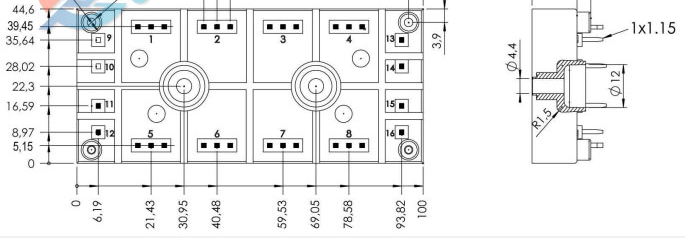

Drawing
