SKM75GB128DN 1200V, 75A Dual IGBT Module Low VCE(sat) 1.9V Fast Switching Integrated Diode 10μs SC Capability SEMITOP2 Package Press-Fit Pins UL Certified for Drives and Inverters

Features

• 1200V collector-emitter voltage (V CES) with 75A continuous collector current

• Low saturation voltage (VCE(sat)) for reduced conduction losses

• Fast switching capability with low turn-on and turn-off losses: Eon 5.7mJ, Eoff 4.7mJ (typ)

• CAL diode technology with fast reverse recovery time (~200ns) for efficient rectification

• 10μs short-circuit withstand capability at 150°C for enhanced robustness

• SEMITRANS™ 2N isolated package with high thermal conductivity ceramic substrate

• UL recognized for industrial safety standards

• Wide operating temperature range: -40°C to +150°C

Applications

• AC motor drives and industrial inverters

• Uninterruptible Power Supplies (UPS)

• High-frequency switching power supplies and converters

• Welding equipment and induction heating systems

• Solar inverters and renewable energy systems

• Industrial automation and servo drives

Description

The SKM75GB128DN is a 1200V, 75A dual IGBT power module from SEMIKRON, part of the SEMITRANS™ 2N series with SPT (Soft Punch Through) IGBT technology . It integrates two IGBTs with reverse-connected CAL (Controlled Axial Lifetime) diodes in a compact, isolated package designed for high-frequency switching applications up to 40kHz . The module features a high copper direct-bonded ceramic substrate for excellent thermal performance and is UL recognized

INFORMATION

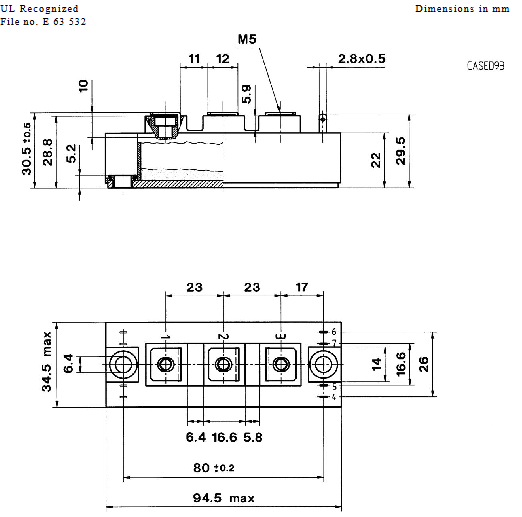

Drawing
