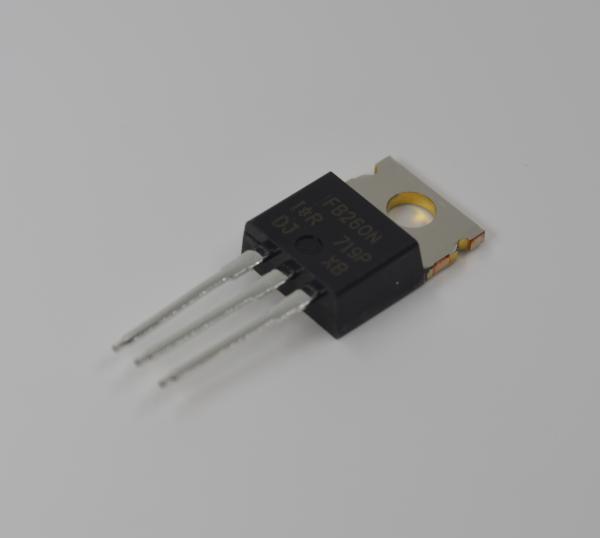

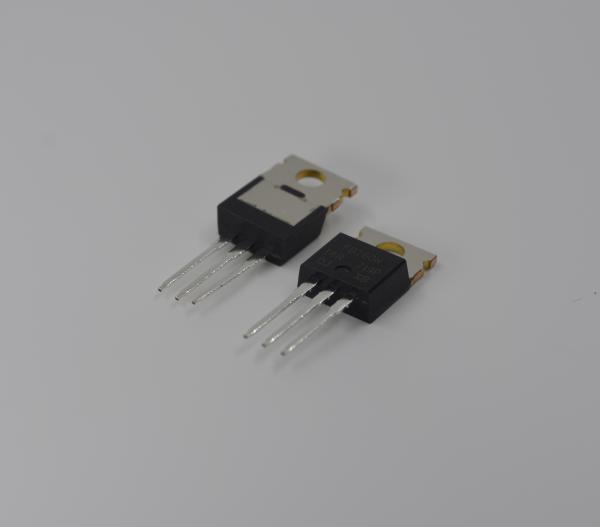

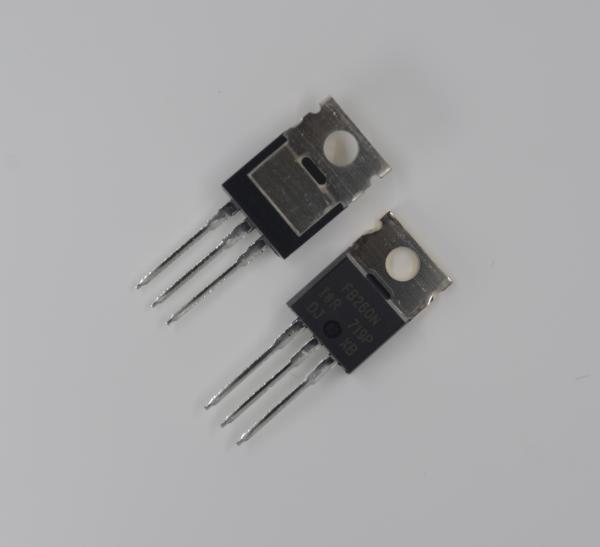

IRFB260NPBF N-Channel MOSFET 200V 46A Ultra-Low 19mΩ Rds(on) TO-220 Package Logic Level Fast Switching High Robustness Avalanche Rated for Motor & Power Conversion

Features

1:High Voltage Capability: A drain-source voltage (Vds) of 200V, making it suitable for high-voltage applications such as switch-mode power

supplies (after AC rectification, e.g., 85-265VAC), motor drives, and control systems.

2:High Current Handling: A continuous drain current (Id @ 25°C) of 46A, enabling it to handle high currents and deliver strong power processing

capabilities.

3:Extremely Low Conduction Losses: A maximum drain-source on-state resistance (Rds(on) @ Vgs=10V) of 19mΩ. This is one of its most critical advantages, as a low Rds(on) means lower power loss and heat generation during conduction, thereby improving overall system efficiency.

4:Logic-Level Drive: A standard drive voltage of 10V (some characteristics are provided at 4V Vgs), indicating it can be driven directly or via a

simple driver circuit by microcontrollers (MCUs), DSPs, or logic circuit outputs (typically 5V, 10V, 12V), simplifying design.

5:Fast Switching Performance: Excellent switching characteristics, such as low gate charge (Qg) and fast switching speed, help reduce switching

losses, making it particularly suitable for high-frequency applications like switch-mode power supplies (SMPS).

6:High Robustness and Reliability:

Avalanche Rated:

Capable of withstanding avalanche energy, meaning it is less prone to damage under extreme voltage spikes generated by inductive loads during turn-off, ensuring high reliability.

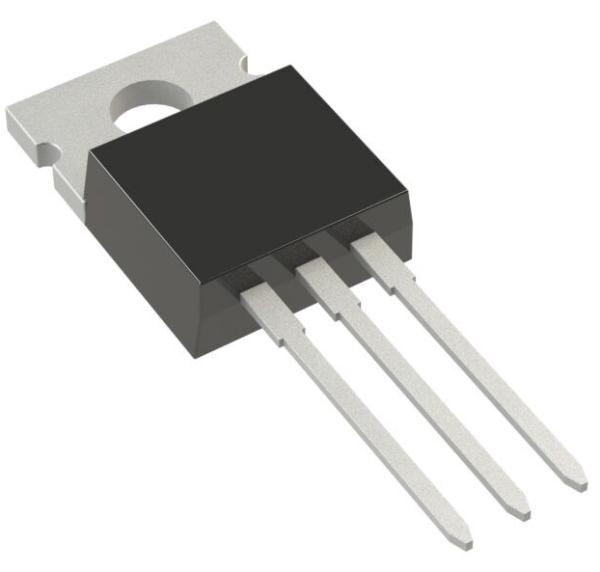

Mature TO-220FN package offers good mechanical strength and facilitates efficient thermal management with heat sinks.

7:Eco-Friendly Packaging: The product is compliant with RoHS standards and free of hazardous substances such as lead.

Applications

High frequency DC-DC converters

Lead-Free

Description

1:Switch-mode power supplies (SMPS), particularly power factor correction (PFC) and DC-DC converters

2:Motor drives and control systems (e.g., industrial motors, drone ESCs)

3:High-power DC-AC inverters (e.g., solar inverters)

4:High-current switching and load switching
