HUA WEI MINI PCIE 3G module EM770W HSDPA HSUPA WCDMA / GSM / EDGE Module

Specification :

• Model: EM770W
• Device Type: 3G Network Card
• Network type: WCDMA / GSM / EDGE
• Frequency range: HSPA/UMTS 850/900/1900/2100MHz
• GSM / EDGE: 1800/1900MHZ
• Interface Type: min PCI-E
• Transmission speed: HSUPA: 7.2Mbps Uplink 5.76Mbps downlink
• UMTS: 384Kbps (up / down)
• EDGE: 236.8Kbps (up / down)
• Operating System:Windows 2000/Windows XP/Windows Vista/ Windows 7/Linux
• UIM card slot: no
• Other: Support GPRS

Main Features:

• UMTS: 384kbps (uplink / downlink), EDGE: 236.8kpbs (uplink / downlink);
  2 HSPA / UMTS 850/1900/2100MHz, HSPA: 5.76Mbps uplink 7.2Mbps downlink
  3, Support for data services and short message;
  4, Support Windows2000/XP/VISTA/WIN 7/LINUX operating system;
  5, Support for UMTS 2100/1900/900/850 and GPRS/GSM1900/1800/900/850 band;
  6, Voice, SMS, data, phone book, supplementary services;
  7, Upport the FOTA functions
  8, Ssupport built-in TCP / IP protocol stack;
  9, Provide universal Mini PCI Express interface, the interface signals, including:
  10, Provides the main diversity antenna, diversity antenna interface;
  11, Supports the standard AT command set and extended AT command set Huawei;
  12, Support a special USIM card business;
  13, In line with ROHS environmental certification requirements.

Description :

Benefits
Easy upgrade path to new network technologies
Supports industrial requirements with extended temperature
Standard PCI Express MiniCard form factor

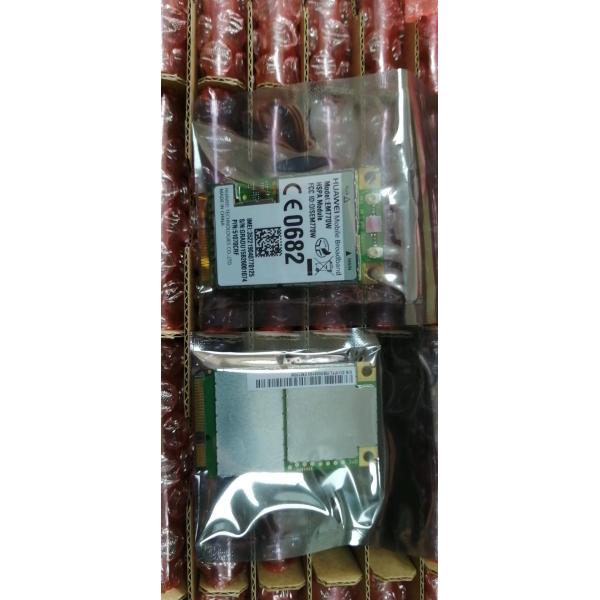

Module show:
