Long Range Wireless 470MHz 862MHz Digital TV Antenna
Long Range Wireless 470MHz 862MHz Digital TV Antenna
Long Range Wireless 470MHz 862MHz Digital TV Antenna
Long Range Wireless 470MHz 862MHz Digital TV Antenna
Long Range Wireless 470MHz 862MHz Digital TV Antenna
Long Range Wireless 470MHz 862MHz Digital TV Antenna
Specifications
Brand Name :
TOP
Model Number :
TOP-TV-03
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000pcs/month
Delivery Time :
5-7 working days after getting the payment
Packaging Details :
1pcs/box, 100 box/carton
Product Name :
Digital TV Antenna
Frequency Range :
174-230/470-862(MHz)
Feature :
Long Range
Gain :
30(dBi)
Input Impedance :
75 (Ω)
Type :
Tv Transmitting Antenna
Description

Wireless Digital TV Antenna , Long Range Tv Transmitting Antenna

Specification

Main Technical Specifications
Frequency Range (MHz) 174-230/470-862
VSWR ≤2.0
Gain (dBi) 30
Input Impedance (Ω) 75
Max input powet(W) 50
NoiseFactor ≤1.5dbi
Power consumption DC3-5V
Size 250*220mm
concentric cable 1.5C-2V
Polarization Type Vertical
Connector Type F头
Cable RG174

Electrical performance

Test Item Technical index
1 (Characteristic impedance) 75Ω
2 (temperature range) -40+70℃
3 (Frequency Range) 174-230/470-862
4 (Dielectric Withstand Voltage) 500V(rms)
5 (Contact resistance) ID≤5mΩ,OD≤2.5 mΩ
6 (Insulation resistance) ≥1000 mΩ
7 (Voltage standing wave ratio) ﹤1.5

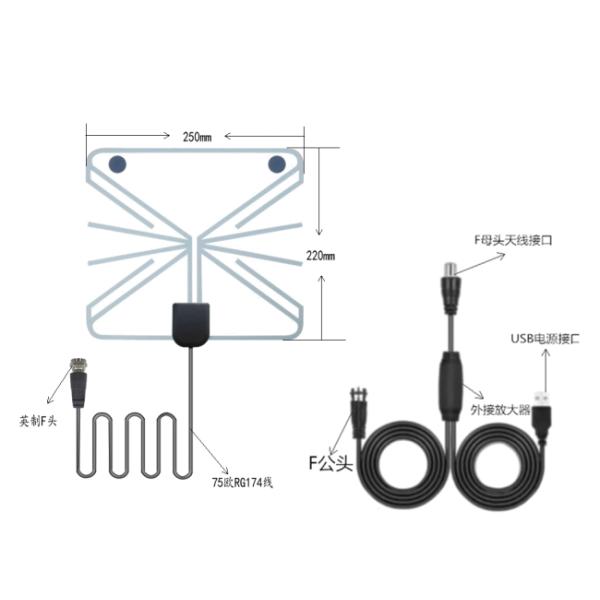

Drawing:

Long Range Wireless 470MHz 862MHz Digital TV Antenna

Details

Long Range Wireless 470MHz 862MHz Digital TV AntennaLong Range Wireless 470MHz 862MHz Digital TV Antenna
