Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Specifications
Model Number :
RTN910A
Type :
IP microwave
Place of Origin :
Guangdong, China, CHINA
Brand Name :
other, other
Use :
Mountainous plains, hilly lakes
Warranty Time :
1 year
Network :
TCP, Ip, POE
Product name :
IP microwave
application environment :
Mountainous plains, hilly lakes
Model :
RTN910A
weight :
11kg
interface type :
intermediate frequency interface
Intermediate frequency quantity :
2
Number of network ports :
4
packing list :
have
Packaging Details :
Carton or wooden box
Port :
Tianjin
Supply Ability :
8000 Unit/Units per Day
MOQ :
2 units
Price :
$2,323.00/units 2-49 units
Description
Product Video
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Product display

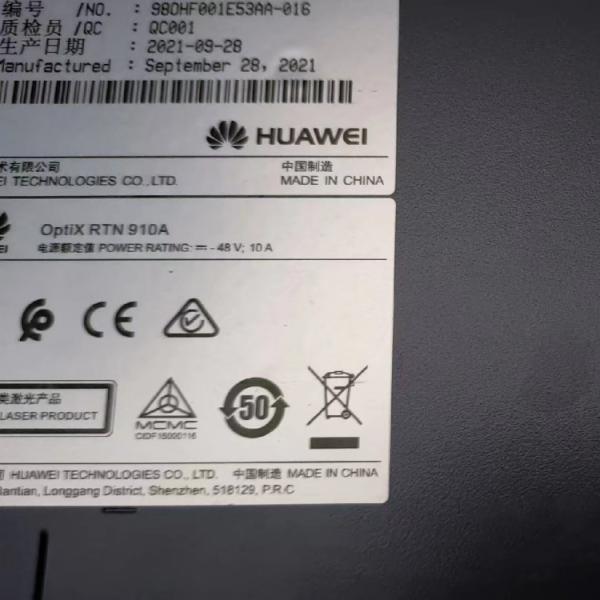

03050KCW SLJ1CSHRF01 RTN 910A basic configuration unit 2 * GE (RJ45)+4 * 10GE (SFP+)+16 * E1+2 intermediate frequency unit IDU module (-48VDC) with IDU installation accessories
Products Description
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Wireless Radwin Microwave Radio ODU and IDU Connection Equipment with 4 Network Ports
Network layer
Suitable for: access layer and aggregation layer
Frequency band
6 ~ 42 GHz
Channel spacing
3.5/ 7/14/28/40/56/112 MHz
Bandwidth
Determine based on ODU bandwidth
Modulation mode
QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM
Maximum number of RFUs
Based on the RTN910A technical specifications
RF direction
6
Air port capacity
Single carrier 1166~2500 Mbit/s (non XPIC)
Exchange capacity
90 Gbit/s (using CSHOF), 10 Gbit/s (using CSHO)
TDM交叉容量
32×32 VC-4
链路聚合
2-4
接口类型
E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o） ，10GE（o）
发射功率 @QPSK
Based on the RTN910A technical specifications
超级双频
Based on the RTN910A technical specifications
L3 VPN
Based on the RTN910A technical specifications
支持eCPRI
Based on the RTN910A technical specifications
射频配置方式
N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO
功能
Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP,
LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
业务类型
Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated
line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services)
L3VPN, L2VPN (VLL), CES, MCE
关键特性
CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS,
SDB, L3VPN, CA, MIMO
天线
Parabolic antenna: 0.3m~3.7m
IDU重量
5.4 kg（1+0） 6.2 kg（1+1）
IDU规格
442 mm × 220 mm × 88 mm
环境
Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
电源
-38.4 V~-57.6 V
证书
CE、RCM、 FCC、IC、ETL、MCMC
