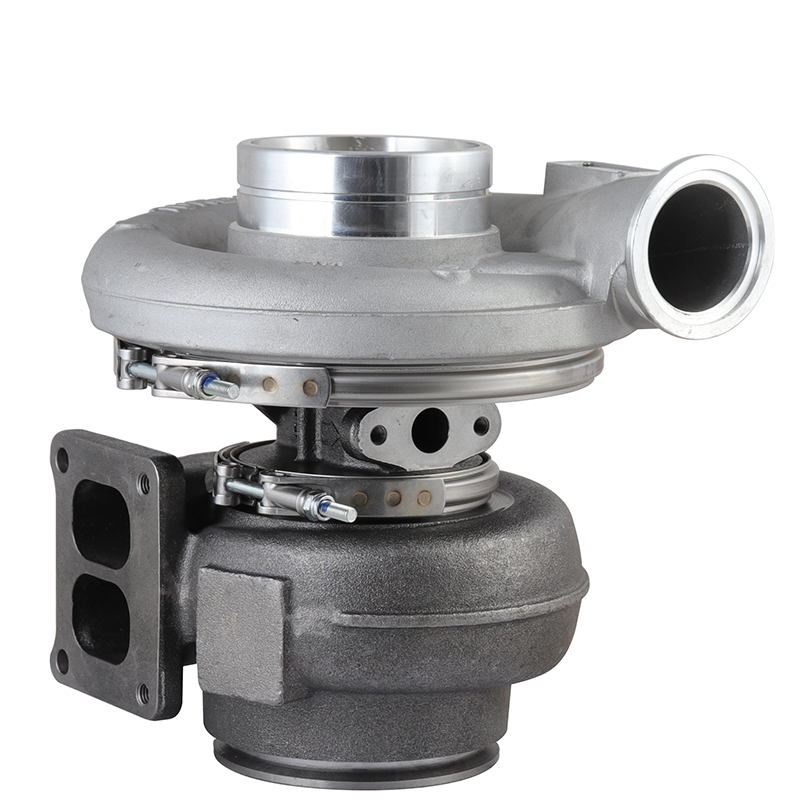

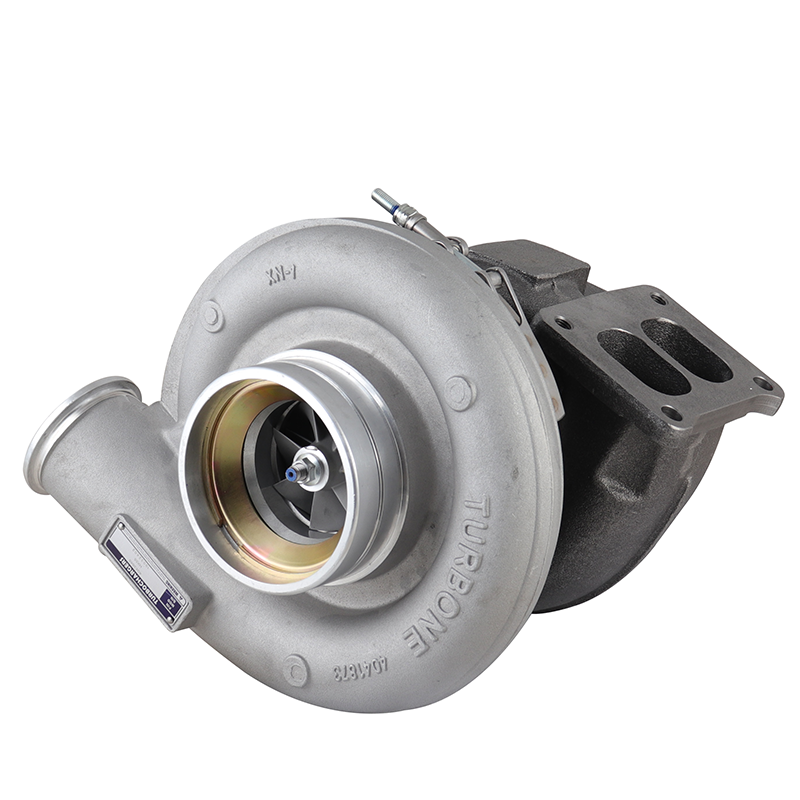

Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Specifications
Machinery Test Report :
Not Available
Video outgoing-inspection :
Not Available
Application :
Truck CURSOR 9
Place of Origin :
Guangdong, China
Marketing Type :
Ordinary Product
MOQ :
1 unit
Price :
$394 / unit
Condition :
New
MOQ :
1PC
Warranty :
6 months
Model :
HX55
P/N :
4043648 504179011 504213442 t
Brand Name :
HERUI
Part name :
Turbocharger
Delivery :
1-3 Days
Payment Term :
Trade Assurance TT \ TT
Showroom Location :
None
Quality :
High Guarantee
Type :
Aftermarket
Applicable Industries :
Manufacturing Plant, Retail, Construction works , Energy & Mining
Description
Turbocharger HX55 4043648 504179011 504213442 turbo charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Part Number
4043648
Previous Version
4041262, 4033185H, 4033185HX, 4033185
OEM number
504213442, 504179011, 504198900, 5041790110, 5042134420, 5041989000
Description
for Truck, Combine Harvester
Manufacturer Part Number
4043648, 4043649, 4044481, 4044953
Turbo Model
HX55
Engine
CURSOR 9
Engine Manufacturer
for
KW
350/360 HP
Fuel
Diesel
Angle α (compressor housing)
270°
Angle β (turbine housing)
90/270°
Bearing Housing
3590231 (4039258)
Turbine Wheel
4042782 (Ind. 85.85 mm, Exd. 71.95 mm, 12 Blades)
Comp. Wheel
3593629 (4040739, 4040740, 4041666)
(Ind. 65.12 mm, Exd. 97.66 mm, 7+7 Blades, Superback)
(1200016217)
Back plate
3528096 (1153055300, 1800016024)
Heat shield Number
3529846 (3533038)(1153055340)
Repair Kit
53277110079 (53277110500)
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
We could supply spare parts as following:

1. Hydraulic parts: hydraulic pump, main control valve, hydraulic cylinder, final drive travel motor, swing motor, travel gearbox, swing gearbox, gear pump, pump regulator, etc.

2. Engine parts: engine ass’y, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, injector, oil pump, feed pump, oil cooler, filter, turbocharger, starter motor, alternator, water pump, fan blade, liner kits, bearings, valves, gasket kit, etc.

3. Undercarriage parts: teeth, adjust cylinder，track spring assembly, track link guard, front idler, track roller, carrier roller, track link, track shoe, sprocket, etc.

4. Electric parts: controller, monitor, panel, throttle motor, solenoid valve, solenoid coil, wire harness, switch, sensors, relay, working lamp, etc.

5. Other parts: seal kit, floating seal, pressure test tool, radiator, joystick, foot pedal valve, o-ring box, coupling, swing circle, engine hood, swivel joint, fuel tank, filter, boom, arm, bucket etc.
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Turbocharger HX55 4043648 504179011 504213442 Turbo Charger for HOLSET Truck CURSOR 9
Q. When will get the items after I place order? A. Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order. Q. If I only know the excavator model, but can not offer parts No., what should I do ? A. If possible, you can send us pictures of old products, nameplate or the size for reference. Q. How can you guarantee the quality? A. We will 100% test the goods before delivery. If you meet with quality problem, we promise to replace goods or return your funds. Q. How long will it take to delivery to my address? A. The normal delivery time is 3-5 days, depending on which country you are in. Q. Do you accept sample order? A. Yes, sample order can accept. Q: What's package? Can you give me the package according my requirement? A. We usually packed by standard exported box or carton. And yes we can pack as per your requirement. Q: What's brand you can offer in your company? A. OEM, aftermarket, original, as per your need.
