240kg/H 180kg/H Tandem Extruder Photovoltaic Wire String Extrusion One Step 200m/Min
240kg/H 180kg/H Tandem Extruder Photovoltaic Wire String Extrusion One Step 200m/Min
Specifications
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C, T/T, D/P, D/A
Name :
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line
Keyword :
Tandem Extruder
Application :
extrusion of photovoltaic cable insulation/sheath wire.
Applicable conductor :
2.5mm--6.0mm
Finished outer diameter :
φ4mm-φ8mm
Design speed :
Max 250m/min;
Insulation/sheath material :
LSOH/XLPE;
Extrusion capacity :
240kg/h 180kg/h
screw L/D :
25:1
Description

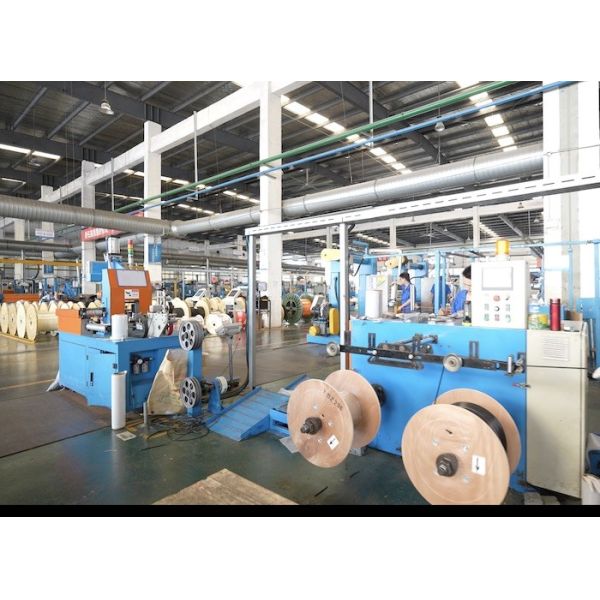

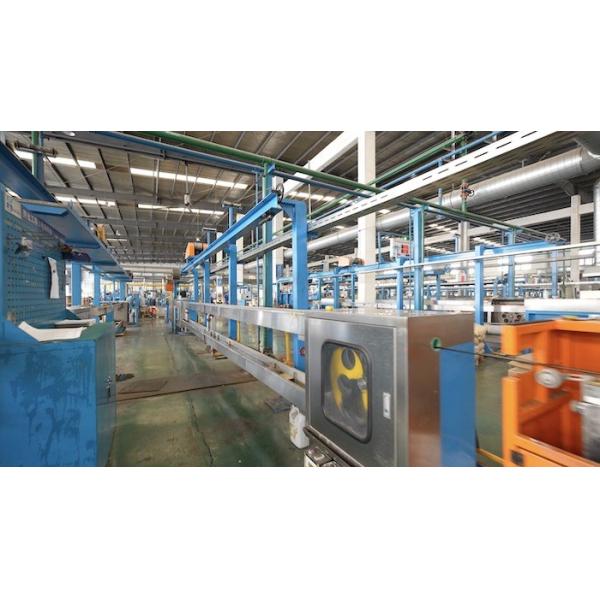

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min

Ideal for Single or Multi-Layer Insulation
Whether you're producing single-core or multi-layer cables, our system supports both.
Reduced Material Waste
Precision control systems minimize over-extrusion, saving on material costs.
Excellent Surface Finish
Polished dies and balanced cooling ensure a smooth and clean cable surface.

PV Cable is a special connection cable in solar power generation system, used for series connection between components and power transmission from components to inverter. Its core value lies in:
Weather resistance: long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environment;
Safety: flame retardant, low smoke zero halogen (LSZH), reducing fire risks;
Electrical stability: low resistance design, reducing energy loss and improving system efficiency;

Applications:

Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting the requirements of TUV and UL certification;

Main process parameters:

Applicable conductor φ1.8mm-φ7.0mm;
Finished outer diameter φ3mm-φ10.0mm;
Maximum line speed Max 250m/min;
Insulation/sheath material LSOH/XLPE;
Extrusion capacity 80mm auxiliary machine: 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
Extrusion capacity 90mm main machine: 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1
