35mm 50mm PVC Nylon Wire String Extrusion Cable Extruder Machine
35mm 50mm PVC Nylon Wire String Extrusion Cable Extruder Machine
Specifications
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C, T/T, D/P, D/A
Name :
Pvc+Nylon Wire String Extrusion One-Step Extrusion Production Line
Keyword :
Pvc Cable Extruder Machine
Application :
one-time extrusion of PVC+nylon cable insulation.
Design speed :
Max 300m/min
Extrusion materials :
PVC, XLPE, PA6, PA66, etc
Inner layer main machine specifications :
φ50mm, φ70mm, φ90mm
Inner layer auxiliary machine specifications :
φ35mm, φ50mm
Outer layer nylon main machine specifications :
φ35mm, φ50mm, φ70mm
Applicable conductor core wire diameterφ :
1.0mm-φ6.0m
Finished outer diameter :
φ1.5mm-φ7.0mm
Description

Pvc+Nylon Wire String Extrusion One-Step Extrusion Production Line

1. High configuration, low energy consumption, high production efficiency;
2. Screw-high accuracy, good plasticization, high surface luster on the wires, and the core of the wires is continuous and smooth;
3. All electrical appliances use international front -line brands, the production line has good stability, strong work continuity, and long life;
4. The product temperature control accuracy is high, and the temperature is stable (using japan -Rkc);
5. The gear box tooth surface is treated with high -end cymbals, and precision grinding, with anti -wear and small noise;

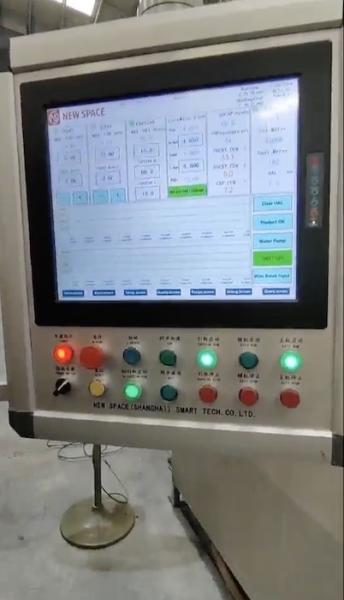

6. PLC is controlled by computer control, which is more convenient to operate.

Nylon sheathed cables are widely used as construction cables in North America. They can also be used for aircraft low-voltage lines, line installation of highway monitoring equipment, dedicated lines for highway inductors, lighting fixture wiring, and highway high-pole lamp lines.

Applications:

Applicable to one-time extrusion of inner layer (with color strip) + outer nylon sheath

Main process parameters:

Extrusion materials PVC, XLPE, PA6, PA66, etc
Inner layer main machine specifications φ50mm, φ70mm, φ90mm
Inner layer auxiliary machine specifications φ35mm, φ50mm
Outer layer nylon main machine specifications φ35mm, φ50mm, φ70mm
Applicable conductor core wire diameterφ 1.0mm-φ6.0m
Finished outer diameter φ1.5mm-φ7.0mm
Maximum line speed: Max 300m/min
