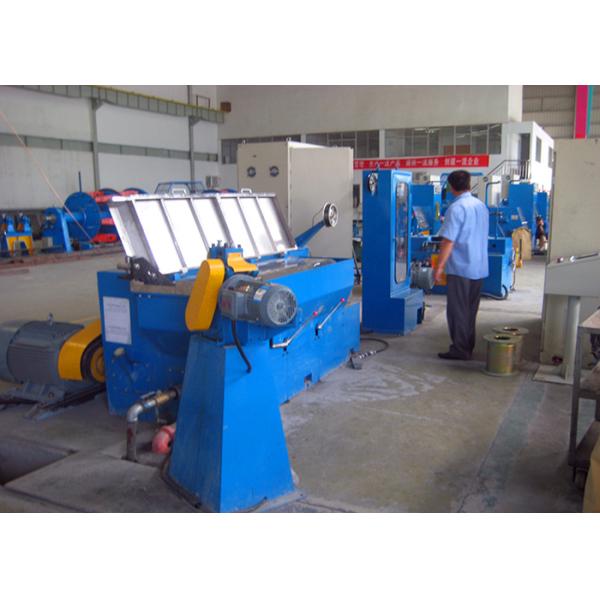

Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
NEWLEAD
Model Number :
17DG
Price :
Negotiation
MOQ :
1 Unit/Units
Certification :
ISO CE
Supply Ability :
1 set in 60 days
Delivery Time :
8 weeks
Packaging Details :
wooden pallet or by wooden box
Usage :
Drawing
material :
copper clad steel
usage :
copper wire drawing machine
inlet :
2.6-3.0mm
outlet :
0.6-1.2mm
After service :
Engineers for oversea service
Description

17DG Copper clad steel wire Intermediate wire drawing machine

Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type

machine type 17MD 17DG
inlet diameter(mm) φ2.6-φ3.0 ￠1.2-￠2.6
outlet diameter(mm) φ0.6-φ1.2 ￠0.5-￠1.0
drawing line speed(MPM) 1200 800
drawing dies No./Max 17 17
fix speed capstan slip ratio 11％ 8％
slip ratio of m/c 15％ 12％
capstan tungsten　
capstan dia.(max.)(mm) ￠257 ￠254
fix speed capstan dia.(mm) ￠254 ￠254
frame ironed cast
main motor 45KWthree phase inductor motor 45KWthree phase inductor motor
spooler motor 15KWthree phase inductor motor 15KWthree phase inductor motor
revise system PID synchronous spooler
inverter control Dual inverter control
transmission type precision gear chain
send-out method over head
traversing unit flat belt + timing motor flat belt + timing motor
tension control weight balance by swing arm pneumatic balance by swing arm
lubrication system of wire drawing spray +spray
suitable diameter of spool (mm) φ400,φ500,φ630 ￠500,￠630
capacity for wire receiving(kg) 100-300 100-300
bobbin loading & unloading type shaft type
power source 380V 380V
brake magnetic brake pneumatic brake
machine dimension(mm) 3500L+1200W+1250H 3500L×1200W×1250H
machine weight(kg) 4800 4800

Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type

Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type

Copper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft TypeCopper Clad Steel Wire Intermediate Wire Drawing Machine 17DG Shaft Type
