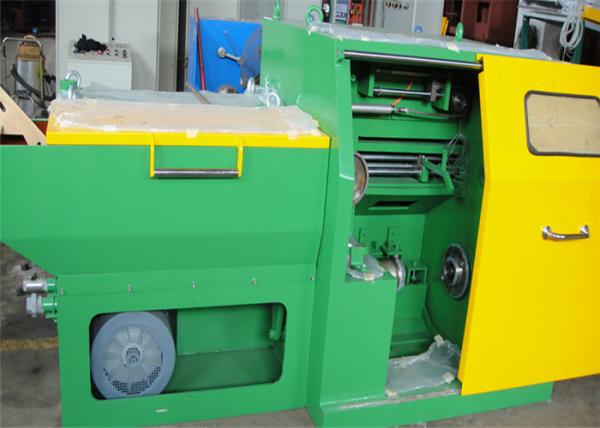

22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
22DH High Speed Wire Drawing Machine , Copper Wire Manufacturing Machine With Dual Inverter Control
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
RBO
Model Number :
22DH
Certification :
CE
Price :
Negotiation | 1 Unit/Units super fine wire drawing machine (Min. Or
MOQ :
1 Unit/Units
Packaging Details :
Wooden plate
Condition :
New
Inlet Diameter :
1.6
Outlet Diameter :
0.2-0.7
Voltage :
380V
Power(W) :
15+15KW
Dimension(L*W*H) :
2400L*1350W*1970H
Weight :
4500
Warranty :
1 YEAR
After-sales Service Provided :
Engineers available to service machinery overseas
Material :
1.6mm copper wire
Usage :
Fine wire drawing machine
Advantage :
Big bobbin take up
Description

22DH Fine wire drawing machine Inlet 1.6mm ,outlet 0.2-0.7mm PND 500-630 metal bobbin take up

Advanced desgin

1. Big inlet 1.6mm

2. Big outlet range 0.2-0.7mm

3. Big take up bobbin PND500-630 Capacity 200-500kg/bobbin ,saving change spool time in the producing process

4. High speed Max 200mpm

machine type 22DH
inlet diameter(mm) 1.6
outlet diameter(mm) 0.2--0.7
drawing line speed(MPM) 2400
drawing dies No./Max 22
slip ratio of m/c 15%
fix speed capstan slip ratio 13%

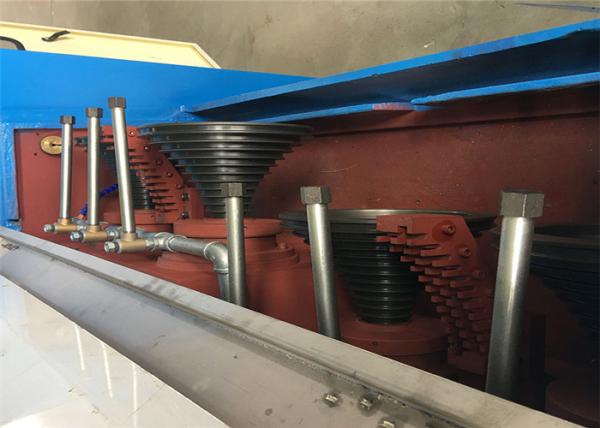

capstan ceramic plasma
capstan dia.(max.)(mm) φ194
fix speed capstan dia.(mm) φ159
frame ironed cast
main motor 15KW three phase inductor motor
spooler motor 15KW three phase inductor motor
revise system Dual inverter control
inverter control Dual inverter control

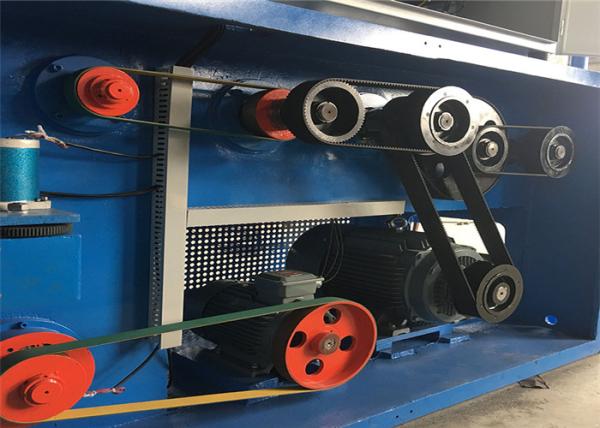

transmission type flat belt
send-out method over head
traversing unit flat belt + timing motor
tension control weightbalance by swing arm
lubrication system of wire drawing spray
suitable diameter of spool (mm) φ500-630
capacity for wire receiving(kg) 200-300-60
bobbin loading & unloading type shaft type
power source 380V
brake pneumatic brake
machine dimension 2450L×1400W×1970H
machine weight 4500
