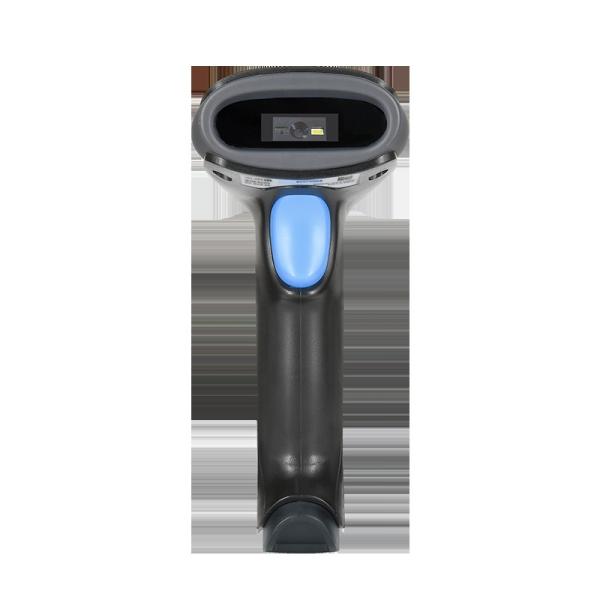

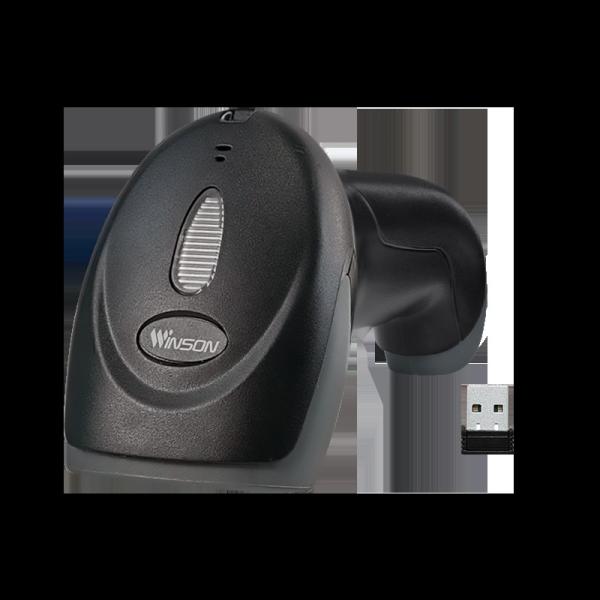

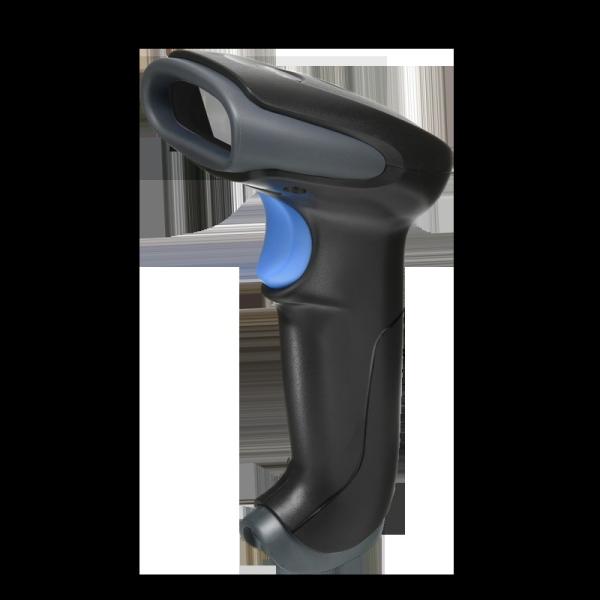

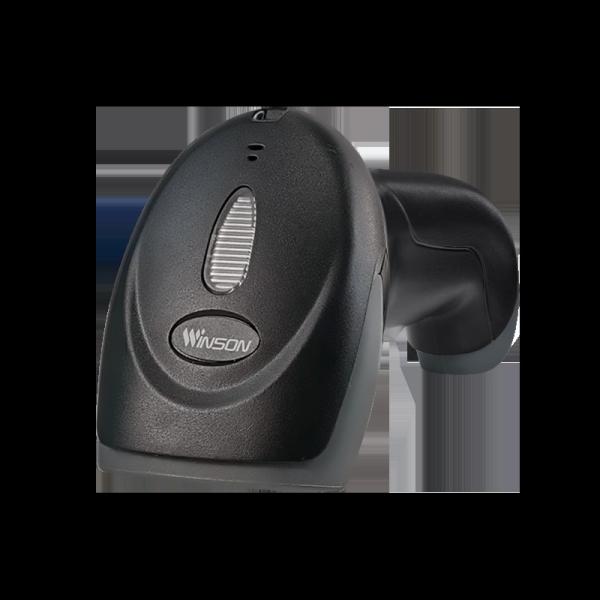

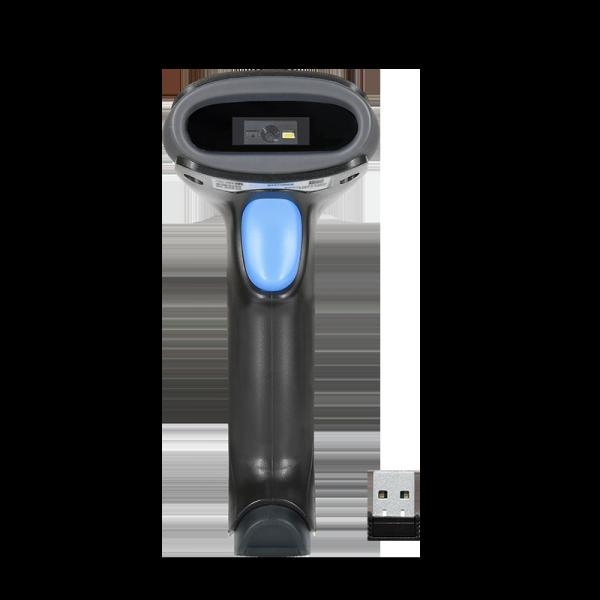

Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Specifications
private mold :
Yes
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb, PS/2
max paper size :
n/a
optical resolution :
648 x 488 pixel
scan speed :
350 ±50 scans/second
Brand Name :
winson
Place of Origin :
Guangdong, China
warranty(year) :
1-Year
after-sales service :
Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Communication mode :
Wired transmission mode
Communication frequency :
2.400GHz - 2.483GHz ISM band
Transmission range :
50~80m(In empty area )
Battery capacity :
2000mAh (Lithium battery)
Charge Time from Empty to Full Charge :
4H
Continuous working hours :
8H
Memory :
The flash is 16M and stores 2 million characters
Interface Supported :
RS232/USB HID KEYBOARD/USB VCP
Input Voltage :
DC 5V±5%
Current :
Max:220mA
Description
Product Description
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Handheld Portable 1D 2D Laser Barcode Scanner WiFi Wireless Data Collector Android Inventory Data Import/Export Stock
Specification
Communication mode
Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode
Communication frequency
2.400GHz - 2.483GHz ISM band
Transmission range
50~80m（In empty area ）
Battery capacity
2000mAh (Lithium battery)
Charge Time from Empty to Full Charge
4H
Continuous working hours
8H
Memory
The flash is 16M and stores 2 million characters
Interface Supported
RS232/USB HID KEYBOARD/USB VCP
Input Voltage
DC 5V±5%
Current
Max:220mA
Image Sensor
CMOS Array Sensor
Sensor Resolution
640 X 480 Pixels
Light Source
white LED
Aiming light source
RED LED
Decoding speed
60FPS
Scanning Angle
Pitch angle:±65°;Skew angle:±65°;Tilt angle:±360°
Field of View
36H),27V)
Min Resolution
≥20% UPC/EAN 13（13mil）
Language
Multiple Languages
Data Edition
Support for custom data output
Decode Capability
1D:EAN-13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar， Code 128，Code93，ITF-14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Standard 2 of
5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey， GS1-Composite2D:QR Code，Data Matrix，PDF417，Micro PDF417，Micro QR，
Aztec，Maxi Code，HanXin code
Weight
scanner :160g
Lampstand:1g
Indicator
Beeper, LED
Dimensions
scanner :95mm*65mm*160mm(L*W*H)
Lampstand:14mm x7mm x 19mm(L*W*H)
Shock Drop Test
1.5m drop onto concrete surface
