Fully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories Brass
Fully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories Brass
Specifications
Brand Name :
KUAILI
Model Number :
Spade Terminal
Certification :
ROSH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, D/P, D/A, T/T,
Supply Ability :
100000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Color :
Red Blue Yellow
Material :
Pure Copper
Wire size :
0.5-1.5,1.5-2.5,4-6mm2
Description

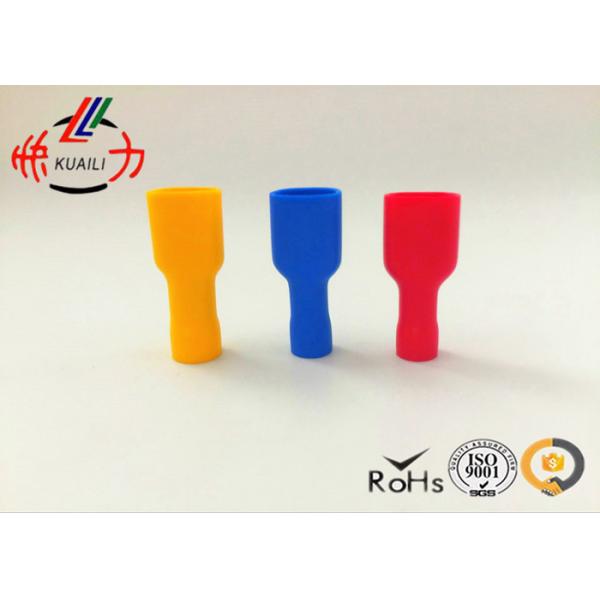

Fully vinyl insulated female disconnects, terminals, FDFD accessories, Wire connectors, Brass

Fully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories Brass

Conductor section:0.5-1.5mm2 (A.W.G22-16) 1max=10A

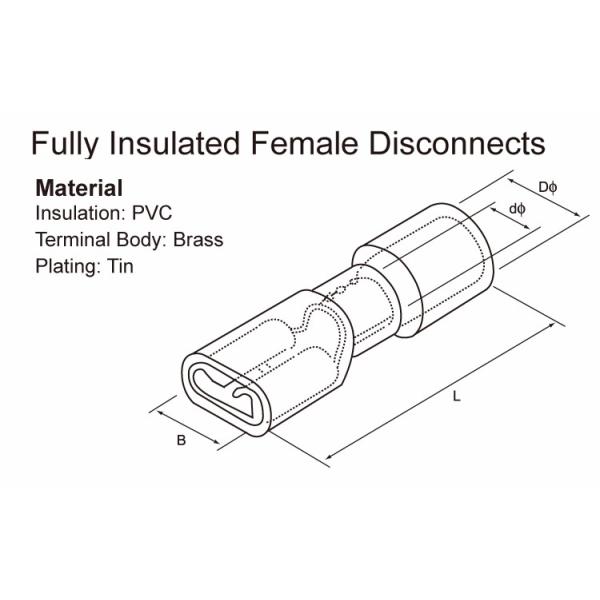

ITEM NO. Nematad(mm) Dimension(mm) Color
B DΦ dΦ L

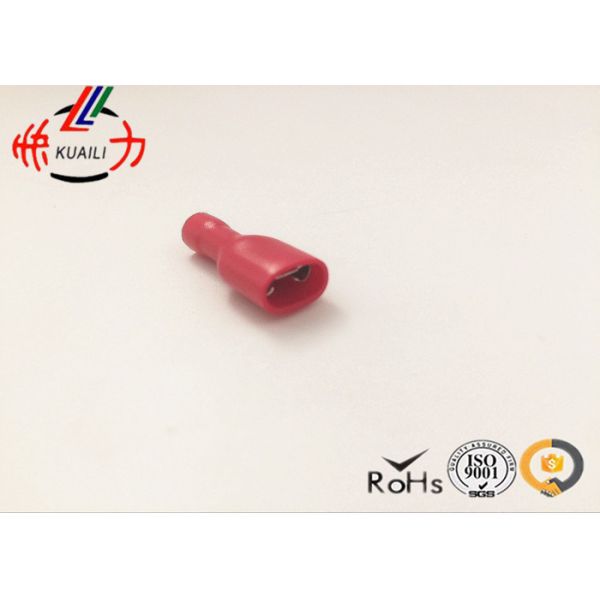

FDFD1.25-110(5) 0.5×2.8 3.2 3.8 1.7 20 Red
FDFD1.25-187(5) 0.5×4.75 5.6 3.8 1.7 20
FDFD1.25-187(8) 0.8×4.75 5.6 3.8 1.7 20
FDFD1.25-250 0.8×6.35 7.4 3.8 1.7 21.5

Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=15A
ITEM NO. Nematad(mm) Dimension(mm) Color
B DΦ dΦ L

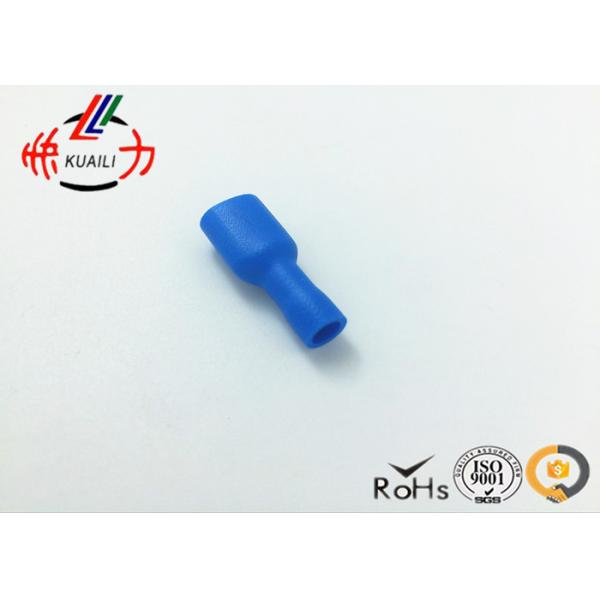

FDFD2-110(5) 0.5×2.8 3.2 4.3 2.3 20 Blue
FDFD2-187(5) 0.5×4.75 5.6 4.3 2.3 22
FDFD2-187(8) 0.8×4.75 5.6 4.3 2.3 22
FDFD2-250 0.8×6.35 7.4 4.3 2.3 24

Conductor section:4-6mm2 (A.W.G 12-10) 1max=24A
ITEM NO. Nematad(mm) Dimension(mm) Color
B DΦ dΦ L

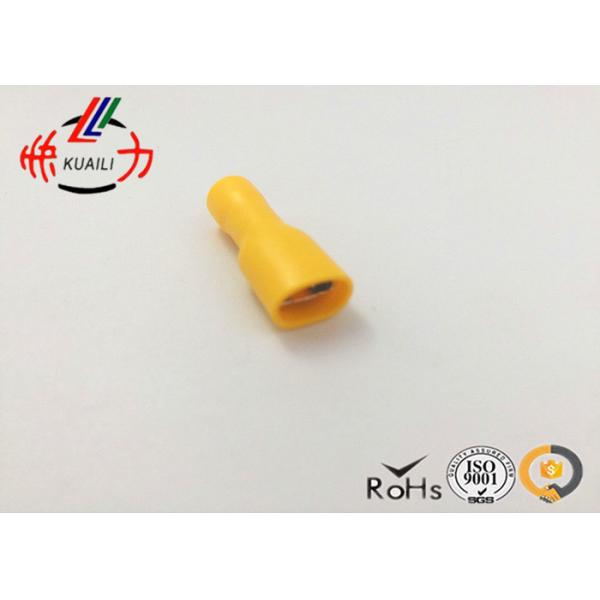

FDFD5.5-187(5) 0.5×4.8 5.6 5.7 3.4 23.8 Yellow
FDFD5.5-250 0.8×6.35 7.4 5.7 3.4 25.5

Fully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories BrassFully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories BrassFully Vinyl Insulated Male And Female Electrical Connectors FDFD Accessories Brass

We is a manufacturer and trade company of cable accessories ( Cable Tie, Cable Gland, Insulated Terminal, Cable Lug and so on). With a wide range, good quality, reasonable prices and stylish designs Our company provides the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.

Our company is committed to provide electrical products with the quality of "Safe, Reliable, Suitable and Steady", observes the commitment of "Leader in science and technology, Honest operation, Quality and Customer first", provides highest quality and the most sincere services for the new and old, domestic and foreign customers.
