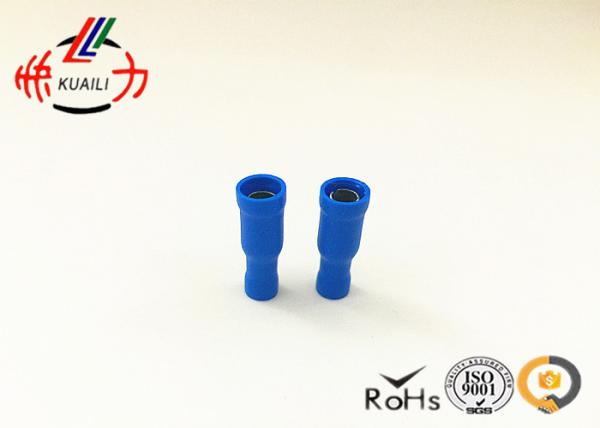

Female Insulated Wire Terminals Blue Bullet Crimp Connectors FRD2-156
Female Insulated Wire Terminals Blue Bullet Crimp Connectors FRD2-156
Specifications
Brand Name :
KUAILI
Model Number :
Crimp Terminal
Certification :
ROSH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, D/P, D/A, T/T,
Supply Ability :
100000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Type :
Fully insulation
Color :
Blue
Material :
Brass and PVC
AWG :
16-14
Description

Fully Insulated Female Bullet Terminal Wire Terminal Blue Crimp Terminal FRD2-156

We warmly appreciate your positive feedback. We value our customers so much.If you have any problem, please feel free and don't hesitate to contact us by email immediatedly , we are always there to offer help.

Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )Imax = 15A
Item No Thickness Dimension(mm) color
bΦ BΦ DΦ F L blue
FRD 2 - 156 0.4 4 6.3 2.3 14 24.5
FRD 2 - 195 0.4 5 7 2.3 14 24.5

Female Insulated Wire Terminals Blue Bullet Crimp Connectors FRD2-156

FEATURES:

1) Material: High conductivity copper. Nylon.

2) CE.ROHS.

3) Copper Insulated Female Bullet Terminal Ends is in compliance with the demands of a majority of end user's.

4) Vinyl bullet terminals are the most economical insulated bullet terminal connector available. The PVC insulation sleeve is securely fastened to the butted seam barrel. The insulation has a flared entry for easier wire insertion.

5) Smooth edges.

6) We manufacture, supply and export high quality copper insulated bullet type terminal ends that meets the reuirements of machine industries.

7) High tensile strength, excellent performance and reliability. Available in various sizes.

8) This also comply with electrical specification are in accordance with the general requirement's.
