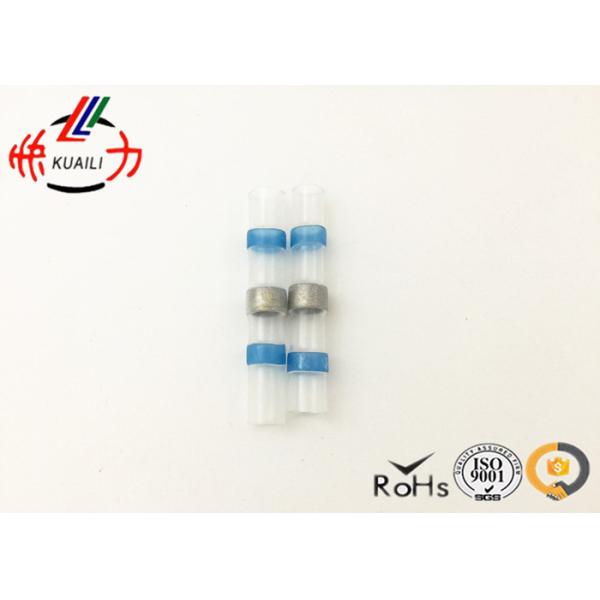

Solder Seal male female wire connectors / female quick connect terminals
Solder Seal male female wire connectors / female quick connect terminals
Specifications
Brand Name :
KUAILI
Model Number :
SST-S11/SST-S21/SST-S31/SST-S41
Certification :
ROSH
Place of Origin :
China
MOQ :
1PCS
Price :
consult
Payment Terms :
L/C, D/P, D/A, T/T,
Supply Ability :
1000+set+week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Color :
White Red Blue Yellow
Material :
Solder Seal Wire Connector
Gender :
sleeve type
Solder completely melt temperature :
150℃
Feature :
Waterproof
Description

Solder Seal Heat Shrink Butt Connectors Terminals Copper Solder Seal Wire Connector Solder

Descriptions:
100% brand new and high quality
An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation

1.Heat shrinkable tubing
2. Low temperature solder sleeve
3. Waterproof hot melt adhesive

Shrinkage ratio 2:1
Waterproof for wiring splices
Transparent sleeve provides precise inspection
Easy control soldering process
MEET RoHS

Operating Temperature Range
Operating Temp. -55℃ ~ 125℃
Minimum Shrink Temp. 60℃
Minimum Fully Recover Temp.110℃
Starting temperature of solder melt : 138℃

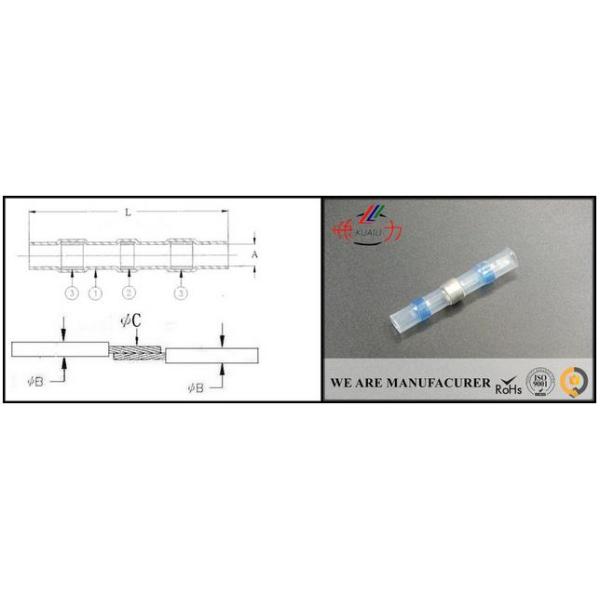

Product Dimensions(mm) Wire Dimensions(mm) Wire Standard
Number A (min.) L B B and C C A.W.G Color
(min.) (min.) (max) (min.) (mm2)
SST-S11 1.7 26 1 1.7 0.76 26-24(0.25-0.34) white
SST-S21 2.7 40 1.4 2.7 1.2 22-18(0.5-1.0) Red
SST-S31 4.5 40 2.3 4.5 2 16-14(1.5-2.5) Blue
SST-S41 6 40 3.7 6 3.4 12-10(4.0-6.0) Yellow
