UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
UTP / FTP / SFTP Wire Lan Cable Twisting Machine Core Wire Stranding Machine
Specifications
Brand Name :
HOOHA
Model Number :
630/800/1000
Certification :
CE ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,L/C
Supply Ability :
20 sets/month
Delivery Time :
30 working days
Packaging Details :
plastic or wooden packing
Electricity brand :
German brand
Technician :
install,debug,training
Technical support :
yes
Exported experience :
12 years
Certificate :
ISO,CE
Color :
Gray/Blue
Inverter :
YASKAWA
Single wire OD(mm) :
Φ0.5-Φ3.0
Pay-off bobbin size(mm) :
Φ500
Description

MORE INFORMATION

Youtube: https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
https://www.youtube.com/channel/UCKBDFWwJ8fuEs6P6T6CNF6g
Products Description
Application:
The machine mainly apply to multiple cabling of data cable , HDMI wire cable , power cable ,naked copper wire (fine wire ), shielding layer cable , control cable , etc .
HOOHA Cantilever type single stranding machine
Machine model HH-630 HH800
Single wire OD Ф0.5-Ф3.2mm Ф0.8-Ф3.0mm
Max stranding OD Ф12mm Ф20mm
Traverse pitch 2-12mm 3-20mm
Speed Max800rpm Max600rpm
Twisting pitch 20-200mm 20-300mm
Pay-off Bobbin size Ф500mm Ф500-Ф630mm
Take-up bobbin size Ф630mm Ф800mm
The Wire Samples
Details Images

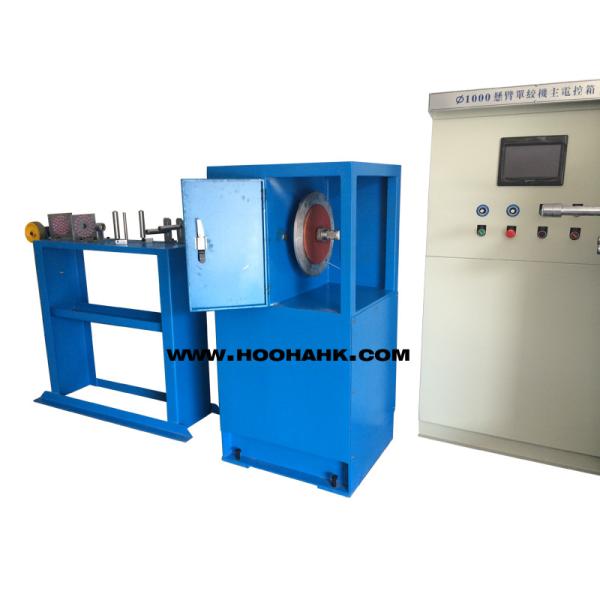

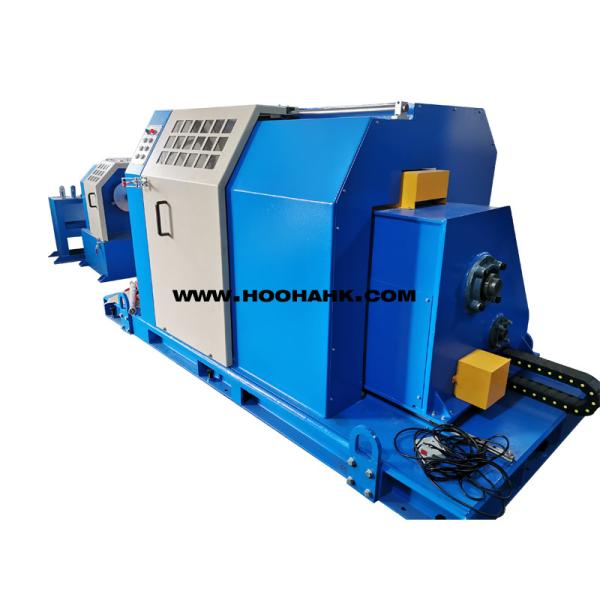

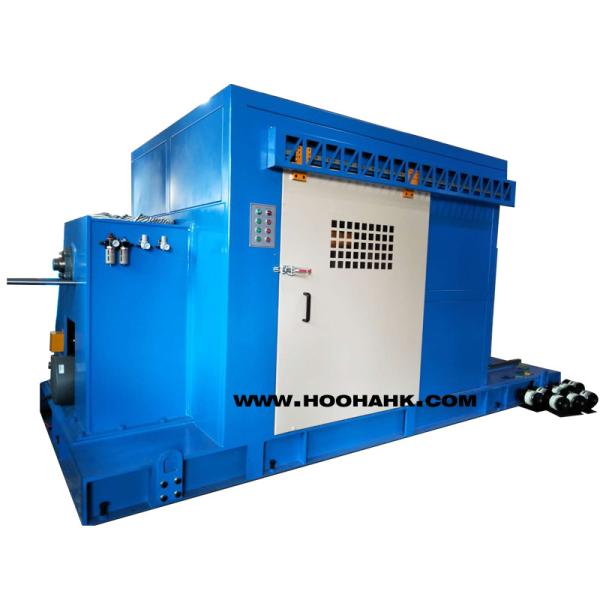

Mainframe

The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.

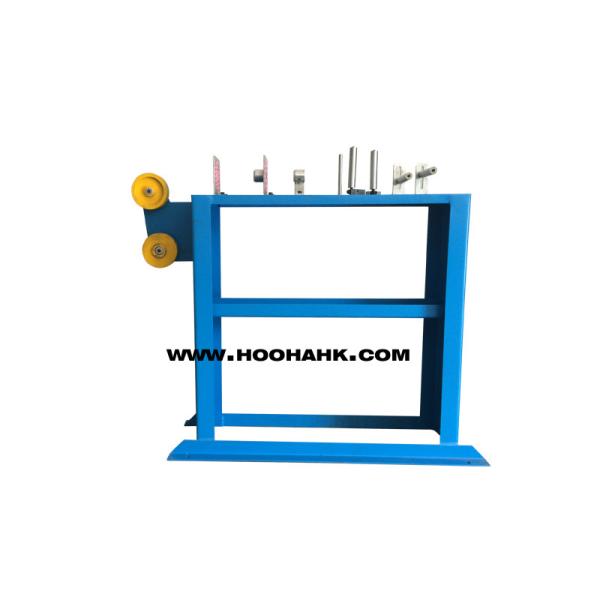

Straightening unit and PLC

1.For straightening the core cable as much as possible with multiple .
2.For controlling the parameters of the manufacturing process , such as temperature , speed , etc .
Company Profile
Dongguan Huha Electrical machinery Co., LTD
Our aim:
To be a world-class supplier providing wire & cable manufacturing and using solution.

Our vision:
To make wire & cable manufacturing and using more humanized.

Our target:
More professional customer service, struggle for employees’ dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable
solutions and die casting products.
Now we are continuously updating our technology, making great effort to keep improving our design level and R & D strength to
provide customers with more superior cable and die casting solutions.
00:03
02:00
Product packaging

The plastic+wood packing

1.The usually packing way is plastic packing

The wood packing

1.The wood package will according to the customer's inquiry then design to wood packing

The fixed by steel or tap

1.The machine will fixed by the steel rope and Tap in the container
Why Choose Us

The quality and service system

1.10 years export experience will support our client
2.The payment way more choice
3.The delivery control by engineer team more on time
4.The quality system control by engineer more reach our clients target
5.The after service more humanization from HOOHA team

The supplier chain experience

1. Save your time on the project
2.More humanization solution for the project running
3.16 years professional on the cable making solution supplier chain more competition price
4.20 years working experience engineer team guide your cable making solution more safety and quick.
Exhibition
Shanghai fair 2014
1.The power cable making solution
2.The Fep cable making solution
3.The data cable making solution
4.The network and lan cable making solution
5.The auto cable making solution
Certifications

MIC field certification

1.HOOHA SGS field certification 2019 2.HOOHA quality and service is close to HK service standard

HOOHA HK certification

1.HOOHA HK support hooha business booming and working more efficient with our clients

HOOHA each year Company commercial certification

1HOOHA Company commercial certification
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
