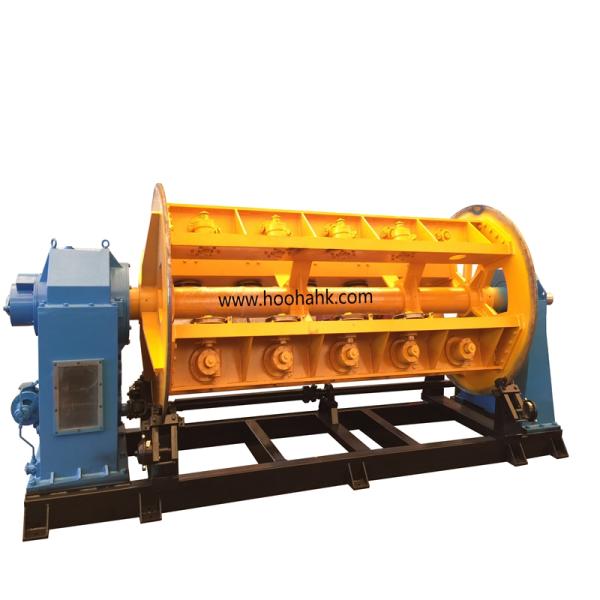

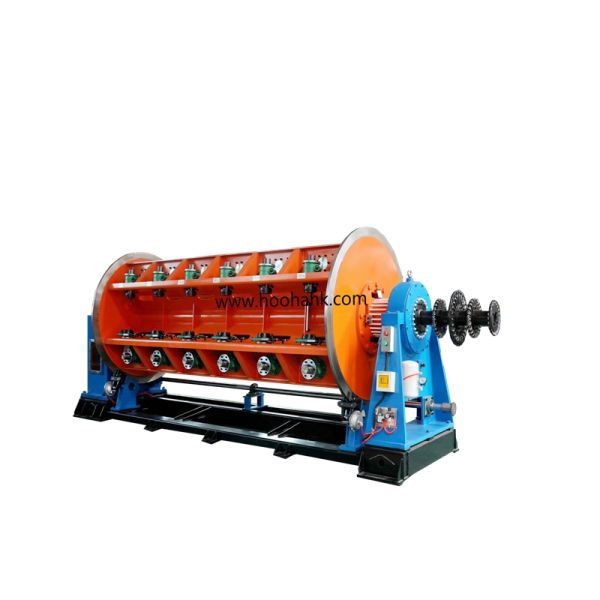

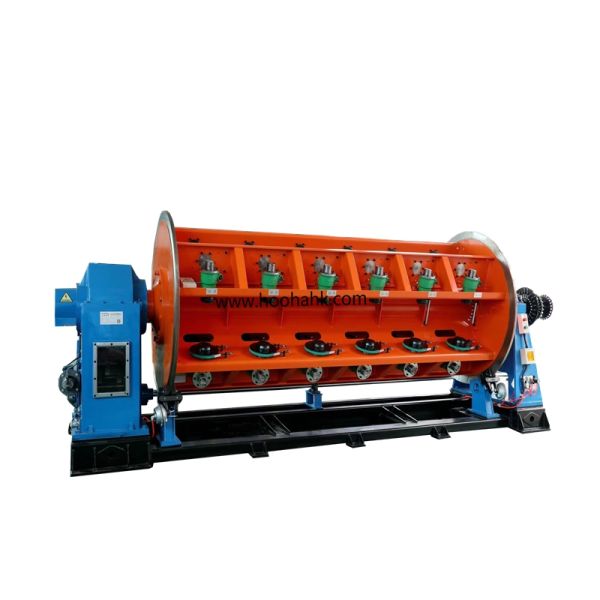

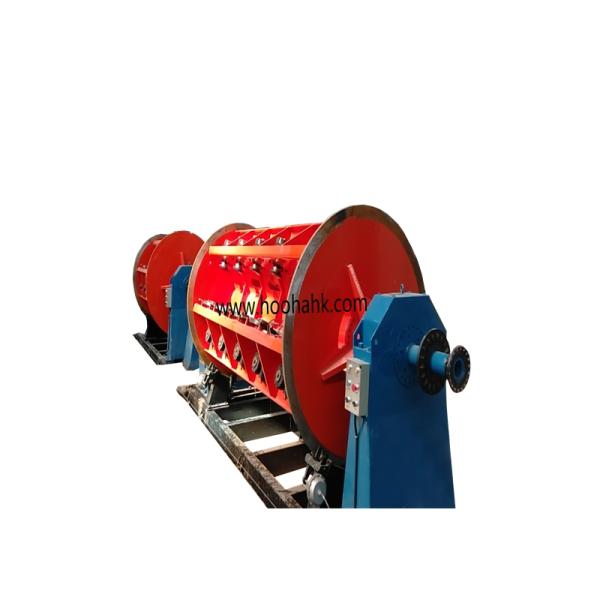

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
Specifications
Brand Name :
HOOHA
Model Number :
HH-S-500-1+6+12
Certification :
CE,ISO,SGS
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets/year
Delivery Time :
60 working days
Packaging Details :
1. film packing 2. wooden package 3.enclosed wooden package
Single wire Diameter :
Φ 1.5 - Φ 5mm
Max stranded Diameter :
Φ 36mm
Max cage rotate speed :
6B:190RPM 12B:175RPM
Capstan wheel diameter :
Ф1600mm
Central pay-off bobbin :
Ф500mm
Pay-off bobbin in cage :
Ф500mm
Take-up bobbin :
Ф1600mm
Main motor power :
30KW,AC,380V,50Hz
Stranding pitch range :
44-850mm
Central height of machine :
1500mm
Description

Wire And Cable Making Machine With 500-1+6+12 Rigid Frame Stranding Machine

Product Description

1. Application of Rigid Frame Stranding Machine

This machine is mainly used for stranding copper and aluminum wires with 1+6+12 structure.

It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine

2. General Parameters of Rigid Frame Stranding Machine

No. Items Features
1 Single wire Diameter Φ 1.5 - Φ 5mm
2 Max stranded Diameter Φ 36mm
3 Max cage rotate speed 6B:190RPM 12B:175RPM
4 Capstan wheel diameter Ф1600mm
5 Central pay-off bobbin Ф500mm
6 Pay-off bobbin in cage Ф500mm
7 Take-up bobbin Ф1600mm
8 Main motor power 30KW,AC,380V,50Hz
9 Stranding pitch range 44-850mm
10 Central height of machine 1500mm

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine

3. Components of Rigid Frame Stranding Machine

No. Items Quantity Reference Photo
1 Φ 500mm Manual type pay-off 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
2 500/6+12 Bobbins cages 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
3 Side loading system for each cage 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
4 Wire-stranded mould stand 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
5 Wire-stranded and Wire-compacted mould stand 1 Group 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
6 Meter counter 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
7 Φ 1600mm Double capstan wheels 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
8 Φ 1600mm Column type take-up with traverse 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
9 Transmission system 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
10 Electric control system 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
11 Safe fence 1 Set 30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine

4.Standard Accessories of Rigid Frame Stranding Machine

(1) Toolkit 1 Set

(2) Operating instruction 1 Set

(3) Drawings 1 Set

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine

5.Layout of Rigid Frame Stranding Machine

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine

6.Wires samples of Rigid Frame Stranding Machine

30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine30KW Wire And Cable Making Machine , 50Hz Rigid Frame Stranding Machine
