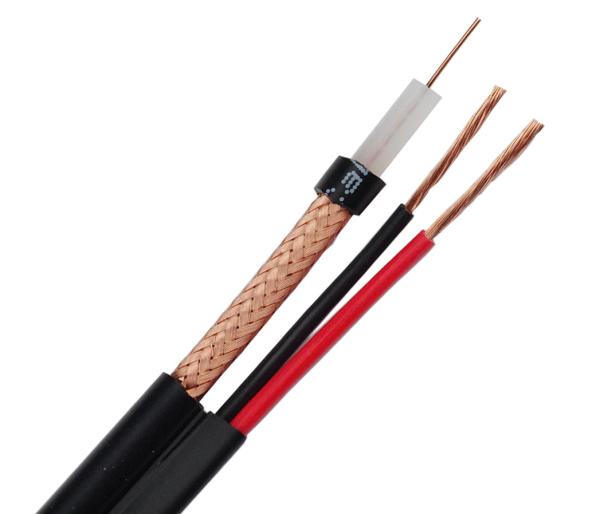

RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
RG59 coaxial cable with power CCTV Cable RG59 2c Siamese Manufacturer Rg59 CCTV Cable
Specifications
Brand Name :
HOOHA
Model Number :
HH-59+2c
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
10000meter
Price :
0.8USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000000km/month
Delivery Time :
30
Packaging Details :
drum packing
Model :
HH-59+2Power
Insulation Material :
PVC, FPE
Number of Conductors :
3
Shield Material :
Al/Copper Foil
Jacket Material :
PVC/PE/LSZH
Foil :
Al/ Copper Foil
Type :
CCTV Cable
Inner conductor :
0.81mm
Power :
18AWG
Braid Material :
Al/CCA/Copper
Description
Product Description
Product name
RG59+2C

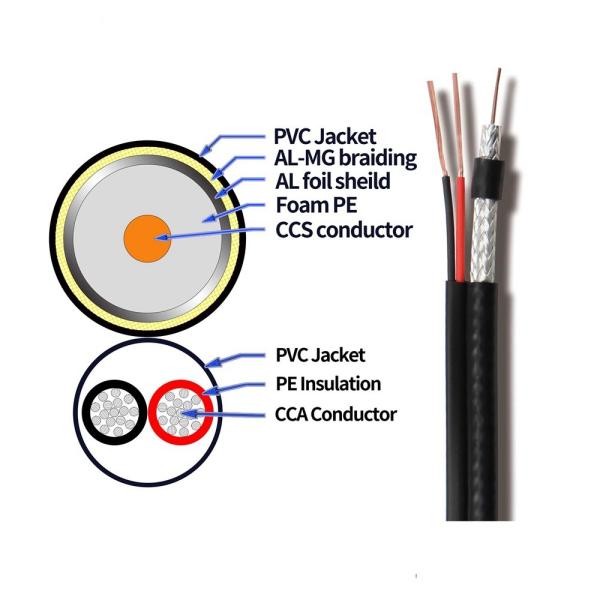

Structure
Material
Diameter(mm)
Inner conductor
CCS/Copper
0.81
Insulation
FPE
3.66
Shield
Al/Copper Foil
100%
Braid
Al/CCA/Copper
40-95%
Jacket
PVC/PE/LSZH
6.10
Power wire conductor
Copper/CCA
18AWG
Insulation of Power wire
PVC/PE
2.00
(Mini) RG59 + 2 power
Inner conductor
(0.58mm / 0.81mm) BC/CCS
Insulation
(2.0mm / 3.7mm) Solid PE / Foam PE
Shield
Aluminum foil
Braid
Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage :
40%~96%
Jacket
(3.5mm / 5.9mm) PVC
Color
Black /White or as per customer's requirement
Power cable (have 2.5mm²/ 0.5mm²/ 0.75mm²/ 1.0mm²),18 AWG
Inner conductor
(14*0.15mm/ 16*0.2mm/ 24*0.2mm) Stranded Bare Copper
Insulation
(1.25mm/ 1.8mm/ 2.0mm) PVC
Over jacket
(3.5*3.5mm / 6.0*3.5mm) PVC
Length
100m/ 200m/ coil/ cardboard reel/ wooden reel/ or as per customer's requirement.
tem
RG59 with power elevator cable
Category
elevator cable
Structure
Type
RG59
Conductor
BC
Pair
Multi-pair
Solid/Stranded
Stranded
Insulation
Material
White Foam PE
Power cable
Size
2*1mm
Inner Jacket
Material
PVC
Outer Jacket
Material
PE
Steel Rope
Diameter
2*19*0.2mm
Color
Black
Size
customized
Reference Standard
UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature
-20°to +75°
Supports Transmission
Digital and analogue voice, data and video signal
Application
Elevator power cable
Electrical Characteristics
Impedance (Ω)
75
Nominal Capacitance (pF/m)
50
Velocity of Propagation(﹪)
85
Sparker Test
4000
SRL(dB)
20
Attenuation (@20℃)
Frequency (MHZ)
Max Attenuation (dB/100ft)
Max Attenuation (dB/100m)
5
0.86
2.82
55
2.05
6.73
300
4.45
14.60
600
6.20
20.34
1000
8.12
26.64
1450
9.88
32.41
1800
11.81
38.72
2200
13.05
42.78
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Hooha
Model Number
HH-59
Conductor Material
Copper
Insulation Material
PVC
Jacket
PVC
Number of Conductors
3
Application
CCTV
Conductor Material
Copper
Inner conductor
0.81mm
Insulation Material
FPE
Shield Material
Al/Copper Foil
Braid Material
Al/CCA/Copper
Jacket Material
PVC/PE/LSZH
Power
18AWG
Foil
Al/ Copper Foil
Color
Customermized
Type
CCTV Cable/Siamese Cable
Company Profile
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Customer Cases
Dubai
Tanzania
Algeria
Thailand
Certificates and Exhibitions
India Exhibition
Moscow Exhibition
ShangHai Exhibition
The Technical Team
Packing & Delivery
1. Film packing
2. Wooden package
3. Enclosed wooden package
