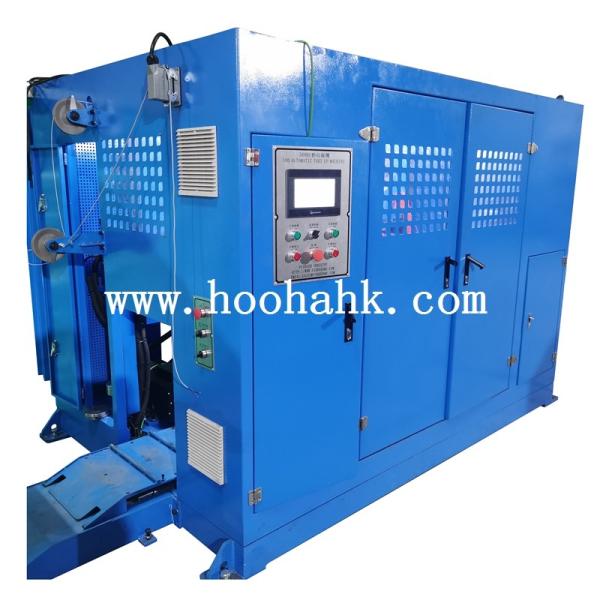

DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
Specifications
Brand Name :
HOOHA
Model Number :
HH-E
Certification :
ISO/CE
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
US $10,999.00-＄14,999.00/1set
Payment Terms :
L/C, T/T
Supply Ability :
100sets/1 month
Delivery Time :
40 Working Days
Packaging Details :
plastic package
Function :
Extruding
Brand Name: :
HOOHA
Bearing :
Japan-NSK
Warranty :
1 Year
Control Box: :
International Standard
Certificates :
CE/ISO
Color :
Customized Color
Screw Design: :
Single-screw
Screw Material:: :
38crmoala with Nitrided Surface
Electric Element:: :
Siemens and Omron
Description
Product Description

Application:

It’s used for the insulation of wire &cable with PVC,LDPE,NYLON,TPU. Also it can be equipment with triple co-extrusion cross-head and double layer.
Diameter of screw rod
65mm
Ratio of length and diameter
L/D＝24/1
Rotation speed of screw rod
50～140rpm
Max. working pressure
400bar
Heating power
10KW
Main motor
DC 30kW
Total weight:
about 13000KG
Dimension:
(L×W×H)36000×3000×340mm
Capacity of hopper drier
50kg: Heating 4Kw
Capacity of color base mixe
5L
Suitable raw material :
A.Low oxygen or oxygen–free round copper wire (cu). The maximum inlet diameter is 3.0mm.
B.Insulation material : PE/PVC/PP/HFFR
Max Inlet Dia.
Ф2.60mm
Outlet Dia.
Ф0.40～0.mm
Max.machanical Speed
1800 m/min
Max quantity of Dies
17
Out Dia of Dies
25mm
Mechanical Elongation
Last die18.6%；Others 25%；
Max Drawing wheel Dia.
Ф250mm
Capstan Wheel Dia.
Ф250mm
Main motor Power
DC 55 kw
Size
2400×1070×140mm
Weight
3200kg
Specifications
Max mechanical speed
1800m/min
Suitable dimension of spool
F500×F250×F56×250㎜
Max capacity of spool
70kg
Dynamic balance level of winding spool
International standard G6.3
Winding motor power
DC 11kW
Traverse motor power
AC 0.2kW Speed reduction motor
Spool-conveying motor power
AC1.5kW
Motor of power of traverse device
AC 0.4kW Speed reduction motor
Protection cover motor power
AC 0.4kW Speed reduction motor
Wire catching rate
≥95％
The Wire Samples
Configuration of hard ware
1)DC speed regulator is digital type product of PK brand.
2)Programmable controller is product of Japanese Mitsubishi company.
3)Temperature controller is product of Japanese RKC company.
4)Low-voltage electric appliances (air switch, contactor) are products of Japanese Fujitsu company.
5)Industrial control machine is Taiwan product.
Company Profile
Hu Machine Designer
20 years engineering design experience
Bi Leading Engineer
Responsible for project engineering
Chen Senior Engineer
Machine design for 30 years
Professional and Strong Manufacture and Sales Team
Name
Education
Position
Mainly responsible for project
Specializing in project
working year
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15 years
xiaohua Hu
college
Vice- general engineer
The total project design and planning
net cable,data cable machine
10years
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25 years
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15 years
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16 years
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15 years
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7 years
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10 years
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10 years
haipin Li
University
Engineering director
Marketing and sales
project consulting
8 years
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5 years
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Certificates and Exhibitions
Customer Cases
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2017
* HOOHA products sell to
Africa(17.00%)
Mid East(17.00%)
Southeast Asia(16.00%)
Eastern Asia(13.00%)
South Asia(10.00%)
South America(8.00%)
Eastern Europe(4.00%)
North America(3.00%)
Northern Europe(3.00%)
Southern Europe(3.00%)
Oceania(2.00%)
Western Europe(2.00%)
Central America(2.00%)
2.What can you buy from us?
Drawing Machine
Cabling Machine
Bunching Machine
Stranding Machine
Extrusion Machine
Wrapping and Packing machine
3. How can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
4. What services can we provide?
Accepted Delivery Terms:
FCA,FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:
USD,EUR,CNY
Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:
English,Chinese,Cantonese
5. What are our advantages over other suppliers?
10 year R&D working experience with over sea service
5 big LV/MV cable project over 5 million working experience
After service team has 30 country working experience
HOOHA team focus on the cable making and use solution supply chain.
