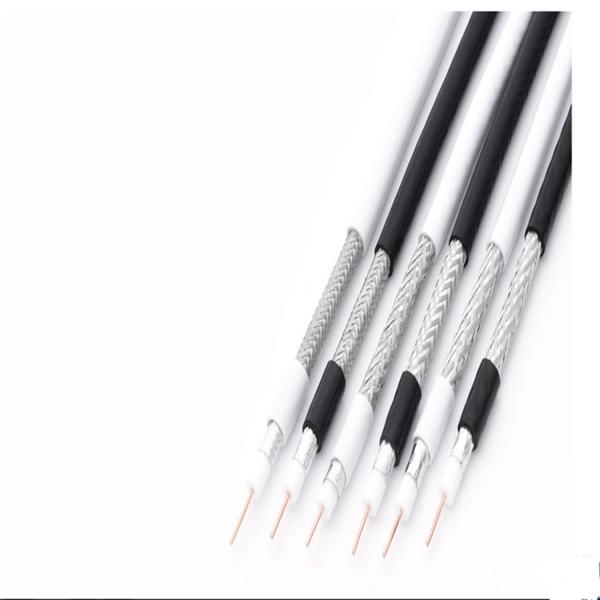

FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
Specifications
Brand Name :
HOOHA
Model Number :
RG6
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
10000 M
Price :
0.4 USD/M
Payment Terms :
L/C, T/T
Supply Ability :
500 Million Meters Per Year
Delivery Time :
15 Working Days
Packaging Details :
Wrapped with PE film, packed in carton
Number of Conductors :
1
Inner Conductor :
1.02 Bare Copper / CCS
Outer Conductor :
Al Foil +70%, 90%, 95% Braid
Braid Material :
Al-Mg, CCA, Bc, Tc
Insulation :
4.80
Outer Jacket :
6.80 - 7.0mm PVC/PE
Description

High Quality Durable RG6 Coaxial Cable for Outdoor CATV CCTV System


Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems.

Model Number : RG6 Coaxial Cable
Number of Conductors : 1
Type : Coaxial
Model : RG6
Certification : CE/RoHS
Inner Conductor : 1.02 Bare Copper / CCS
Dielectric : 4.57- 4.80mm FPE
Out Conductor : Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC
Out Jacket : 6.80 - 7.0mm PVC/PE
Color : White, Black or Customized
Connector : F connecor or BNC

FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System

FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System

Construction & Performance

Construction Conductor Material Copper Clad Steel
Diameter(mm) 1.0±0.02
Insulation Material Foaming PE
Diameter(mm) 4.80±0.10
Outer Shield Material AL foil+AL/mg wire braiding
Density 61%
Diameter(mm) 5.40±0.10
Performance Minimum Bending Radius mm 34(indoor)
Minimum Bending Temperature ºC -10
Storage Temperature ºC -10~+75
Installation Temperature ºC -10~+50
Operating Temperature ºC -10~+75

FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
Electrical Properties

Capacitance pF/m 45±2
Velocity % 86
Insulation Resistance MΩ·km >5000
Cut-off Frequency GHz 3
Insulation withstand Voltage KV 1
Jacket Spark Voltage KV 2
Attenuation (dB/100m) 50MHz ≤9.0
100MHz ≤10.8
200MHz ≤11.8
800MHz ≤19.00
1000MHz ≤20.0
Shielding Effectiveness (dB) 55MHz ≥55
300MHz ≥60
1000MHz ≥65
Return Loss (dB) 5~470MHz ≥20
470~862MHz ≥20
862~2200MHz ≥18



Packaging & Delivery

Packaging Details :Can be packed in clarity film, several rolls into one carton.

FPE Dielectric RG6 Coaxial Cable For Outdoor CATV CCTV System
