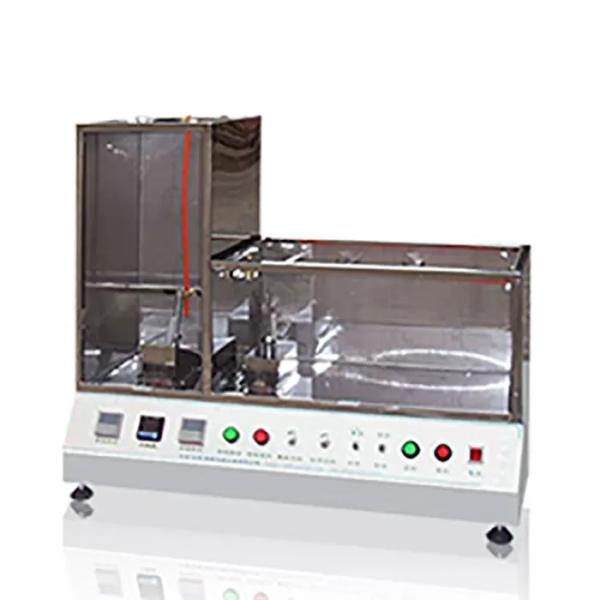

UL444 Vertical Horizontal Combustion UL1655 Cable Testing Machine
UL444 Vertical Horizontal Combustion UL1655 Cable Testing Machine
Specifications
Brand Name :
HOOHA
Model Number :
ZY6291
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
3000-80000USD/PC
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10set/1 month
Delivery Time :
25-35Working Days
Packaging Details :
Wood, plastic as customer requiry
Power Supply :
AC380V 50/60Hz 30A
Warranty :
12 Months
Payment :
TT 90% Advance, 10% Before Delivery
color :
customized
Adopt Standard 1 :
GBT17651
Adopt Standard 2 :
Iso834-1-1999
Adopt Standard 3 :
GB/T9978.1-2008
Adopt Standard 4 :
UL444
Adopt Standard 5 :
UL1655
Description

UL444 ZY6014 Wire Testing Tools Vertical Horizontal Combustion UL1655 Approved

Scope of application:

Suitable for all kinds of wire and cable insulation coating material, printed circuit boards, IC insulation resistance to combustion of organic materials such as test. Test, the specimen for the top of the flame, burning for 15 seconds, put out in 15 seconds, repeat 5 times after examining the specimen was burning, and it can be set, and extinguished repetitions, and automatic operation.

Meet the standard:

VW-1 and CSA FT-1 standard of UL1581. UL444.UL1655.

Main parameters:

(1) Vertical combustion box: according to the UL1581 standard size, the internal dimension is 305*355* 610mm.

(2) Horizontal combustion chamber: according to the standard size of UL1581, the internal dimension is 305*355* 610mm.

(3) Vertical spark nozzle: nozzle Angle is 20 degrees, with gas control valve.

(4) Horizontal spark nozzle: nozzle Angle is 90 degrees, with gas control valve.

(v) Vertical or horizontal nozzle selection mode.

(6) Select manual/automatic mode.

(7) When the preset data is reached, the machine will stop the test automatically.

(8) Fuel: methane. Methane (customer's own)

(9) Test length: 300mm (level), 457mm

Timely delivery
Based on our rigorous delivery system,our shipments are very timely and the process is very systematic.

Factory & Workshop &Warehouse
Dongguan Jinju Machine Co., Ltd is HOOHA Company Limited factory, which was established in 1998,with full experience on wire and cable machinery manufacturers in Dongguan,China.
Due to international market developing,we expanded the space from 2000 sq meters to 8000 sq meters
UL444 Vertical Horizontal Combustion UL1655 Cable Testing Machine

Company name HOOHA Co.,Ltd
Established 2003
Main products Upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 8000 sqm
Showroom More than 2000 sqm.


UL444 Vertical Horizontal Combustion UL1655 Cable Testing Machine
