Wire And Cable Machine Cu Breakdown With Coiller 25m/s
Wire And Cable Machine Cu Breakdown With Coiller 25m/s
Wire And Cable Machine Cu Breakdown With Coiller 25m/s
Wire And Cable Machine Cu Breakdown With Coiller 25m/s
Specifications
Brand Name :
Herrman
Model Number :
HM450-9, HM450-11, HM450-13
Certification :
CE, SGS, ISO
Place of Origin :
Anhui, China
MOQ :
1 set
Price :
USD300,000 / set
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
30 Sets per year as per request
Delivery Time :
4 month upon receipt of deposit
Packaging Details :
Plastic Film Packing
Input dia. :
Φ8mm rod
Output dia. :
Min. Φ1.3mm
Motor power :
250kw(AC)
Linear speed :
25m/s
Converter :
SIEMENS/ABB/YASKAWA
Motor :
SIEMENS/ABB
Description

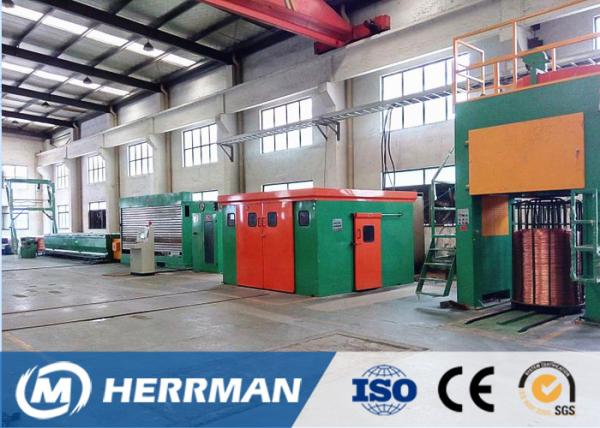

Wire and Cable Machine Cu Breakdown Machine with Coiller

1. Application

This machine is mainly used for drawing the Φ8mm copper rod to Φ1.4~4.5mm copper wire and continuous annealing.

2. Main Feature

2.1 Convenient operation and quick changing dies.

2.2 Full immerging or spray for dies and capstans to ensure an effective cooling and lubricating upon wires.

2.3 The drawing capstans are mounted in one row, easy for threading wire.

3. Main Technical Specification

Model HM450-13 HM450-11 HM450-9
Inlet rod dia. Φ8mm Φ8mm Φ8mm
Outlet wire dia. Φ1.3~Φ4.5mm Φ1.6~Φ4.5mm Φ2.1~Φ4.5mm
Max. mechanical speed 25m/s 25m/s 25m/s
Drawing wheel dia. Φ450mm Φ450mm Φ450mm
Drawing motor 250kw 220kw 200kw
Fixed speed wheel motor 75kw 75kw 75kw
