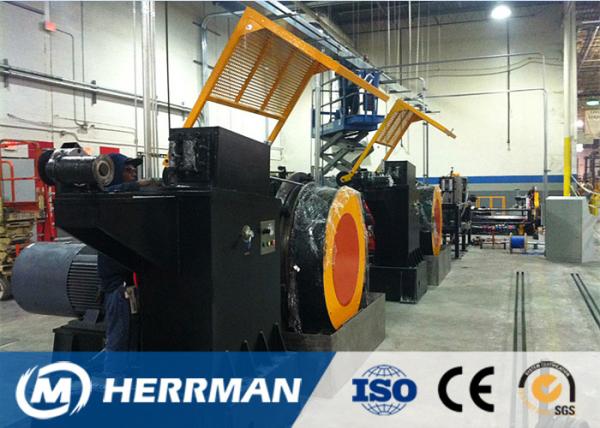

Large Cross Section Copper Alloy Wire Drawing Machine
Large Cross Section Copper Alloy Wire Drawing Machine
Specifications
Brand Name :
Herrman
Model Number :
1000/5
Certification :
SGS, CQC, CE, ISO
Place of Origin :
Anhui, China
MOQ :
1 line
Price :
by Negotiation
Payment Terms :
L/C, T/T, D/P, D/A, O/A
Supply Ability :
22 Sets Per Year
Delivery Time :
5 month upon receipt of deposit
Packaging Details :
Plastic film package
Description :
Large Cross Section Copper Alloy Shaped Wire Drawing Machine
Application :
Shaped Copper Wire
Motor :
SIEMENS or ABB
Bearing :
NSK or SKF or Chinese famous brand
PLC :
SIEMENS S7
Converter :
SIEMENS or ABB
Description

Large Cross Section Copper Alloy Shaped Wire Drawing Machine

1. Introduction

The machine is use for drawing the copper or copper alloy contact wire which used in the electrified railway, input wire size 20~22mm rod and output wire size is 10.8~14.4mm.

2. Main Feature

2.1 Adopt inside and outside water circulation system to cool the drawing capstan. The sufficient cooling avoid the wire overhead and improve the drawing speed effectively.

2.2 The surface of drawing capstan is painted with tungsten carbide and processed by grinding treatment, which guarantee the long service life of drawing capstan.

2.3 Every drawing capstan is driven by individual motor. Dies arrangement is flexible.

3. Main Technical Data

Type 1200/1+1000/4 1000/4
Inlet Wire Dia.(mm) 20~22 20
Outlet Wire Dia. (mm) 10.8~14.4mm 10.8~14.4mm
Section Elongation 20~47% 20~47%
Max. drawing Speed(m/min) 60 60
Motor power 1 pc of 75kw, 4pcs of 55kw 1 pc of 75kw, 3pcs of 55kw
Ratio of reducer 80~200 80~140
Pay off reel 2000 2000
Take up reel 2000 2000
