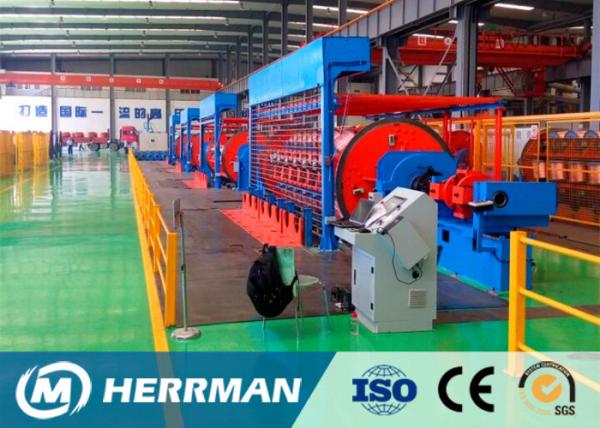

Rigid Type Cable Armouring Machine
Rigid Type Cable Armouring Machine
Rigid Type Cable Armouring Machine
Rigid Type Cable Armouring Machine
Specifications
Brand Name :
Herrman brand
Model Number :
630MM
Certification :
ISO9001:2015,CE
Place of Origin :
China
MOQ :
1set
Price :
By Negotiation
Payment Terms :
L/C, T/T, D/A, D/P，By Negotiation, Western Union, MoneyGram
Supply Ability :
10 sets per 1 month
Delivery Time :
80 working days
Packaging Details :
EXPORT PACKING
Name :
Rigid Type Armoring Machine
USAGE :
Use for Cable armoring
Clamping type :
Pneumatic、 Motor clamping、 Manual Clamping
Reel Size :
400,500,630,710,800 （mm）
CU wire dia. Al wire dia. :
1.2~5.0 mm 、 1.8~5.0
Motor :
Siemens bramd
Description

Rigid type armoring machine

1.Description

Rigid type armoring machine is used for steel wire armoring of power cable.

2.Main Technical Specification

2.1 Reel Size: 400mm,500mm,630mm,710mm,800mm

2.2 Ree QTY of Singe cage: 6B- 48 bobbin

2.3 Clamping type : Pneumatic , Motor clamping,Manual Clamping

2.4 Tension control: Hysteresis , Mechanica, Mechanical with feedback,Pneumatic tension control

52. Reel Loading: Side-bottom Hydraulic loading, Side-bottom Electrical loading, Side loading

Main Specification

Reel Size Max. rotation speed(rpm) Wire dia.
6B 12B 18B 24B 30B 36B Aluminum Copper
500mm 273 225 198 173 151 120 1.8~5.0(mm)
242 199 175 153 133 96 1.2~5.0(mm)
630mm Normal 218 189 166 146 130 103 1.8~5.0(mm)
190 167 147 129 115 82 1.2~5.0(mm)
High speed 310 290 250 215 185 135 1.8~5.0(mm)
210 195 170 145 128 108 1.2~5.0(mm)

Drawing for reference

Rigid Type Cable Armouring Machine
