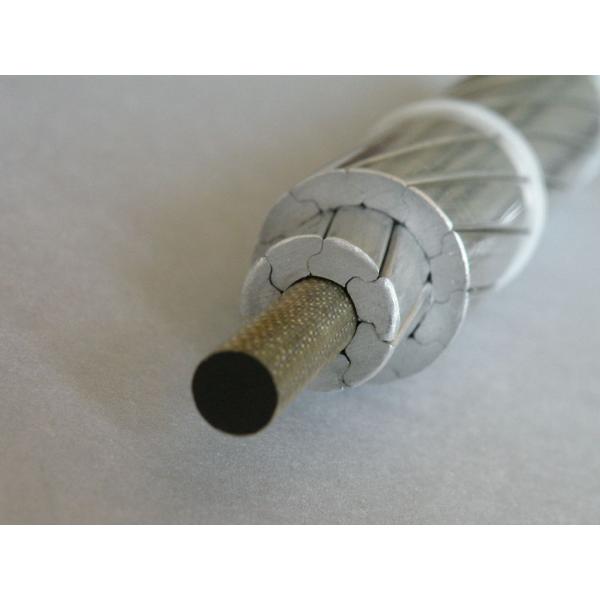

Composite Core Pultrusion Line Trapezoidal Wires Aluminum Conductor CE Certification
Composite Core Pultrusion Line Trapezoidal Wires Aluminum Conductor CE Certification
Composite Core Pultrusion Line Trapezoidal Wires Aluminum Conductor CE Certification
Composite Core Pultrusion Line Trapezoidal Wires Aluminum Conductor CE Certification
Specifications
Brand Name :
HERRMAN
Model Number :
Two Puller + Independent control
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
990000
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5SETS PER MONTHS
Delivery Time :
90 DAYS
Packaging Details :
EXPORT PACKING
model :
Two Puller + Independent control
name :
Aluminum Conductor Composite Core Pultrusion Line Trapezoidal Wires
certification :
CE
Maximum Pulling Force :
4 tons
Maximum Clamping Size :
100 mm wide, 80 mm high
Electric Drive Motor Power :
3.0 KW
Description

Pultrusion Machine Line for Composite carbon fiber core of Conductor

1. Pneumatic Caterpillar Pultrusion Machinery (Two Puller + Independent control )

Maximum Pulling Force 4 tons

Maximum Clamping Force, Each independent drive tractors.

Pulling Speed Range 0.3 ~2.0 m/min

Puller Pad Engagement Length 1500mm

Maximum Clamping Size: 100 mm wide, 80 mm high.

Puller with casting type polyurethane by layering surface hardness: 85 degrees.

Electric Drive Motor Power 3.0 KW.

Each machine line, automatic winding machine sharing a 0.3 m after gas storage bag, ensure the supplied compressed air pressure, volume stability.

Each machine line With mold import and export with exhaust device, ensure the scene without peculiar smell.

2. Each equipment equipment and parts list

Item No. DESCRIPTIONS TYPE Origin & Brand QNTY
1

Pneumatic Caterpillar Pultrusion Machinery

 HM-4TL 2
2 Parameter displayer with 12 inch Siemens Touch screen Siemens Siemens 2
3

Meters detector

 NMS-P Mingrui 2
4

Bidirectional diameter detector

 NDIA-2/W Mingrui 2
5 Mold platform (and the pull sensor) 2
6 Pull sensor 3Ton zhengdan 2
7 After heating oven 1000/50 6
8 Ink-jet printing -- 2
9

Inkjet printing bar code

 -- 2
10

Technology package speed

 -- 2
11 Exhaust device for Mold import and export NEX-M/E-C 2
12 Back glue make use of the control device N-B-RESIN 2
13 Heater N200/100 8
13

Thermocouple

“K” 9
14 Equipment independent dosage control device -- 2
15 Creel for Carbon & fiber Glass & within tensile control 120-C/F 2
16 Automatic Winding Machine 5000/800 2

Composite Core Pultrusion Line Trapezoidal Wires Aluminum Conductor CE Certification
